02 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10103406	Panel, Rear Console	$83.00 Special Order
2	WP8538959	Knob, Push-to-start	$34.20 Special Order
3	WP694419	Buzzer, Mini   (Replaces: 694419)	$86.10  In-Stock Retail: $83.91
4	W10820038	Cap, End (l.h.) (white)	$55.10 Special Order
	279964	Cap, End (l.h.) (black)	$2.70 Special Order
5	WP688805	Spring Clip   (Replaces: 688805)	$4.80  In-Stock Retail: $4.59
6	WP388326	Screw, Console (Replaces: 388326)	$4.80  In-Stock Retail: $4.59
7	WP693995	Screw, Hex Head   (Replaces: 693995)	$4.80 Special Order
8	W10820038	Cap, End (r.h.) (white)	$55.10 Special Order
	279964	Cap, End (r.h.) (black)	$2.70 Special Order
9	3395683	Housing, Connector (motor)	$36.20 Special Order
10	WPW10717210	Screen, Lint (white) (Replaces: W10641634 8558463)	$41.70  In-Stock Retail: $40.66
	8558465	Screen, Lint (black)	$67.20 Special Order
13	W11693756	Screw, 8-15 X 5/8	$8.70 Special Order
14	3400859	Screw, Grounding	$8.20 Special Order
15	WP8536939	Spring Clip (Replaces: 8536939)	$4.80  In-Stock Retail: $4.59
16	WP8563985	Top (white)   (Replaces: 8557930)	Call for Availability
	8557925	Top (black)	Call for Availability
17	3401671	Wire, Jumper (white)	$18.40 Special Order
	3401668	Wire, Jumper (tan)	$4.50 Special Order
18	3399638	Switch, Temperature	$90.50 Special Order
20	3347243	Connector 6-circuit	$35.50 Special Order
21	WP3979618	Timer, 60 Hz.	$209.30  In-Stock Retail: $204.13
23	WP3394427	Clip, Harness	$4.80  In-Stock Retail: $4.59
24	WP94614	Terminal (female)	$4.80 Special Order
29	WP90767	Screw,8-18 X 5/16	$4.80  In-Stock Retail: $4.59
30	WP357213	Nut, Push-in (2) (Replaces: 357213)	$4.80  In-Stock Retail: $4.59

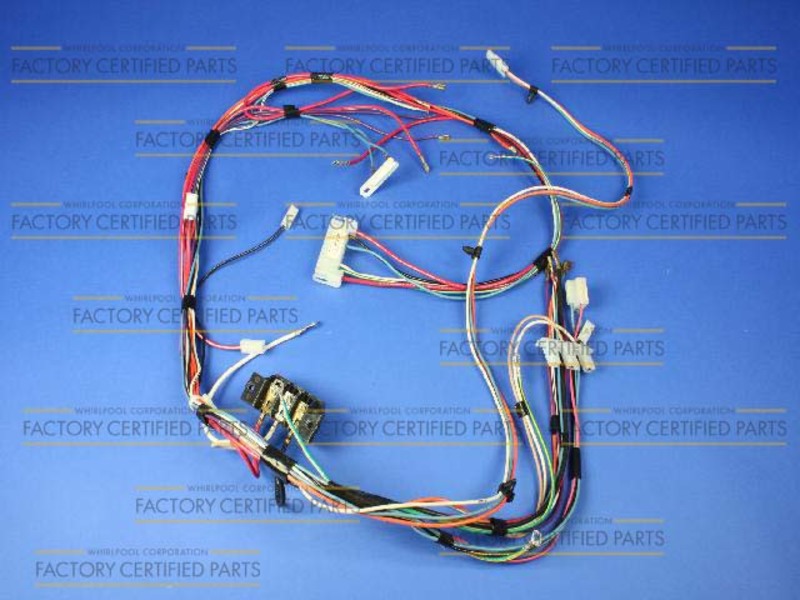

31	8576503	Harness, Wiring	$160.10 Special Order
32	8283286	Wire-jumper Assembly (temperature)	$51.40 Special Order

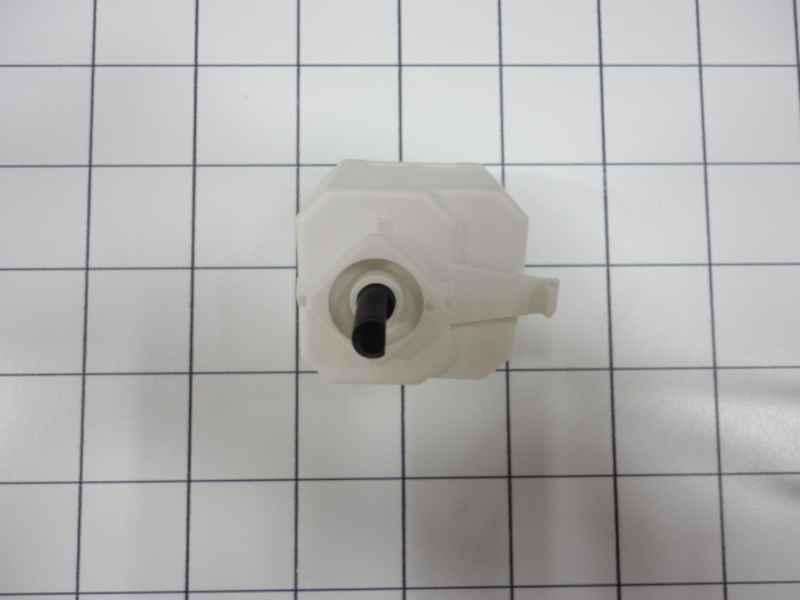

33	WP3398094	Switch, Push-to-start (Replaces: 3398094)	$73.70  In-Stock Retail: $71.83
34	3401144	Connector, (pts Relay)	$8.30 Special Order
35	3397269	Connector, Timer	$17.90 Special Order
36	WP8557455	Timer Knob Assembly (Replaces: 8538953)	$38.30 Special Order
37	WP8538957	Knob, Control	$38.90 Special Order
38	3936144	Connector	$13.70 Special Order
39	8271418	Bracket, Control	Call for Availability
40	8577342	Panel, Control	$113.60 Special Order
