Maytag AO27SE1 (BOM: P1132340N E) Parts List

Popular Searches: (Click to search)

Select a Diagram

01 - Cabinet

02 - Control Compartment

03 - Control Panel

04 - Door Latch

05 - Oven Components

06 - Oven Door

07 - Trim

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	307885B	Glass, Door (blk)	$36.70 Special Order
2	307886B	Frame, Oven Door (blk)	Call for Availability
3	31750432	Screw, No.8-18 X 3/8 P Hex Wsh T	$4.80 Special Order
4	Y0040955	Window Mtg. Brkt. Pk411	Call for Availability
5	314833CG	Liner, Door (cg)	Call for Availability
6	31975801	Insulation 2x20x72	$45.60 Special Order

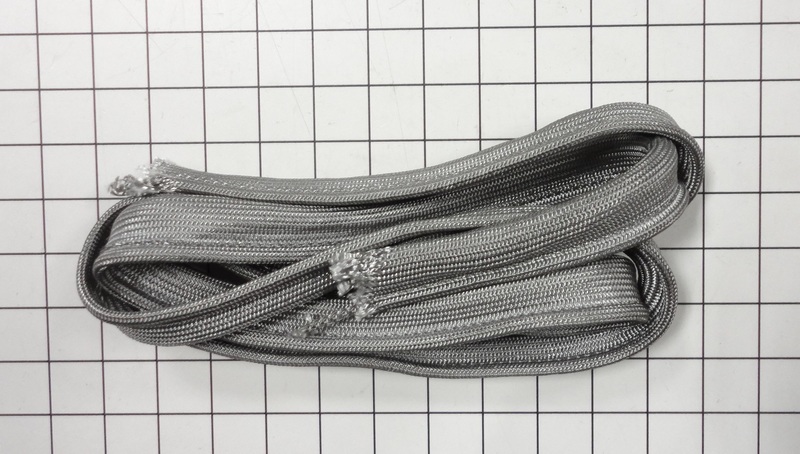

7	31715901	Gasket, Oven Dr 82``	$9.40 Special Order
8	40223CG	Backer, Oven Door (cg)	Call for Availability
9	W11245710	Screw, No.8-18 X 3/8 P Trs Hd Lp	$8.70 Special Order
10	Y052039F	Latch Plate	Call for Availability
11	0041491	Window Assy	$71.80 Special Order
12	308414B	Baffle, Inner Door	Call for Availability
13	W11164114	Screw, No.10-24x3/4 (pan Ph Hd)	$2.40 Special Order
14	32031101	Bushing, Handle	$3.10 Special Order
15	0307891	Bracket, Handle Mtg.	Call for Availability
16	R0759529	Spacer, Handle (blk)	$68.00 Special Order
17	307884B	Handle, Oven Door (blk)	$39.30 Special Order
18	305587B	Angle, Glass Support (blk)	Call for Availability
19	31750706	Screw, No.8 X .375 Wafer Hd(blk)	Call for Availability
NI	W11245710	Screw, No.8-18x.406-.344 Waferhd	$8.70 Special Order
	0300584	Label,cleaning Instr.	Call for Availability
