02 - Cooktop, Burner And Grate Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11100530	Instructions, Installation	Call for Availability
1B	W11100532	Instructions, Lp Conversion	Call for Availability
1C	W11100533	Guide, Use & Care	Call for Availability
1D	9762761	Tips, Safe Cooking (english)	Call for Availability
1E	W10065852	Tips, Safe Cooking (french)	Call for Availability
1A	8304571	Instructions, Undercounter	Call for Availability
2	WP8286502	Panel, Control (black)   (Replaces: 8286502)	$90.00 Special Order
2A	8286503	Panel, Control (white)	$190.90 Special Order

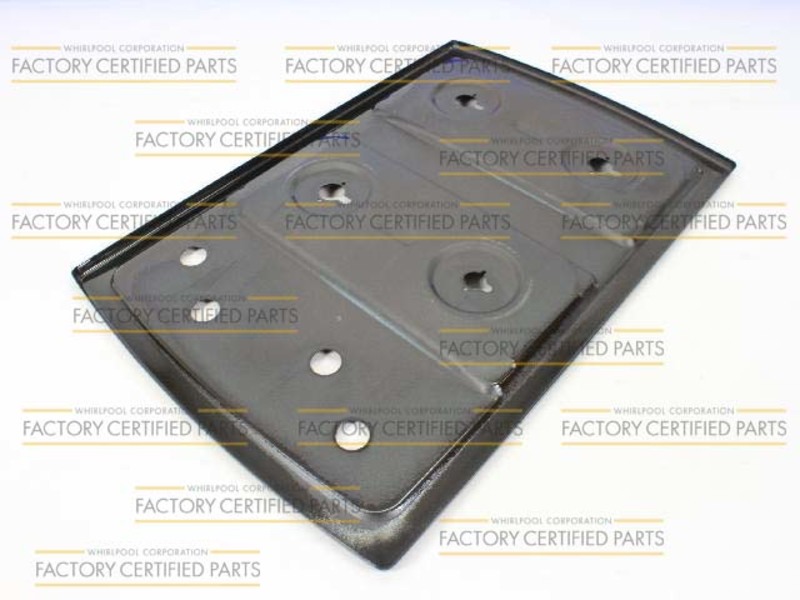

3	WP3191242	Cooktop (black)	$207.60 Special Order
3A	WP3191243	Cooktop (white)	$231.10 Special Order
3B	W11230936	Cooktop (stainless)   (Replaces: W10157843)	$231.80 Special Order
4	WPW10218223	Cap, Burner (kit Of 4) (black)	$51.10 Special Order
4A	W11189648	Cap, Burner (kit Of 4) (gray)   (Replaces: W10237940)	$56.00 Special Order
5	WPW10268483	Assembly, Grate (kit Of 4) (black) (Replaces: W10268483)	$93.00 Special Order
5A	W10837340	Assembly, Grate (kit Of 4) (white)	$209.20  In-Stock Retail: $204.09
6	W11134296	Electrode (left Front & Right Rear)	$42.50 Special Order
6A	W11134295	Electrode (left Rear & Right Front)	$42.50  In-Stock Retail: $41.43
7	WP8286057BL	Knob, Control (black)   (Replaces: 8286057BL)	$14.50  In-Stock Retail: $14.09
7A	WP8286057WH	Knob, Control (white)	$4.80 Special Order
8	WP9753929	Orifice (left Front)	$56.30 Special Order

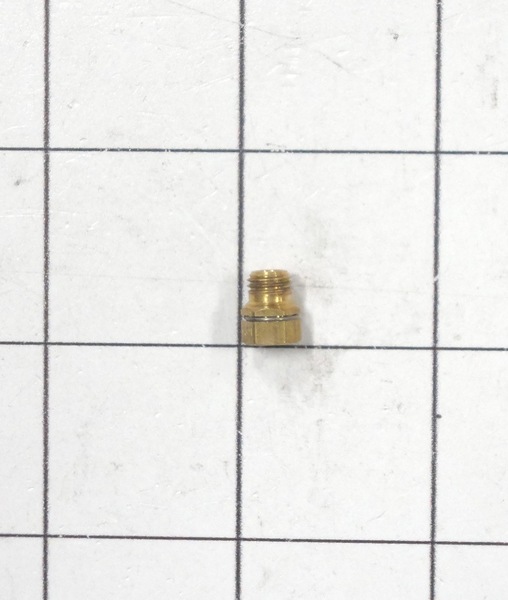

8A	WP3192523	Orifice (left Rear & Right Rear)	$62.20 Special Order
8B	8286473	Orifice (right Front)	$56.90 Special Order
9	WP90767	Screw	$4.80  In-Stock Retail: $4.59
10	WP3368921	Screw (Replaces: 3368921)	$1.30  In-Stock Retail: $1.24
11	W11134301	Assembly, Orifice Holder (10.5k) (left Front)	$64.30 Special Order
11A	W11134302	Assembly, Orifice Holder (9.1k) (left Rear)	$64.30 Special Order
11B	W11134303	Assembly, Orifice Holder (5k) (right Front)	$64.30 Special Order
11C	W11134304	Assembly, Orifice Holder (9.1k) (right Rear)	$64.30 Special Order
12	WPW10406797	Head, Burner (12.5k) (left Front, Left Rear, Right Rear) (Replaces: W10406797)	$59.70  In-Stock Retail: $58.17
12A	WPW10406243	Head, Burner (6k) (right Front) (Replaces: W10406243)	$24.40  In-Stock Retail: $23.75
13	WP8273062	Screw (Replaces: 8273062)	$4.80  In-Stock Retail: $4.59
NI	4173634	Bushing	$4.40 Special Order
	N/P	Following Parts Not Illustrated	Call for Availability
	4456626	Harness, Ignitor 15	$48.80  In-Stock Retail: $47.58
	4456627	Harness, Ignition 28	$146.60  In-Stock Retail: $142.95

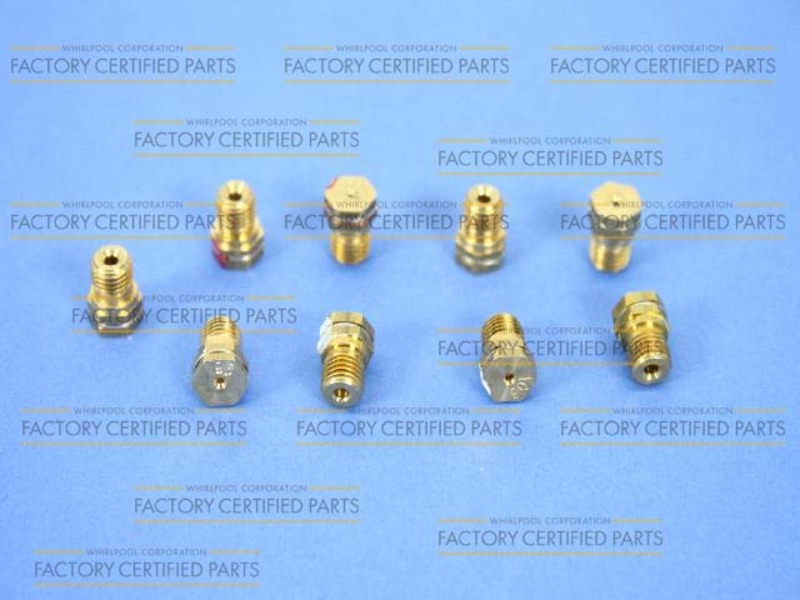

	WP8286320	Kit, Spud	$86.70 Special Order
