GE JGB630DEF2CC Parts List

Popular Searches: (Click to search)    anti  asm  bake  bracket  burner  cap  ckt  front  glowbar  holder  igniter  0  lef  lge  mdm  medium  orifice  oven  small  tip


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

4 - Door & Drawer Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
91	WB01T10008	Screw 10-32 Tr T	$10.50 Special Order
200	WB48X20249	Oven Rack	$70.40 Special Order
206	WB01K10091	Screw	$10.60 Special Order
222	WB10X21659	Hinge Door	$32.00 Special Order
300	WB58K10015	Drawer Body	$93.30 Special Order
312	WB1X119D	Contoured Washer (Replaces: WB1X119)	$14.80 Special Order
314	WB56X21447	Glass Oven Door Asm	$107.50 Special Order
315	WB56X20537	Liner Asm Weld Door	$92.20 Special Order
317	WB36K10212	Trim Top Door (bisque)	$46.30 Special Order
318	WB35X29668	Gasket Asm Door   (Replaces: WB04K10022)	$30.70 Special Order
320	WB02K10161	Spacer	$10.50 Special Order
321	WB1K10	Grommet Handle	$10.50 Special Order
330	NLA ITEM	Reflector 9.5 Inch	Call for Availability
332	WB35K10149	Insulation Side Door	$15.90 Special Order
	WB35K10150	Insulation Bottom Door	$14.90 Special Order
338	WB56X23809	Crystal Window	$85.50  In-Stock Retail: $83.33
339	WB56K12	Guard Insulation	$82.70 Special Order
340	WB55K10033	Panel Asm Weld	$87.70 Special Order
343	WB2K68	Glider Drawer	$18.50 Special Order
344	WB39K20	Bracket Mounting Drawer	$10.50 Special Order
345	WB55K10068	Liner Drawer	$39.50 Special Order
353	WB01K10012	Screw 8-22 Pl 1hx 71	$10.50 Special Order
354	WB01K10024	Screw Mtg End Cap (bisqu	$10.00 Special Order
356	NLA ITEM	Clip Window	Call for Availability

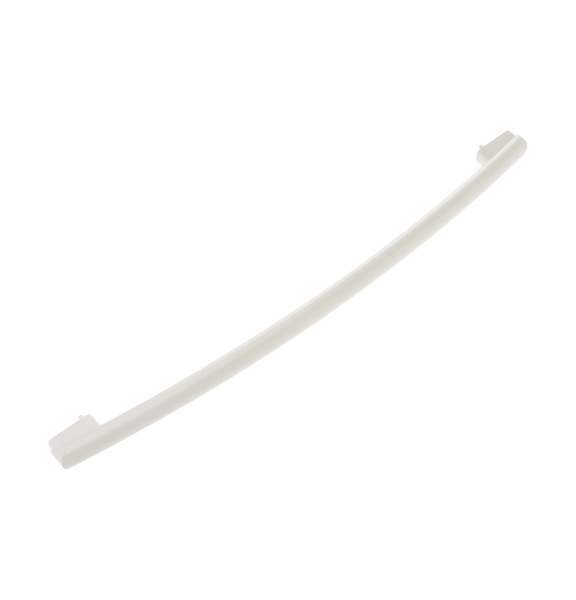

365	WB15T10215	Handle (le-bq)	$75.00 Special Order
366	WB1X536	Screw - Door Asm (4 Per)	$12.00  In-Stock Retail: $11.66
376	WB35K23	Deflector Heat	Call for Availability
394	WB07X20356	Trim Door	$35.20 Special Order
400	WB34K10087	Window Spacer Asm	$123.80 Special Order
441	NLA ITEM	Cap End Door Rt (bisque)	Call for Availability
	WB07K10129	Cap End Door Lt (bisque)	$11.40 Special Order
457	WB56X20305	Panel Drawer	$35.50 Special Order
667	WB35X21686	Insulation Door	$10.50 Special Order
