Maytag AMV5206BAB Parts List

Popular Searches: (Click to search)    air  assy  body;modular  capacitor  filter  0  halogen  lamp  latch  magnetron  micro  socket  switch  thermo  thermostat  vac  1


Select a Diagram

01 - Base/cavity/internal Controls

02 - Body/blower Motor

03 - Control Panel/door/vent Grille

04 - Supplemental Information

Select Diagram ... 01 - Base/cavity/internal Controls 02 - Body/blower Motor 03 - Control Panel/door/vent Grille 04 - Supplemental Information

03 - Control Panel/door/vent Grille   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	DE97-00633A	Asy-bkt-c/panel (Series: 10)	$23.80 Special Order
	W10181469	Asy-bkt-c/panel (Series: 14)	$62.10 Special Order

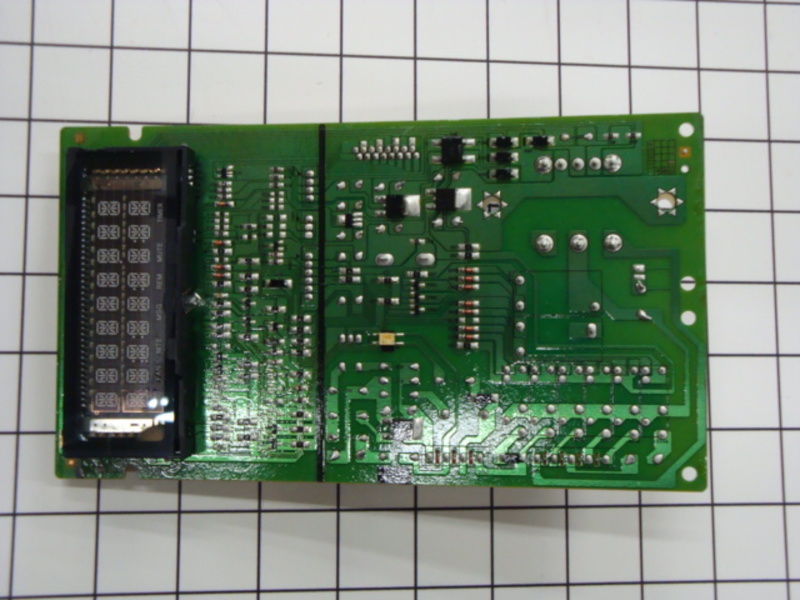

2	W10127099	Asy Pcb (Series: 10)	$179.70 Special Order
	W10181451	Asy Pcb (Series: 14)	$199.40 Special Order
3	DE94-01386E	Asy-control Panel (blk) (Series: 10)	$189.00 Special Order
	W10181470	Brkt-cntrl (Series: 14)	$52.90 Special Order
4	DE34-00233A	Switch Membrane (blk) (Series: 10)   (Replaces: DE34-00233A)	Call for Availability
5	DE64-00766B	Window-display;4150,san,t2.0,w (Series: 10)	$4.40 Special Order
6	DE94-01381E	Asy Door (blk) (Series: 10)	$222.70 Special Order
7	DE64-01454A	Grille (blk) (Series: 10)	$105.80 Special Order
