Maytag AMV5206BAB Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    air  assy  body;modular  capacitor  filter  0  halogen  lamp  latch  magnetron  micro  socket  switch  thermo  thermostat  vac  1


Select a Diagram


01 - Base/cavity/internal Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 DE61-00115A Bracket-hvc (Series: 10) $4.40
Special Order
2 8206562 8206562 Capacitor (Series: 10)
(Replaces: 2501-001016) 		$126.80
 In-Stock
Retail: $123.64
3 DE91-70063DCM Assy-hvd (Series: 10)   (Replaces: DE91-70063D) Call for Availability
4 WPDE31-10177E WPDE31-10177E Motor Fan (Series: 10) $212.90
Special Order
5 DE31-90051A DE31-90051A Blade-fan (Series: 10) $36.90
Special Order
6 DE63-00141A Cover-motor (Series: 10) $21.30
Special Order
7 DE96-00400B DE96-00400B Assy Noise Filter;sn-uf12b,250 (Series: 10) $94.90
Special Order
8 DE61-00406B Base-bottom (Series: 10) $68.30
Special Order
9 DE61-00407C Bracket-bottom Lamp (Series: 10) $22.00
Special Order
10 DE63-00137A Cover-glass Cooktop ----sna (Series: 10) $33.60
Special Order
11 DE64-00911A Glass-cooktop Lamp (Series: 10) $38.20
Special Order
12 4713-001165 4713-001165 Lamp-halogen (Series: 10) Call for Availability
13 DE47-00032B DE47-00032B Socket-lamp Halogen (Series: 10) $36.50
Special Order
14 DE66-90106B DE66-90106B Lever-switch Lower (Series: 10) $13.00
Special Order
15 WP3405-001033 WP3405-001033 Switch-micro (Series: 10) $31.40
Special Order
16 WP3405-001034 WP3405-001034 Switch, Micro (125/250 Vac) (Series: 10)
(Replaces: 3405-001034) 		$52.40
 In-Stock
Retail: $51.07
17 DE66-00168A Latch-body;modular-2,pp,-,-,-, (Series: 10) Call for Availability
18 DE63-00008F Cushion-sponge (Series: 10) $4.40
Special Order
19 DE61-00415A Base-plate (Series: 10) $21.30
Special Order
20 WPDE47-20059A WPDE47-20059A Sw-thermo (Series: 10)
(Replaces: DE47-20059A) 		Call for Availability
21 DE47-20034A DE47-20034A Thermostat (Series: 10) $53.50
Special Order
22 DE26-00125A DE26-00125A Trans H.v (Series: 10) $199.50
Special Order
23 DE61-00411A Bracket-duct Rear (Series: 10) $21.20
Special Order
24 WPW10126786 Assy-magnetron (Series: 10)   (Replaces: W10126786) $227.00
 In-Stock
Retail: $221.46
25 WPDE47-20007A WPDE47-20007A Thermostat (Series: 10)
(Replaces: DE47-20007A) 		Call for Availability
26 DE63-00138A Cover-front (Series: 10) $4.40
Special Order
27 WPDE31-10172A WPDE31-10172A Motor, Drive (Series: 10) $74.80
Special Order
28 DE61-00375A DE61-00375A Holder-rack (Series: 10) $29.20
Special Order
29 WPDE67-00213A Coupler (Series: 10)   (Replaces: DE67-00213A) $4.80
 In-Stock
Retail: $4.59
30 DE75-00036A Rack-wire ----sna (Series: 10) $30.80
Special Order
31 DE97-00637A DE97-00637A Asy-guide Roller (Series: 10) Call for Availability
32 WPDE74-20002B WPDE74-20002B Tray-cooking (Series: 10)
(Replaces: DE74-20002A) 		$63.60
Special Order
33 DE71-60121A DE71-60121A Cover-stirrer (Series: 10) $22.20
Special Order
W10258285 Cover-stirrer (Series: 17) $18.40
Special Order
34 DE66-20095B Button-lock (Series: 10) $4.40
Special Order
35 DE61-00804A Holder-stirrer (Series: 10) Call for Availability
36 W10250840 Blade-stirrer (Series: 10) $32.00
Special Order

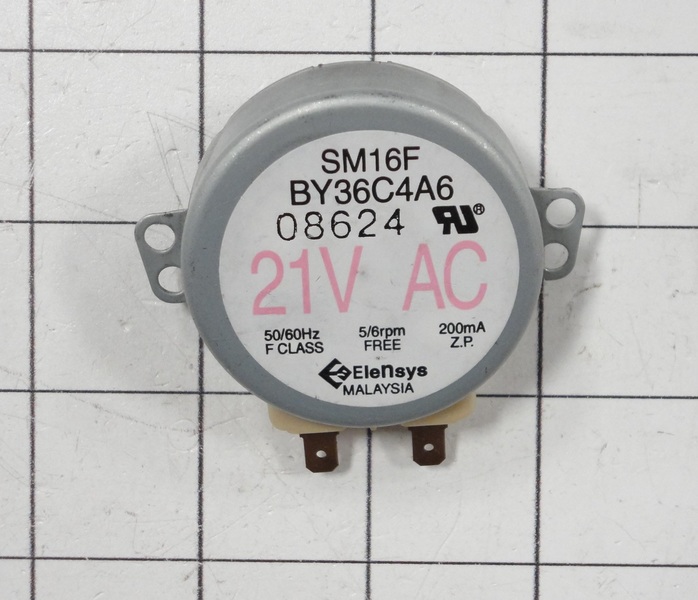

37 WPDE31-00040A WPDE31-00040A Motor Drive (Series: 10) $109.10
Special Order
38 6802A 6802A Filter-air (Series: 10)
(Replaces: DE63-00196A) 		$23.00
 In-Stock
Retail: $21.89
