GE JGB645EEK1ES Parts List

Popular Searches: (Click to search)    glowbar  igniter  ignition  module  oven  rack  spacer  0  89mm  anti  burner  cap  orifice  1  99mm  asm  bracket  tip


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

2 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
100	WB07X29143	End Support Rh	$43.00 Special Order
	WB07X29144	End Support Lh	$42.50 Special Order
103	WB02X24845	Bracket Control	$10.60 Special Order
104	WB36X26045	Trim Control Asm	Call for Availability
105	WB27X44729	Control Oven To9 (gas)   (Replaces: WB27K10453)	$99.50  In-Stock Retail: $97.04
106	WB34X24851	Cover Back Upper	$51.60 Special Order
107	WB34X24746	Cover Back Lower	$42.90 Special Order
108	WB1X5364	Screw (cr)	$10.50  In-Stock Retail: $10.22
109	WB34X29145	Top Complement Backguard	$19.80 Special Order
110	WB13X24323	Ignition Module	$21.80  In-Stock Retail: $21.25
111	WB18X26607	Electrodes & Harness H.v   (Replaces: WB18X26312)	$23.70  In-Stock Retail: $23.12
112	WB14K10003	Hinge Range Top	$10.50 Special Order
114	WB62X26614	Rangetop & Brkt Asm	$177.00 Special Order

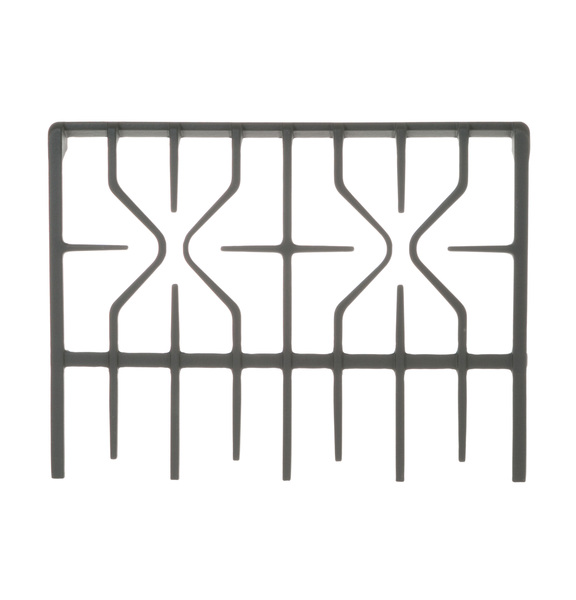

116	WB31X26620	Grate Asm	$140.80 Special Order
122	WB01X24735	Ckt Screw	$10.50 Special Order
130	WB34X25717	Backguard Eyebrow	$25.40 Special Order

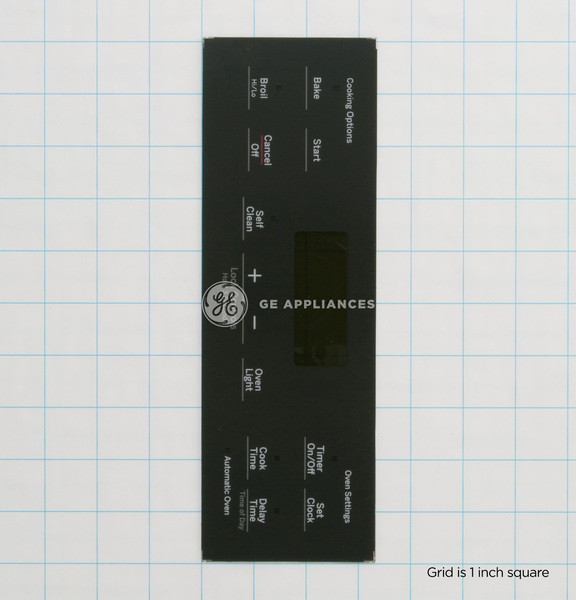

136	WB07X25217	Overlay T09	$21.00 Special Order
150	WB29K10023	Asm Burner Cap (9500)	$20.10  In-Stock Retail: $19.55
151	WB16X28654	Asm. Cap, Burner Small V (Replaces: WB29X24720)	$10.60  In-Stock Retail: $10.31
152	WB29K10024	Asm Burner Cap (12000)	$19.30  In-Stock Retail: $18.80
153	WB28K10222	Cap Burner Asm (15k)	$26.90  In-Stock Retail: $26.24
155	WB16X24721	Burner, Small V2	$15.30  In-Stock Retail: $14.88
156	WB16X24723	Burner, Large V2	$25.80 Special Order
157	WB16X24722	Burner, Xl V2	$27.20  In-Stock Retail: $26.46
159	WB16X24724	Burner, Medium V2	$19.30  In-Stock Retail: $18.80
168	WB02X24976	Clip, Igniter V2	$10.50 Special Order
204	WB1K5062	Screw (blk) (Replaces: WB1K42)	$10.50 Special Order
752	WZ04X0345	Screw 8-18x5/8 Hxw	Call for Availability
770	WB35K10040	Insulation Control	$13.40 Special Order
