Maytag ALE866SBC Parts List

Popular Searches: (Click to search) air assembly assy belt cylinder door duct filter fuse glide lint lwr motor pulley seal switch tan thermal uppr wht

Select a Diagram

01 - Cabinet & Base

02 - Control Panel

03 - Door & Front, Access & Top Panels

04 - Front Bulkhead, Air Duct & Drum

05 - Motor & Fan

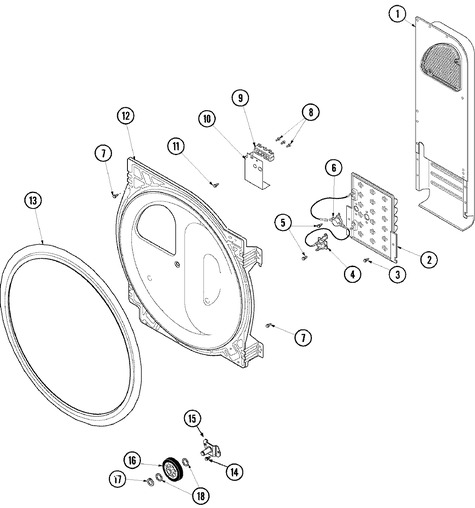

06 - Rear Bulkhead, Air Duct, Heater & Roller

07 - Supplemental Information

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	503605	Assembly, Heater Duct (Series: 10)	Call for Availability
2	WPY503978	Heater Element (Series: 10) (Replaces: Y503978)	$46.90 In-Stock Retail: $46.88
3	WP3390631	Screw (Series: 10)	$4.80 In-Stock Retail: $4.59
4	WP40113801	Fuse, Thermal (Series: 10) (Replaces: 40113801)	$6.60 In-Stock Retail: $6.55
5	WP3177991	Screw, 8b-18 X 1/4 He (Series: 10)	$4.80 Special Order
