Maytag ALE230RCW Parts List

Popular Searches: (Click to search)    air  assembly  assy  belt  blower  cylinder  door  duct  fuse  glide  lwr  metal  motor  pulley  seal  strike  switch  tan  thermal  uppr


Select a Diagram

01 - Cabinet & Base

02 - Control Panel

03 - Door, Front, Access & Top Panels

04 - Front Bulkhead, Air Duct & Cylinder

05 - Motor & Fan Assembly

06 - Rear Bulkhead,rollers,air Duct&heater

07 - Supplemental Information

Select Diagram ... 01 - Cabinet & Base 02 - Control Panel 03 - Door, Front, Access & Top Panels 04 - Front Bulkhead, Air Duct & Cylinder 05 - Motor & Fan Assembly 06 - Rear Bulkhead,rollers,air Duct&heater 07 - Supplemental Information

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP90767	Screw, 8b-18x3/8 Slt (Series: 10)	$4.80  In-Stock Retail: $4.59
2	503674W	Cover, Top (wht) (Series: 10)	$13.80 Special Order
3	WP90767	Screw, 8b-18x3/8 Slt (Series: 10)	$4.80  In-Stock Retail: $4.59
	40012702W	Endcap (lt-wht) (Series: 10)	Call for Availability
4	40084101	Switch,fab Sel-3 Position (Series: 10)	$49.10 Special Order
5	R0000408	Timer (Series: 10)	$120.80 Special Order

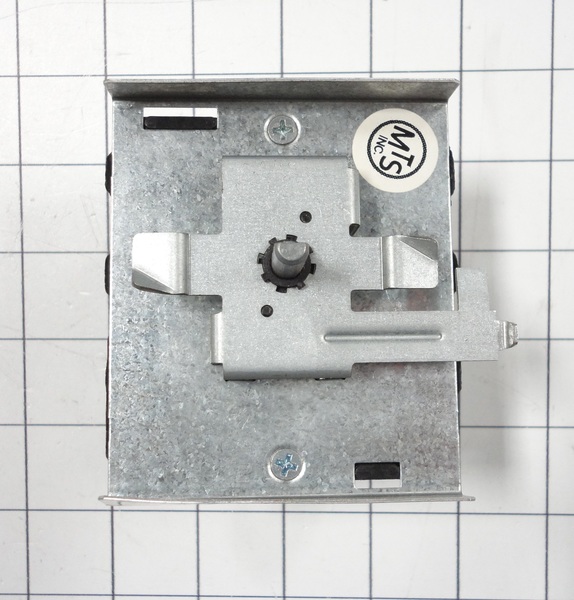

	37001019	Timer (3 Cycle) (Series: 11)	$105.80 Special Order
6	37001065	Knob, Selector (wht) (Series: 10)	$6.20 Special Order
7	40012701W	Endcap (rt-wht) (Series: 10)	Call for Availability
	WP90767	Screw, 8b-18x3/8 Slt (Series: 10)	$4.80  In-Stock Retail: $4.59
8	40039610	Panel, Support (Series: 10)	$7.60 Special Order
9	40071701W	Panel,graphic(white) (Series: 10)	$36.30 Special Order
10	37001064	Assy, Timer Knob (wht) (Series: 10)	$17.90 Special Order
