Frigidaire E30MC75PPSB Parts List

Popular Searches: (Click to search)    2000w  assembly  bake  black  capacitor  door  element  hidden  high  light  motor  outer  panel  side  stainless  support  switch  trim  turntable  voltage


Select a Diagram

02 - Control Panel

03 - Microwave

04 - Lower Oven

05 - Doors

01 - Cover Sheet

06 - Wiring Diagram

07 - Wiring Diagram

Select Diagram ... 02 - Control Panel 03 - Microwave 04 - Lower Oven 05 - Doors 01 - Cover Sheet 06 - Wiring Diagram 07 - Wiring Diagram

05 - Doors   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
3	5304491779	Spacer, Door Glass, Top	$19.50 Special Order
4	808983501	Spacer, Door Glass, Silicone, (2)	$14.50 Special Order
5	139010800	Cap, Screw Hole, Trim, (2)	$11.50 Special Order
7	139010505	Glass, Thermal, Inner, Hb11 #2	$119.50 Special Order
8	139010504	Glass, Thermal, Inner, Hb11 #1	$133.50 Special Order
9	139010402	Glass, Door, Inner	$301.00 Special Order
10	316439507	Screw, Handle Mtg., 10-24 X 1.77", (2)	$15.50 Special Order
13A	807722402	Door Assembly, Outer, Stainless/black, W/trim & Badge	$855.90 Special Order
23	139010306	Hinge, Door, Gold, Dual Spring	$94.50 Special Order
39	808992401	Handle, Door,, Stainless	Call for Availability
52	5304494448	Trim Assembly, Door, Top	Call for Availability
56	807286001	Screw, 10-32 X 1/4	Call for Availability
76	5304504049	Door Assembly, Stainless, W/handle	$676.00 Special Order
77	5304471512	Panel, Inner Door	$258.90 Special Order
78	5304470579	Frame, Inner Door, Choke Cover	$62.10  In-Stock Retail: $60.49

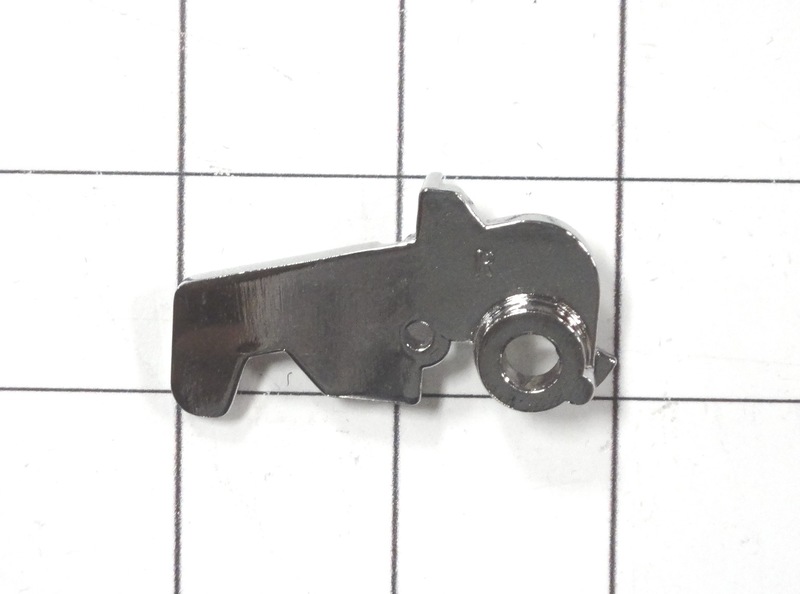

79	5304491054	Latch Head, Right Side	$39.50 Special Order

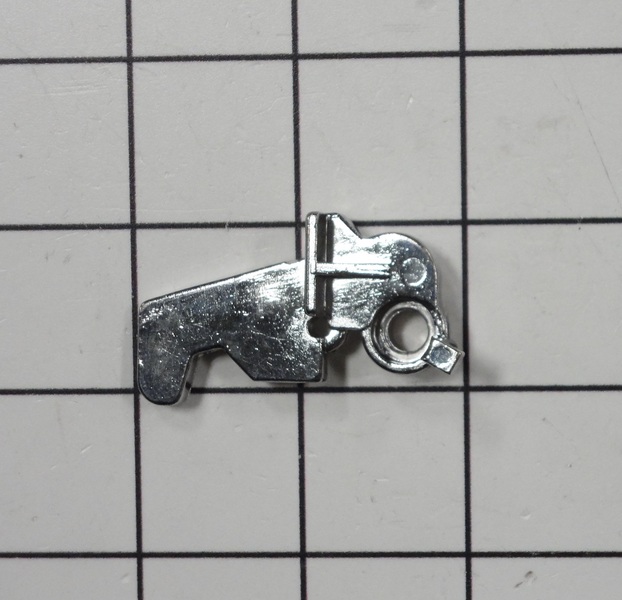

80	5304490142	Latch Head, Left Side	$41.00 Special Order
81	5304501834	Spring, Latch Head	$29.00 Special Order
82	5304451561	Screw, 4 Mm X 8 Mm	$11.80 Special Order
83	5304470583	Screw	$9.00 Special Order
NI	318163602	Cleaner, Stainless Steel	$18.20 Special Order
