GE ZDT870SSF7SS Parts List

Popular Searches: (Click to search) asm flood switch

Select a Diagram

1 - Escutcheon & Door Assembly

2 - Body Parts (1)

3 - Body Parts (2)

4 - Upper Rack Assembly

5 - Lower Rack Assembly

6 - Sump & Filter Assembly

7 - Sump & Motor Mechanism

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
42	WD02X22736	Scr10 - 16 Ab Hxw 3/4 Ss	$10.50 In-Stock Retail: $10.22

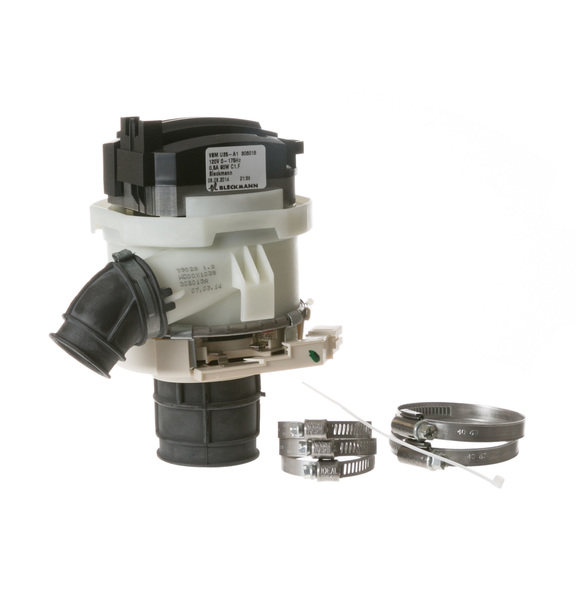

310	WD35X20599	Pump Variable Wash Asm	$288.60 Special Order

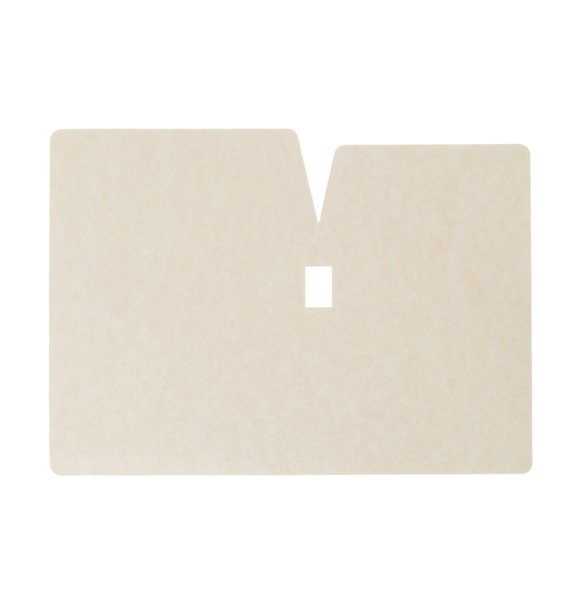

311	WD01X20212	Shield Pump Main	$26.80 Special Order
312	WD01X22891	Grommet Pump Hanger	$28.20 Special Order
314	WD01X22890	Grommet Isolator	$10.50 Special Order
321	WD21X22598	Sensor Turbidity Asm	$21.50 In-Stock Retail: $20.96
324	WD01X10580	Shield Wash Pump	$10.50 Special Order
325	WD26X22810	Pump Variable Drain Asm (Replaces: WD26X20306)	$56.60 Special Order

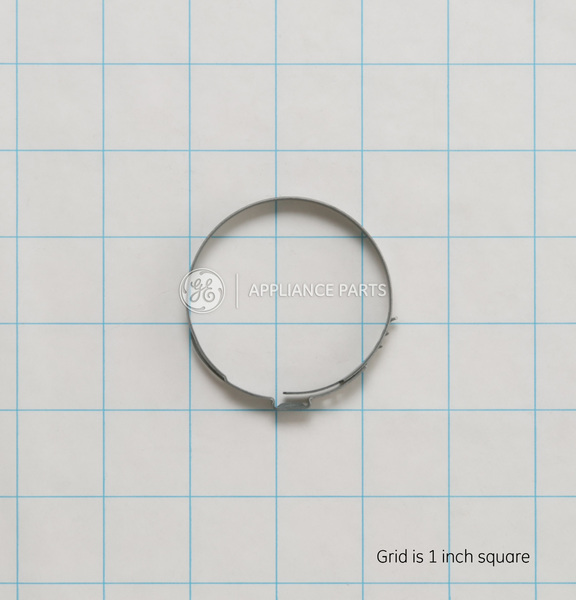

330	WD01X20302	Clamp	$9.80 Special Order
332	WD35X10382	Clamp	$81.20 Special Order
333	WD01X10632	Latch Cam	$10.50 Special Order
334	WD01X10575	Latch Cam	$10.50 Special Order
335	WD35X10382	Clamp	$81.20 Special Order
420	WD01X20595	Hanger Drain Pump	$10.00 Special Order
425	WD01X10101	Grommet	$10.50 Special Order
426	WD02X10093	Wd02x10093	$10.50 Special Order
503	WB01T10103	Scr 10-16 Ab Hxw .532	$10.50 In-Stock Retail: $10.22

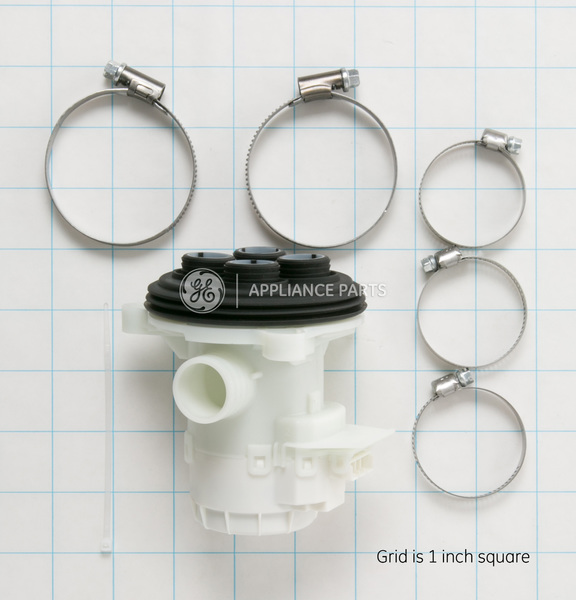

504	WD35X20600	Diverter Active Asm	$138.80 Special Order
505	WD18X10055	Sump Manifold	$33.90 In-Stock Retail: $33.07
740	WD01X10584	Shield Drain Pump	$11.30 Special Order
791	WD01X24246	Clamp (Replaces: WD01X10611)	$10.50 In-Stock Retail: $10.22
