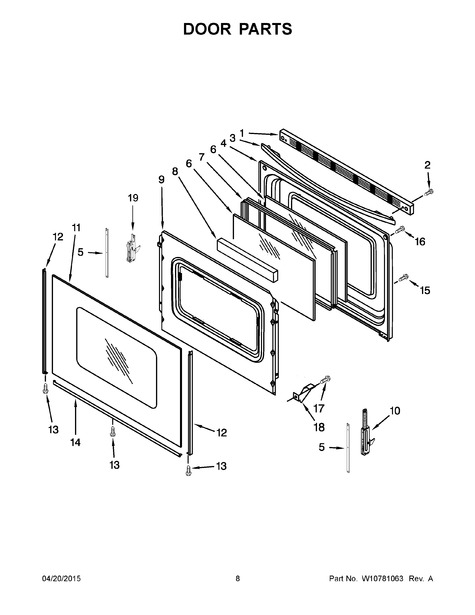

05 - Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10817433	Trim, Top (white)   (Replaces: W10310920)	$102.60  In-Stock Retail: $100.01
2	W10817436	Screw	$4.80  In-Stock Retail: $4.59
3	W10817434	Handle, Door (white)	$136.50  In-Stock Retail: $133.15
4	WP9761344	Liner, Door	$212.80  In-Stock Retail: $207.60
5	W11502236	Strap, Door	$15.00  In-Stock Retail: $14.63
6	WP8053948	Glass, Inner	$124.40  In-Stock Retail: $121.33
7	WPW10316950	Frame, Glass	$51.40 Special Order
8	WPW10278991	Insulation, Door Strip	$62.00 Special Order
9	W11539580	Retainer, Insulation   (Replaces: 9761357)	$135.30 Special Order
10	WPW10299224	Hinge, Active (with Spring) (Replaces: W10299224)	$71.70  In-Stock Retail: $69.92
11	WPW10118454	Glass, Outer (white) (Replaces: W10118454)	$192.50 Special Order
12	WP8523172	Trim, Side (white (left))   (Replaces: 8523172)	$67.00  In-Stock Retail: $65.32
12A	WP8523166	Trim, Side (white (right))   (Replaces: 8523166)	$67.10  In-Stock Retail: $65.38
13	W10491985	Screw (Replaces: 3196160)	$4.80  In-Stock Retail: $4.59
14	WP8523175	Trim, Lower (white)   (Replaces: 8523175)	$87.30  In-Stock Retail: $85.11
15	WPW10031790	Screw (Replaces: W10031790)	$4.80  In-Stock Retail: $4.59
16	W10777162	Screw (Replaces: W10031780)	$4.80  In-Stock Retail: $4.59
17	WPW10200660	Screw (Replaces: W10200660)	$4.80  In-Stock Retail: $4.59
18	W10137382	Clip, Panel	$30.90 Special Order
19	WPW10299227	Hinge, Passive (without Spring) (Replaces: W10299227)	$54.30  In-Stock Retail: $52.88
