GE GCWN4950D2WS Parts List

Popular Searches: (Click to search)    and  asm  bearing  belt  dampng  drain  external  hose  hub  lid  nut  rib  ring  seal  shaft  split  strap  switch  tub  tube


Select a Diagram

1 - Controls & Backsplash

2 - Cabinet, Cover & Front Panel

3 - Tub, Basket & Agitator

4 - Suspension, Pump & Drive Components

Select Diagram ... 1 - Controls & Backsplash 2 - Cabinet, Cover & Front Panel 3 - Tub, Basket & Agitator 4 - Suspension, Pump & Drive Components

1 - Controls & Backsplash   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-15441	Pm Instruction Install	Call for Availability
	31-16628-2	Pm Mini Manual	Call for Availability
	49-90527	Pm Owners Manual	Call for Availability
3	WH42X22575	Endcap Washer Lh	$33.70 Special Order
4	WH42X22576	Endcap Washer Rh	$23.70 Special Order

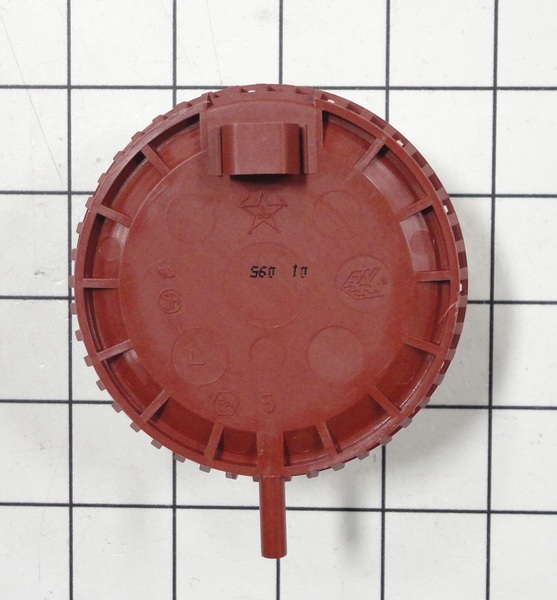

10	WH12X10412	Switch Pressure	$68.20 Special Order
13	WH42X22779	Backsplash Asm	Call for Availability
18	WH01X10088	Button Switch	$15.70 Special Order

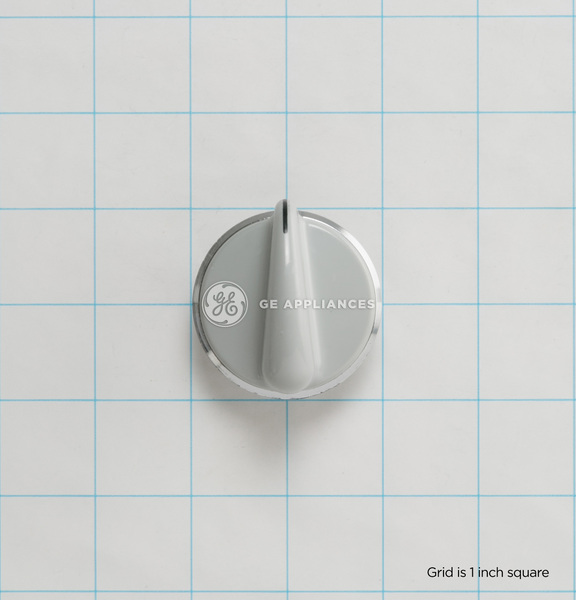

19	WH01X10650	Knob Asm	$14.50  In-Stock Retail: $14.11
25	WH12X10410	Probe Sensor Atc	Call for Availability
35	WH12X10614	Control Asm	$166.40  In-Stock Retail: $191.52
36	WH12X10095	Connector Model Select	$10.50 Special Order
71	WH2X1205	Scr 8-18 B 1/2 Hxw P	$10.50 Special Order

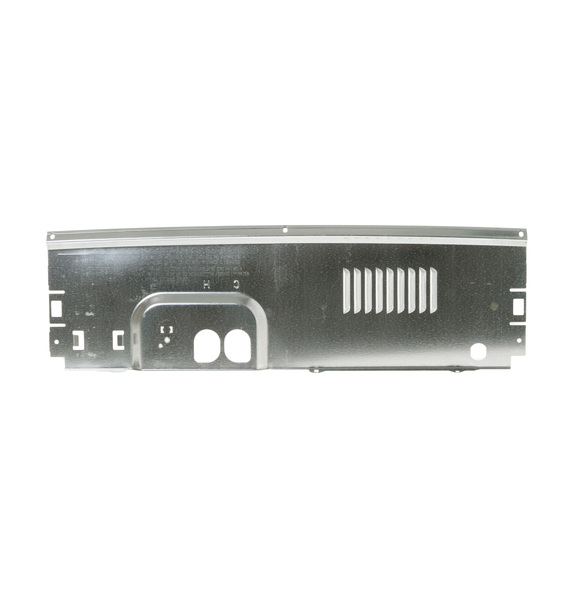

72	WH46X22755	Back Panel	$20.90 Special Order
151	WH02X10126	Screw 8-18 B 1hw 1/2 Sn	$10.50 Special Order
494	WD21X10356	Term Hsng - W/valve	$10.50  In-Stock Retail: $10.22
556	NLA ITEM	Housing Terminal	Call for Availability
557	WH19X22594	Cord Power Asm	$19.00 Special Order
712	WH01X10648	Badge	Call for Availability
790	WH1X2036	Clamp Hose	$15.70 Special Order
803	WH41X10299	Funnel Shower Head Asm	$13.80  In-Stock Retail: $13.40

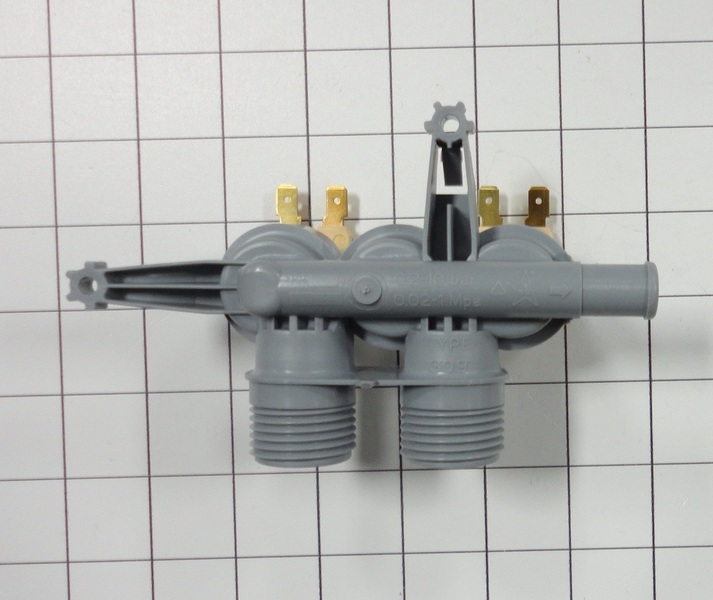

805	WH13X10037	Valve Triple Water	$65.40  In-Stock Retail: $74.85
807	WH2X42D	Washer Flat (Replaces: WH02X10161)	$10.50 Special Order
808	WH41X10207	Hose Inlet Asm	$15.80 Special Order
	WH41X10207	Hose Inlet Asm (Replaces: WH41X10095)	$15.80 Special Order
811	WH41X365	Hose Pres Sw	$14.50  In-Stock Retail: $14.11

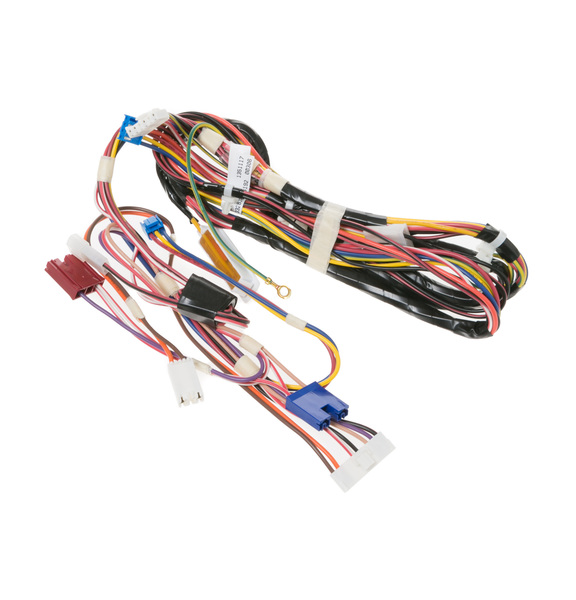

999	WH19X10102	Harness Washer	Call for Availability
