GE GFDN120GD3WW Parts List

Popular Searches: (Click to search)    asm  control  conversion  detector  door  drum  gas  idler  inlet  interlock  kit  lamp  limit  nat  orifice  pulley  ring  sleeve  switch  thermostat


Select a Diagram

1 - Control Panel

2 - Front Panel

3 - Door

4 - Cabinet & Top Panel

5 - Blower & Motor

6 - Drum

7 - Gas Valve & Burner Assembly

Select Diagram ... 1 - Control Panel 2 - Front Panel 3 - Door 4 - Cabinet & Top Panel 5 - Blower & Motor 6 - Drum 7 - Gas Valve & Burner Assembly

5 - Blower & Motor   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
198	WE2M200	Screw	$10.50 Special Order
201	WE16X20393	Blower Wheel	$40.40  In-Stock Retail: $39.34
203	WE13X200	Strap Motor	$10.50 Special Order
204	WE1X921	Motor Bracket	$41.50 Special Order
205	WE13M39	Motor Support	$39.00  In-Stock Retail: $38.02
213	WE03X29897	Belt Drive   (Replaces: WE12M29)	$33.20  In-Stock Retail: $53.72
215	WE03X20434	Idler Arm Spring	$85.80  In-Stock Retail: $83.69
216	WE12X83	Pulley Idler (Replaces: WE12M8)	$15.40  In-Stock Retail: $34.94

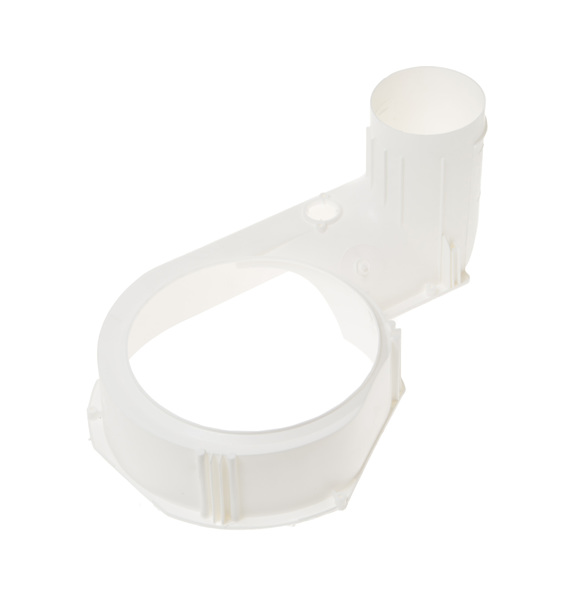

218	WE14M239	Blower Housing	$103.20 Special Order
228	WE14M107	Exhaust Duct	$37.30 Special Order
230	WE04X20685	Thermistor	$14.50 Special Order
232	WE2M202	Screw	$10.50 Special Order
233	WE03X27285	Motor Plate	$24.50 Special Order
234	WE2M96	Cap Nut	$10.10 Special Order
235	WE2X263D	Scr   (Replaces: WE2X263)	$17.10 Special Order
237	WD02X10057	Screw (Replaces: WE2M154)	$10.50  In-Stock Retail: $10.22
239	WR2X9260	Screws	$25.10  In-Stock Retail: $24.48
240	WE4M300	T-stat , Outlet Bkup Org	$58.70  In-Stock Retail: $58.61
461	WZ05X0158	Screw 8-32x3/8 Grd Scr	Call for Availability
502	WE2M174	Screw # 10	$10.50 Special Order
630	WE17X22215	Motor And Pulley	$247.40 Special Order
803	WD21X10261	Switch Interlock (Replaces: WD21X557)	$21.80  In-Stock Retail: $21.25
