GE GTH20SBBASS Parts List

Popular Searches: (Click to search)    15amp  40watt  asm  blade  bumper  compression  cond  conduction  def  evap  fan  heater  motor  power  ring  sensor  socket  temp  terminal  thermostat


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Evaporator Instructions

5 - Fresh Food Section

6 - Fresh Food Shelves

7 - Case Parts

8 - Machine Compartment

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Evaporator Instructions 5 - Fresh Food Section 6 - Fresh Food Shelves 7 - Case Parts 8 - Machine Compartment

1 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	49-60654	Pm Guide Owners	Call for Availability
	31-51817	Pm Mini Wiring Manual	Call for Availability
3	NLA ITEM	Handle And Cap Asm	Call for Availability
9	WR02X12800	Fastener Handle Ss	$17.80 Special Order
13	WR02X13536	Stop Door	Call for Availability
18	WR1X1726D	Scr 10-16 Ab 3/4 Ss (Replaces: WR1X1726)	$34.50  In-Stock Retail: $33.62
23	NLA ITEM	Gasket	Call for Availability
28	WR02X13537	Thimble Door Plastic	Call for Availability
31	WR02X13538	Thimble Door Plastic	Call for Availability
36	WR02X13539	Cap Corner Bottom	Call for Availability
37	WR02X13540	Cap Corner Bottom	Call for Availability
38	WR02X13541	Cap Corner Top	Call for Availability
39	WR02X13542	Cap Corner Top	Call for Availability

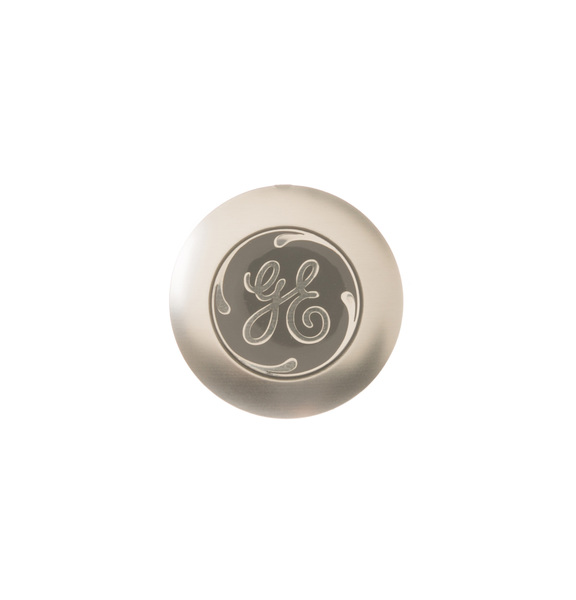

42	WR04X10149	Badge Asm Ge	$57.20 Special Order
97	NLA ITEM	Shelf Door Fz	Call for Availability
112	WR02X13047	Plug Button	$10.50 Special Order
113	WR02X13545	Plug Button Thimble	Call for Availability

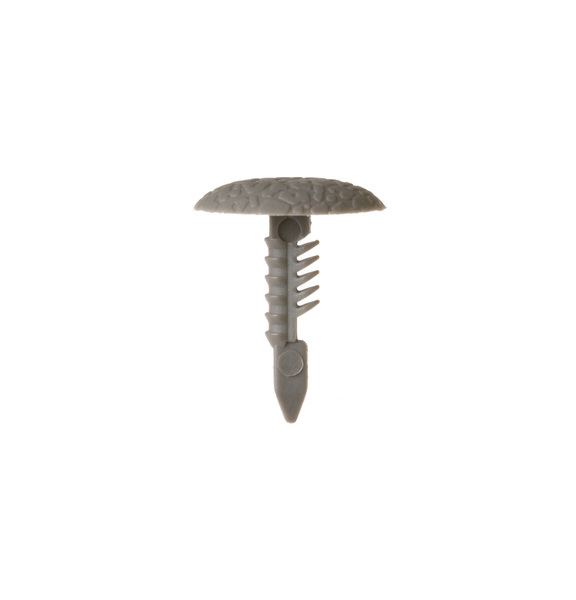

114	WR02X13546	Plug Door Rvsbl	Call for Availability
900	NLA ITEM	Door Foam Fz Asm	Call for Availability
904	WR01X10611	Scr 10-16   (Replaces: WR01X10582)	$10.50  In-Stock Retail: $10.22
