GE ZDT870SSF5SS Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    asm  flood  switch


Select a Diagram


1 - Escutcheon & Door Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 49-55095 Pm Owners Manual Call for Availability
31-30672 Pm Mini-manual Call for Availability
165D9739P016 Insert Mini Manual Call for Availability
31-31549 Pm Install Instructions Call for Availability

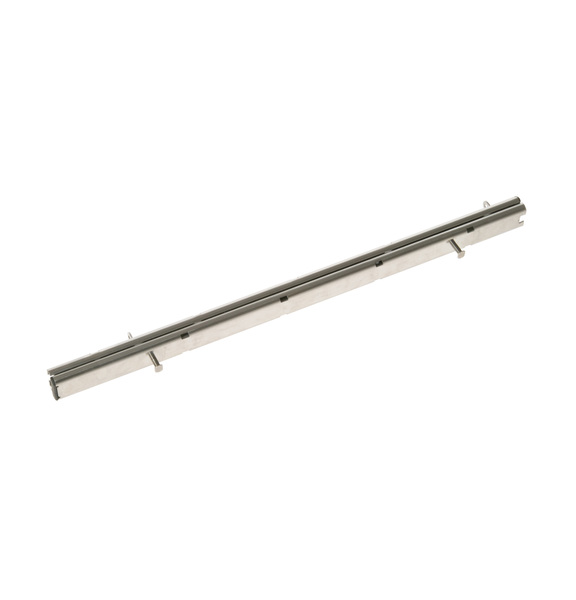

WD30X20324 WD30X20324 Slide Third Rack $86.60
Special Order
113 WD02X10067 WD02X10067 Screw 8-16 Hxw 1/2 Ss $10.50
Special Order
200 WD01X21475 Pad Friction Hinge Asm $15.70
Special Order
201 WD01X21435 Pad Friction Hinge Asm $15.70
Special Order
708 WD30X10045 WD30X10045 Brace Door Asm $38.10
Special Order
709 WB01T10101 WB01T10101 Scr 1/4-28 Hxw 7/8 Zn $12.70
 In-Stock
Retail: $12.37
710 WD01X22930 Block Foam Door $10.50
Special Order
711 WD27X23007 Kit Door Asm Outer $365.30
Special Order
712 WD01X22929 Block Foam Door $10.50
Special Order

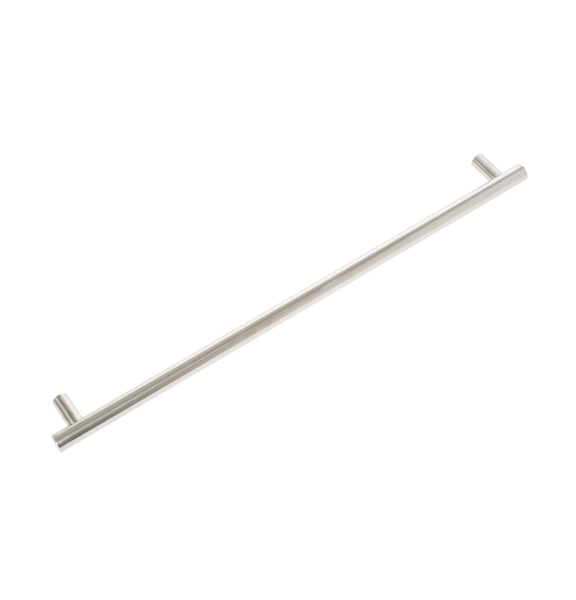

713 WD13X20396 WD13X20396 Handle Asm $118.60
Special Order
715 WD02X10220 WD02X10220 Scr 10-32 Gx Hxw 3/8 $10.50
Special Order
716 WD01X20135 WD01X20135 Bracket Handle $10.50
Special Order
717 WD01X22135 Speaker $20.30
Special Order
718 WD21X30758 Kit Service Ui Lcd Astn $205.90
Special Order
719 WD34X22947 Console Cover Asm Monogram   (Replaces: WD12X21662) $112.90
Special Order
720 WD21X20299 WD21X20299 Silicone Light Pipe $32.00
Special Order
722 WD09X20398 WD09X20398 Lens And Adhesive Asm $13.80
Special Order
723 WD12X22906 Console Top Control $19.90
Special Order
724 WD12X20397 WD12X20397 Housing Bottom $29.30
Special Order
725 WD09X20394 WD09X20394 Button $14.80
Special Order
745 WD01X22514 WD01X22514 Scr 10-32 Gx Ihxw 9/16 S $10.50
Special Order
753 WD21X20149 WD21X20149 Harness Asm Door $37.30
Special Order
758 WD27X21334 WD27X21334 Insulation Toe Kick $9.80
Special Order

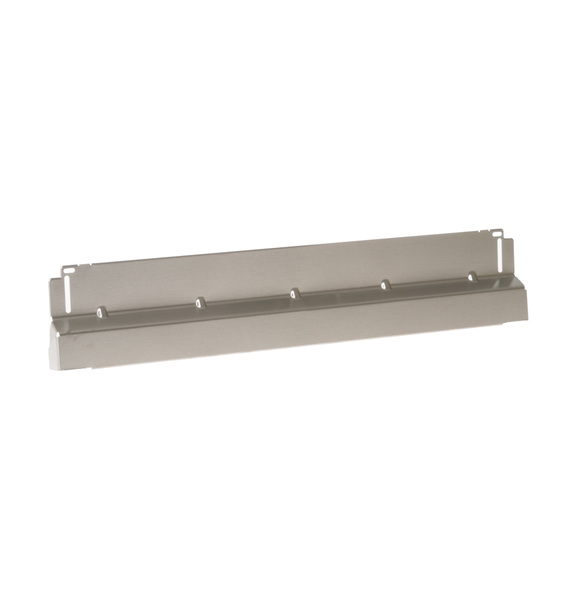

759 WD27X20395 WD27X20395 Toe Kick $73.20
Special Order
780 WD01X22934 Ground Clip Onsert $10.50
Special Order
789 WD13X22837 WD13X22837 Striker Adapter $148.60
Special Order
795 WD02X22628 Screw T15 8-16 Plastite 60-1 $10.50
Special Order
796 WD01X10634 WD01X10634 Attach Strip $10.50
Special Order
797 WD01X22836 WD01X22836 Attach Strip
(Replaces: WD01X10633) 		$10.50
Special Order
798 WD01X22513 WD01X22513 Bracket Support Hinge $10.10
Special Order
799 WD01X22512 WD01X22512 Bracket Support Hinge $10.10
Special Order
801 WB02T10324 WB02T10324 Scr 6-20 Gxb Ihxw 3/8 Ni $10.50
Special Order
804 WD13X20245 Striker Latch Call for Availability
805 WD01X20220 WD01X20220 Attachment Strip Top $18.50
Special Order
807 WD31X29639 Door Inner Ss   (Replaces: WD31X20237) $256.60
Special Order
811 WD12X32799 Module Detergent   (Replaces: WD12X28240 WD12X21056) $43.00
 In-Stock
Retail: $41.94
812 WD24X20587 Cover Vent $10.50
Special Order
813 WD12X10462 WD12X10462 Plate Detergent $10.50
Special Order
815 WD12X20218 WD12X20218 Vent Conduit Asm $86.30
Special Order
816 WD08X10092 WD08X10092 Door Vent Seal $22.90
 In-Stock
Retail: $22.32
818 WD12X23336 WD12X23336 Transition Piece Asm $35.00
Special Order
820 WD24X20390 WD24X20390 Vent Fan Asm $76.50
Special Order
833 WD02X20140 WD02X20140 Scr 10-16 Pl Pnt 2.25 S $10.50
Special Order
906 WD02X21661 Badge Monogram $13.40
Special Order
