Maytag AGS1740BDW Parts List

Popular Searches: (Click to search)    4+0  anti  bake  base  blk  bracket  bulb  burner  door  hinge  igniter  lrg  module  oven  screw  seal  sensor  short  spark  tip


Select a Diagram

01 - Body

02 - Control Panel/top Assembly

03 - Door/drawer

04 - Gas Controls

05 - Oven/base

06 - Supplemental Information

07 - Wiring Information

Select Diagram ... 01 - Body 02 - Control Panel/top Assembly 03 - Door/drawer 04 - Gas Controls 05 - Oven/base 06 - Supplemental Information 07 - Wiring Information

06 - Supplemental Information   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8113P497-60	Manual, Use & Care (Series: 10)	Call for Availability
	8113P592-60	Manual, Use & Care (Series: 12)	Call for Availability
	8113P764-60	Manual, Use & Care (Series: 14)	Call for Availability
2	74010890	Harness, Sensor (Series: 10)	$27.70 Special Order
3	W10173467	Harness, Spark (Series: 10)	$25.80  In-Stock Retail: $25.10
4	74011352	Wire (wht/2)/2 Curcuit Plug (Series: 11)	$4.40 Special Order
	74011350	Wire (18g Wht/2) (Series: 10)	$4.40 Special Order
	74011307	Harness, Main (Series: 11)	$39.70 Special Order
	74011305	Harness, Main (Series: 10)	$34.80 Special Order

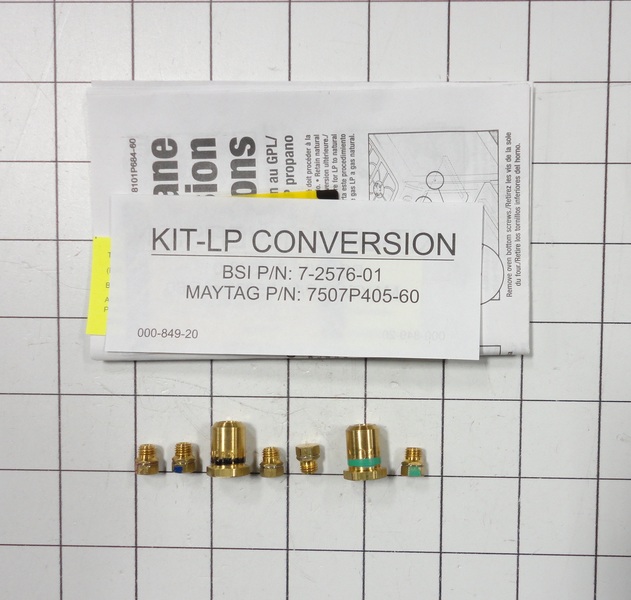

5	74011053	Kit, Lp Orifice (Series: 10)	$33.50 Special Order
6	MK71FILLW	Kit, Extrusion Filler (wht) (Series: 10)	$77.90 Special Order
7	UXA1100AAW	Kit, Side Panel (wht) (Series: 10)	$144.60 Special Order
