GE GTDP280ED5WW Parts List

Popular Searches: (Click to search)    and  asm  bearing  clip  door  drum  filter  handle  knob  limit  lint  motor  pts  ring  sleeve  switch  thermostat  timer  top  white


Select a Diagram

1 - Backsplash, Blower & Motor Assembly

2 - Front Panel & Door

3 - Cabinet & Top Panel

4 - Drum

Select Diagram ... 1 - Backsplash, Blower & Motor Assembly 2 - Front Panel & Door 3 - Cabinet & Top Panel 4 - Drum

4 - Drum   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
240	WE1M280	Screw	$10.50 Special Order
502	WE2M174	Screw # 10	$10.50 Special Order

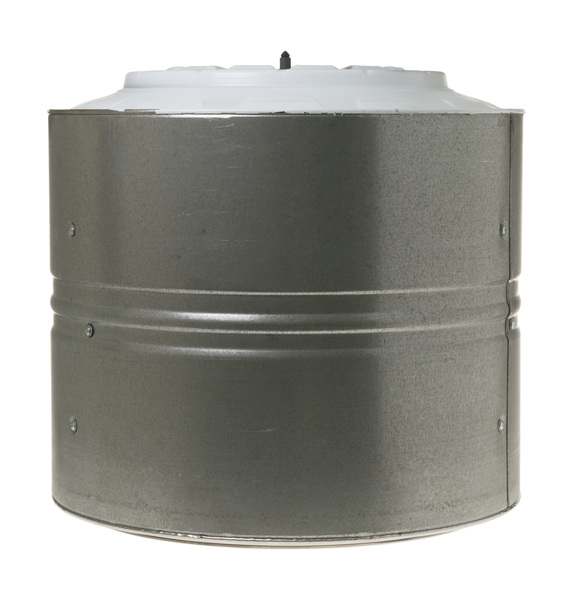

503	WE21X22675	Drum Asm	$422.40 Special Order
504	WE11X29438	Diffuser (Replaces: WE14X20408)	$32.10  In-Stock Retail: $31.31
505	WE4M160	Thermostat Safety Left	$163.40  In-Stock Retail: $159.36
506	WE4M181	Thermostat Bias Ctr Inlt	$20.60  In-Stock Retail: $60.99
507	WE4M137	Thermostat Hi-limit	$70.50  In-Stock Retail: $91.49
508	WE0X181L	Shaft	Call for Availability
509	WE14X20683	Baffle	$28.40 Special Order
510	WE1M780	Protection Bracket	$10.50 Special Order
512	WE11X20397	Mica Heater & Housing As	$178.70  In-Stock Retail: $174.33
513	WE11M10002	Heater Housing	$29.60 Special Order
514	WE11M10001	Mica Heater	$201.40 Special Order
515	WE1M1015	Ground Strap Asm	$13.80 Special Order
534	WE2M163	Screw #10	$10.50  In-Stock Retail: $10.22
3102	WE1M300	Bearing Retainer	$35.90  In-Stock Retail: $34.94
3106	WE1M462	Sleeve Drum	$17.40  In-Stock Retail: $24.48
3127	WE1M461	O Ring	$10.50  In-Stock Retail: $10.22
