GE GTDP280ED5WW Parts List

Popular Searches: (Click to search)    and  asm  bearing  clip  door  drum  filter  handle  knob  limit  lint  motor  pts  ring  sleeve  switch  thermostat  timer  top  white


Select a Diagram

1 - Backsplash, Blower & Motor Assembly

2 - Front Panel & Door

3 - Cabinet & Top Panel

4 - Drum

Select Diagram ... 1 - Backsplash, Blower & Motor Assembly 2 - Front Panel & Door 3 - Cabinet & Top Panel 4 - Drum

3 - Cabinet & Top Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
2	WE02X20422	Screw 8-18x7 16	$10.00 Special Order
75	WE2M173	Screw	$10.50 Special Order
80	WE4M255	Resistor	$28.00  In-Stock Retail: $27.95
222	WE20X20412	Bottom Cover	$99.50 Special Order
227	WE1M723	Rear Heat Sheild	$20.20 Special Order
231	WD02X10057	Screw	$10.50  In-Stock Retail: $10.22
235	WE2M307	Scr 10-16 X 1/2 Ab	$10.50 Special Order
236	WE01X29357	Levelling Foot	$17.10  In-Stock Retail: $16.59
237	WD02X10057	Screw (Replaces: WE2M154)	$10.50  In-Stock Retail: $10.22
250	WE2M223	Screw	$10.50 Special Order
254	WE2X21976	Scr 6-20 Ab Pnp#2 1	$10.50 Special Order
271	WE1M1030	Shield Bottom Cover	$17.60 Special Order
401	WE20X20417	Cover White	$83.70  In-Stock Retail: $81.63
403	WE2M160	Screw #8	$10.50  In-Stock Retail: $10.22
404	WE20X20406	Side Panel White	$47.00 Special Order
408	WE20X20391	Chassis Base	$88.40 Special Order

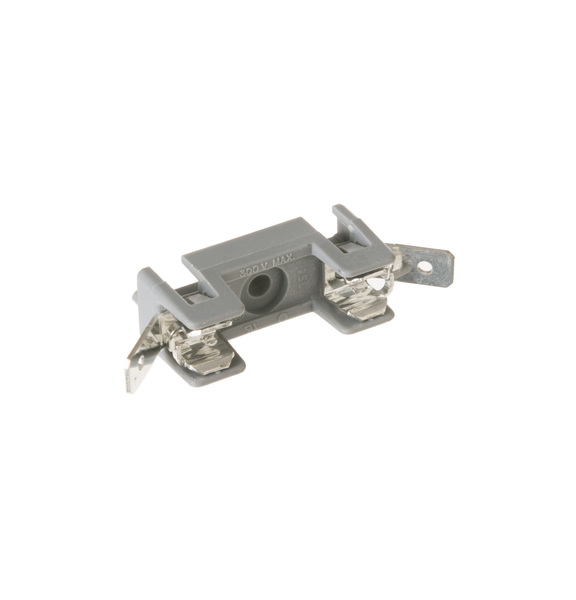

417	WE1X21955	Fuse Holder 3ab	$22.80 Special Order
418	WE1X21975	Fuse 3ab	$23.00  In-Stock Retail: $22.37
419	WE4M325	Term Blk & Grnd Strap	$20.70 Special Order

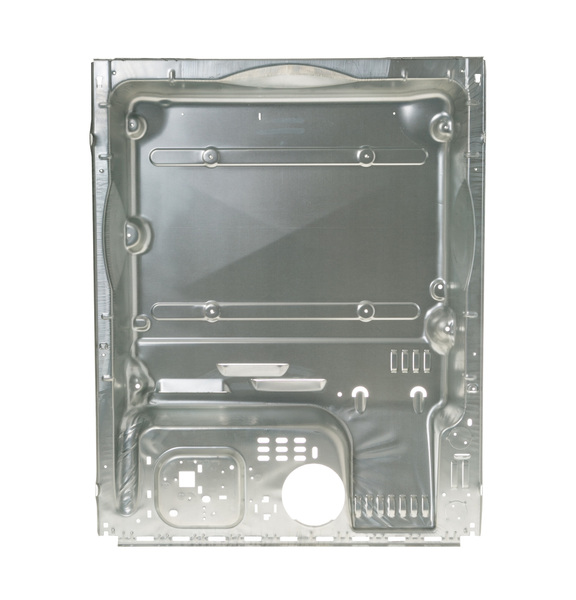

420	WE20X22496	Panel Rear Leadership	$75.60 Special Order
430	WE1M1007	Cover Fuse Terminal	$25.30 Special Order
431	WE01X20423	Strain Relief Bracket El	$10.50 Special Order
461	WZ05X0158	Screw 8-32x3/8 Grd Scr	Call for Availability
3204	WZ4X241D	Scr (Replaces: WH2M270)	$21.80  In-Stock Retail: $21.25
