GE GFDN110GD1WW Parts List

Popular Searches: (Click to search)    120v  amp  asm  ccmr  control  conversion  detector  door  drum  fuse  idler  kit  lamp  limit  motor  pulley  ring  sleeve  switch  thermostat


Select a Diagram

1 - Controls & Backsplash

2 - Front Panel

3 - Door

4 - Cabinet & Top Panel

5 - Blower & Motor

6 - Drum

7 - Gas Valve & Burner Assembly

Select Diagram ... 1 - Controls & Backsplash 2 - Front Panel 3 - Door 4 - Cabinet & Top Panel 5 - Blower & Motor 6 - Drum 7 - Gas Valve & Burner Assembly

4 - Cabinet & Top Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
72	WE01M10003	Shield Front	$54.90 Special Order
222	WE1M585	Rear Plate	$116.20 Special Order
236	WE1M642	Levelling Screw Gray	$12.00  In-Stock Retail: $11.70
401	WE20M10004	Panel Top	$77.00 Special Order
404	WE20M400	Side Panel Wh	$172.30 Special Order

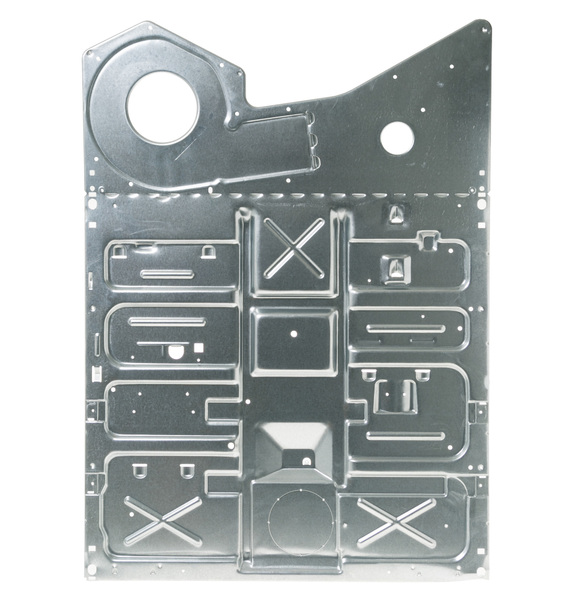

408	WE20M429	Bottom Chassis Base	$154.00 Special Order
410	WE1M528	Rear Bracket Level Leg	$13.40 Special Order
411	WE1M468	Levelinglegasm	$20.30 Special Order
420	WE20X20443	Panel Rear	$94.20 Special Order
421	WE26M345	Power Cord (120v Gas)	$44.90 Special Order
422	WE1M155	Clip Cordset	$3.70 Special Order
456	WE1X617	Pipe Clamp	$9.30 Special Order
461	WZ05X0158	Screw 8-32x3/8 Grd Scr	Call for Availability
813	WE1M1002	Fuse Ccmr 30 Amp 120v	$31.30  In-Stock Retail: $62.09
814	WE1M1003	Holder Fuse	$39.00  In-Stock Retail: $37.97
3365	WE04M10013	Main Power Board Asm	$233.70 Special Order
3366	WE1M864	Main Power Board Support	$57.20 Special Order
3402	WE1M758	Enclosed Screw Grommet	$6.20 Special Order

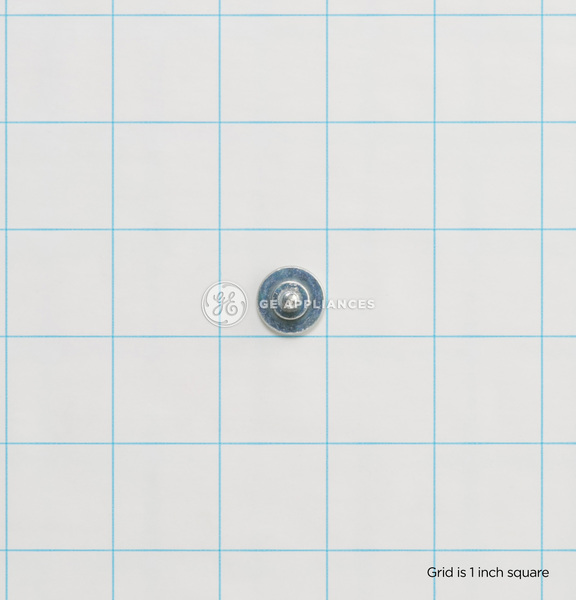

3433	WE2M278	Scr 8-18 Ab Pnq2 1/4 S Z	$10.60  In-Stock Retail: $10.26
3440	WE2M173	Screw	$10.50 Special Order
3443	WE1M280	Screw	$10.50 Special Order
