GE GNS23GSHBFSS Parts List

Popular Searches: (Click to search)    120v  40w  asm  blade  bumper  compression  cond  connector  cyst  fan  filt  icemaker  lamp  motor  ref  ring  sensor  temp  union  water


Select a Diagram

1 - Doors

2 - Freezer Section

3 - Freezer Shelves

4 - Fresh Food Section

5 - Fresh Food Shelves

6 - Case Parts

7 - Machine Compartment

Select Diagram ... 1 - Doors 2 - Freezer Section 3 - Freezer Shelves 4 - Fresh Food Section 5 - Fresh Food Shelves 6 - Case Parts 7 - Machine Compartment

7 - Machine Compartment   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
175	WR01X10652	Screw 8-18 Ab Ihw 5/8 S	$10.50 Special Order
193	WR02X11426	Tube Drain	$14.50 Special Order
194	WR01X10684	Clamp Cable	$10.50 Special Order
206	WR02X12377	Clip Drain Tube	$10.50  In-Stock Retail: $10.22
215	WR02X10663	Stand Off	$10.50 Special Order
312	WR02X10695	Wheel Mobility	$10.60 Special Order
614	WR02X10540	Bumper	$10.50  In-Stock Retail: $10.22
616	WR82X10103	Cover Access	$80.10 Special Order
618	WR02X10520	Grommet Fan Motor	$12.00 Special Order
626	WR23X10300	Power Cord (Replaces: WR23X108)	$25.10 Special Order
628	WR17X12668	Shroud Condenser	$46.90  In-Stock Retail: $45.71
650	WR60X10209	Motor Dc Cond Fan (Replaces: WR60X10216)	$73.40  In-Stock Retail: $109.76
651	WR60X24484	Blade Cond Fan Asm (Replaces: WR60X10206)	$25.20  In-Stock Retail: $24.54
652	WR02X12149	Ring Compression	$10.50  In-Stock Retail: $10.22
683	WR02X11027	Wire Tie	$10.50 Special Order
684	WR01X10654	Screw 10-32 Tt Hxw 5/16	$10.50 Special Order
690	WZ5X158D	Scr 8-32 T Hxw 3/8 S	$28.40 Special Order
691	WR02X10593	Bracket Cond Fan (rear)	$14.70 Special Order
725	WR87X10224	Compressor Kit Egys60	$704.30 Special Order
729	WR55X24064	Capacitor	$56.40  In-Stock Retail: $54.96
730	WR84X10022	Prod Serv Condenser	$589.50  In-Stock Retail: $589.44
734	WR02X22564	Clip Retainer Combo	$10.50 Special Order
735	WR08X21100	Tsd Combo	$79.40  In-Stock Retail: $77.37
736	WR2X8203	Clip Compressor Mount	Call for Availability
737	WR02X22869	Grommet	$10.50 Special Order
740	WR86X25269	P/s Dryer Kit R134a   (Replaces: WR86X96)	$63.10  In-Stock Retail: $61.47
741	WR1X1779	Stud Mtg Compr	$10.50 Special Order
742	WR02X10587	Support Condenser	Call for Availability
743	WR02X10588	Support Condenser	Call for Availability
749	WR17X13160	Baffle Cond Air	$16.60 Special Order
750	WR1X1786	Scr 10-32 Tr 1/2	$10.50 Special Order
753	WR02X11863	Brkt Cond Fan (mtg)	$10.30 Special Order
762	WR14X10199	Foam Strip Se Adh	$14.50 Special Order
764	WR2X9000	Clip, Cond Mnt	$10.50 Special Order
765	WR17X10763	Bracket Condenser Bar	$13.10 Special Order
775	WR17X13124	Cover Water Line	$10.50 Special Order
800	WR57X33326	Water Valve Assy W/o Gua (Replaces: WR57X10032 WR57X10040)	$90.10  In-Stock Retail: $137.00

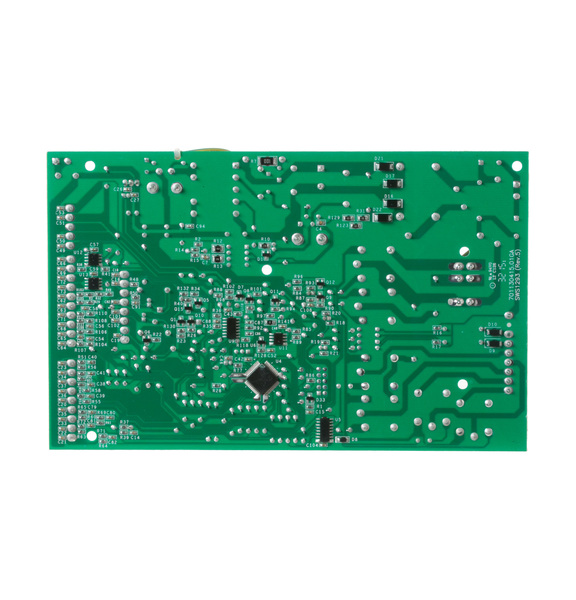

801	WR55X23924	Board Asm Main Control	$144.00  In-Stock Retail: $140.40
802	WR23X10510	Harness Board Indiv	$21.80 Special Order
803	NLA ITEM	Cover Main Board Asm	Call for Availability
916	WR02X13569	Sound Damper	$10.50 Special Order
917	WR02X13573	Sound Damper	$10.50 Special Order
