GE HPS15BTHCRWW Parts List

Popular Searches: (Click to search) 15amp 40watt asm blade bumper cond control cover def defrost evap fan grommet kit rplcmt socket terminal thermostat wr30x10093

Select a Diagram

1 - Doors

2 - Freezer Section

3 - Fresh Food Section

4 - Fresh Food Shelves

5 - Machine Compartment

6 - Ice Maker

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
5	WR55X25825	Harness Jumper Fuse	Call for Availability

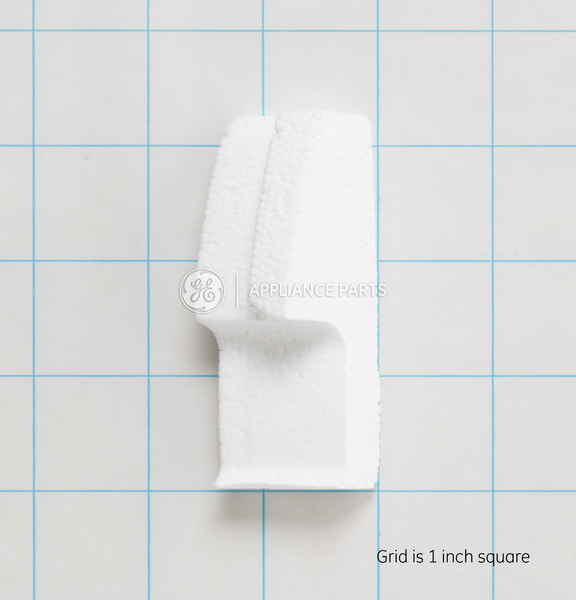

6	WR02X21423	Actuator Air Foam	Call for Availability
113	WR01X21159	Plug Button Im White	Call for Availability
201	WR17X29343	Cover Evap Asm	Call for Availability
214	WR02X11760	Plug Button	Call for Availability
225	WR71X21169	Shelf Wire Fz	Call for Availability
296	WR02X11123	Cover Im Receptacle	Call for Availability
607	WR21X30022	Bracket Evap Fan Rear (Replaces: WR21X10152)	Call for Availability
610	WR60X31522	Motor Ac/dc Evap Fan (Replaces: WR60X23584 WR60X10346)	Call for Availability
613	WR60X10204	Blade Evap Fan Asm	Call for Availability
614	WR02X10540	Bumper	Call for Availability
617	WR02X12008	Grommet Evap Fan	Call for Availability
618	WR09X21107	Heater Def Asm	Call for Availability
620	WR50X10071	Thermostat Def (Replaces: WR50X22304)	Call for Availability
621	WR02X13678	Holder Element Asm	Call for Availability
622	WR17X30031	Trough Drain	Call for Availability
645	WR17X29343	Tower Air	Call for Availability
685	WR01X10606	Scr 8-18 Ab Hxw 3/4 Wh (Replaces: WR1X1804)	Call for Availability
687	WR01X10589	Scr 8-15 Ab Ihxw 1/2 S	Call for Availability
726	WR87X28948	Evap And Tube Asm	Call for Availability
753	WR21X30013	Bracket Evap Fan Frt (Replaces: WR02X10516)	Call for Availability
758	WR01X10860	Scr 8-32 Tt Hxw 3/8 S	Call for Availability
