GE PSE26KSEFESS Parts List

Popular Searches: (Click to search)    asm  assy  bracket  cyst  defrost  door  fan  filt  heater  imkitwr30x10061  motor  pack  recess  ref  sensor  solenoid  temp  temperature  thermostat  water


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Evaporator Instructions

5 - Freezer Shelves

6 - Ice Maker & Dispenser

7 - Fresh Food Section

8 - Fresh Food Shelves

9 - Machine Compartment

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Evaporator Instructions 5 - Freezer Shelves 6 - Ice Maker & Dispenser 7 - Fresh Food Section 8 - Fresh Food Shelves 9 - Machine Compartment

7 - Fresh Food Section   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
10	WR01X10065	Screw 10-32 Gxtt Flp 595	$10.50 Special Order
151	WR01X10588	Scr 8-18 Ab Ihxw 9/16 S	$10.50 Special Order
203	WR17X12879	Cover Water Filter	$99.00 Special Order
204	WR02X12187	Support Shelf	$10.50  In-Stock Retail: $10.22
	WR02X12188	Support Shelf	$10.50  In-Stock Retail: $10.22
205	WR02X10678	Grommet	$10.50  In-Stock Retail: $10.22
206	WR02X10671	Grille Air Return	Call for Availability
207	WR17X10909	Cover Inlet Discharge	$43.30 Special Order
211	WR01X10568	Scr8-18 Ab Ufl 1 1/2 Ss	$10.50  In-Stock Retail: $10.22
212	WR02X10689	Grommet Base Grill	$10.50 Special Order
234	WR02X10647	Grille Sensor	$10.60 Special Order
235	WR02X10668	Shunt Sensor	$10.50  In-Stock Retail: $10.22
236	WR55X10025	Sensor Temperature (Replaces: WR55X10939)	$15.30  In-Stock Retail: $27.09
237	WR55X10025	Sensor Temperature (Replaces: WR55X10937)	$15.30  In-Stock Retail: $27.09
256	WR17X12871	Cover Led	$16.40 Special Order
263	WR02X12263	Pin Hinge Btm Adj Hollow	$33.90 Special Order
404	WR17X11609	Diverter Air	$39.30 Special Order

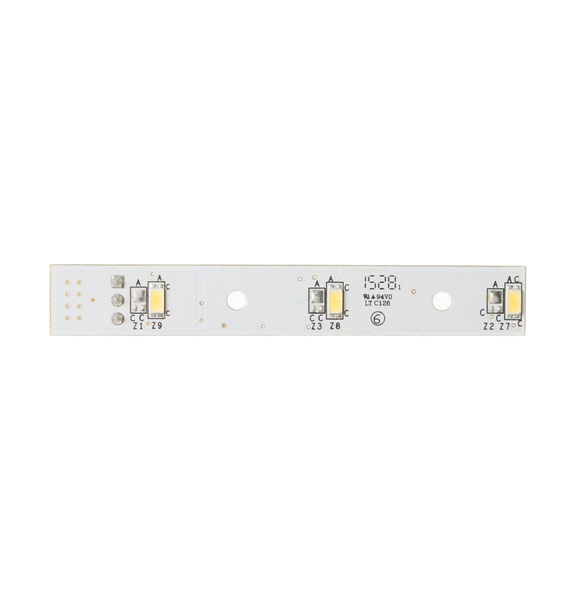

432	WR55X11032	Board Led Light Asm	$75.00 Special Order
449	WR13X20431	Hinge Top & Pin Asm	$28.40 Special Order
451	NLA ITEM	Hinge Btm	Call for Availability
458	WR17X12881	Cover Ff Inlet	$57.40 Special Order
460	WR49X10251	Cover Asm Ff Inlet	$221.40  In-Stock Retail: $215.93
552	WR01X10792	Scr 12-24 Tt Hx 7/8 S	$10.50 Special Order
609	WR23X31507	Switch Light   (Replaces: WR23X23343 WR23X10530)	$11.60  In-Stock Retail: $11.30
727	WR17X12295	Separator Air Hiside	$33.20 Special Order
790	MWFP	Water Filt Ref Cyst (Replaces: MWF)	$47.90  In-Stock Retail: $76.56
791	WR17X22070	Cap Filter Bypass (Replaces: WR02X11705)	$10.10 Special Order
792	WR02X45206	Filter Assy And Tube   (Replaces: WR17X11618 WR17X20860 WR17X11028)	$63.00  In-Stock Retail: $61.40
810	WR17X11440	Water Tank Disp Asm	$35.80  In-Stock Retail: $44.80
811	WR02X11288	Insul Tube Foam	$55.10 Special Order
812	WR17X2891	Tube Plastic (Replaces: WR17X11439)	$28.20  In-Stock Retail: $27.42
813	WR17X11620	Insulation Tank Foam	$20.20 Special Order
842	WR11X10009	Lever Assy Ff Side Black	$24.20  In-Stock Retail: $23.55
847	WR1X2027	Spring Closure	$38.20 Special Order
855	WR02X13091	Duct Asm Ff Transition	$25.10 Special Order
