Maytag MHW5100DC0 Parts List

Popular Searches: (Click to search)    2oz  accessory  and  assembly  door  hoses  inlet  lock  paint  parts  pressure  pressurized  rubber  sensor  spray  straight  touch  valve  washers  white


Select a Diagram

02 - Top And Cabinet Parts

03 - Door Parts

04 - Control Panel Parts

05 - Dispenser Parts

06 - Tub And Basket Parts

07 - Optional Parts (not Included)

01 - Cover Sheet

Select Diagram ... 02 - Top And Cabinet Parts 03 - Door Parts 04 - Control Panel Parts 05 - Dispenser Parts 06 - Tub And Basket Parts 07 - Optional Parts (not Included) 01 - Cover Sheet

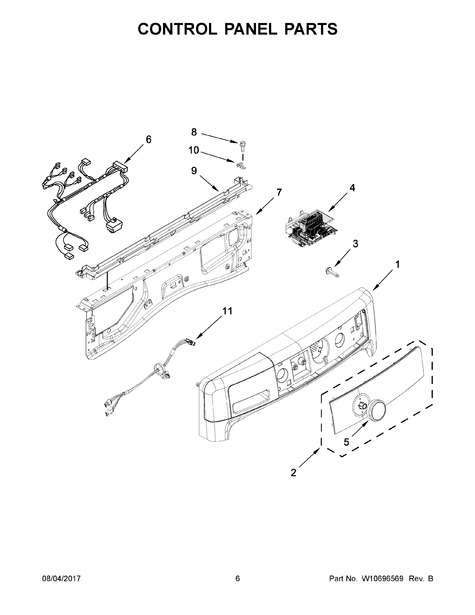

04 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11174376	Assembly, Console (white)	$224.30 Special Order
1A	W11174390	Assembly, Console (chrome Shadow)	$224.30 Special Order
2	W10748420	Assembly, Iml (white)	$498.30 Special Order
2A	W10748421	Assembly, Iml (chrome Shadow)	$513.20 Special Order
3	W10489172	Screw	$7.80 Special Order
4	W11029844	Control Unit, Appliance	$301.40 Special Order
5	W10853910	Assembly, Control Knob (chrome)	$31.80 Special Order
6	W11229597	Harness, Main (upper)	$113.20 Special Order
7	W10208197	Bracket, Console	$109.80 Special Order
8	WP489464	Screw	$4.80 Special Order
9	W11172160	Channel, Water	$43.40 Special Order
10	W10317566	Clip, Spring	$6.60 Special Order
11	WPW10442440	Harness, Ui	$18.50 Special Order
