Maytag MHW3100DW0 Parts List

Popular Searches: (Click to search)    2oz  accessory  and  assembly  door  hoses  inlet  kit  lock  paint  parts  pressure  pressurized  sensor  spray  stack  straight  touch  valve  white


Select a Diagram

02 - Top And Cabinet Parts

03 - Door Parts

04 - Control Panel Parts

05 - Dispenser Parts

06 - Tub And Basket Parts

07 - Optional Parts (not Included)

01 - Cover Sheet

Select Diagram ... 02 - Top And Cabinet Parts 03 - Door Parts 04 - Control Panel Parts 05 - Dispenser Parts 06 - Tub And Basket Parts 07 - Optional Parts (not Included) 01 - Cover Sheet

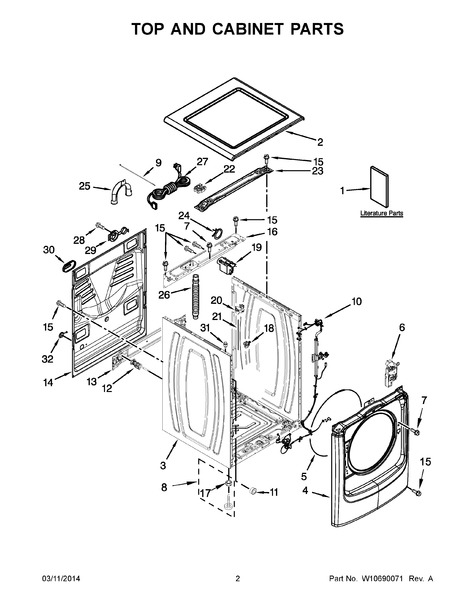

02 - Top And Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10631155	Installation Instructions	Call for Availability
	W10661536	Energy Guide	Call for Availability
	W10649235	Owners Manual	Call for Availability
	W10602465	Tech Sheet	Call for Availability
2	WPW10208373	Top (white)	$179.30 Special Order
3	W11166595	Cabinet (white)	$240.10 Special Order
4	WPW10650837	Panel, Front (white)   (Replaces: W10650386)	$209.30 Special Order
5	W11266654	Retainer, Bellow To Front Panel (Replaces: WPW10237503 W10237503)	$19.10  In-Stock Retail: $18.63
6	WPW10443885	Lock, Door (Replaces: W10443885)	$97.30  In-Stock Retail: $94.87
7	WP8540282	Screw (Replaces: 8540282)	$7.60  In-Stock Retail: $7.38
8	W10888529	Leveling Leg Assembly	$7.90  In-Stock Retail: $7.63
9	WPW10339879	Tie, Cable	$4.80 Special Order
10	W10746378	Harness, Wiring (lower Main)	$105.80 Special Order
11	W10323182	Spacer, Front Panel	$48.10 Special Order
12	W10763470	Bolt, Shipping (upper)	$28.00 Special Order
	W10763470	Bolt, Shipping (lower)	$28.00 Special Order
13	W10237498	Brace, Transport	$44.50 Special Order
14	W10386103	Panel, Rear   (Replaces: W10568353)	$123.10 Special Order
15	W11573574	Screw	$8.70  In-Stock Retail: $8.47
16	WPW10467483	Brace, Rear	$20.20 Special Order
17	WP3359452	Nut, Hex (Replaces: 3359452)	$4.80  In-Stock Retail: $4.59
18	WPW10181028	Clip, Pressure Switch Hose	$11.60 Special Order
19	WPW10367632	Filter, Interference (Replaces: W10367632)	$77.00  In-Stock Retail: $75.07
20	WPW10448876	Sensor, Pressure (Replaces: W10448876)	$53.10  In-Stock Retail: $51.72
21	W11044558	Hose, Pressure Switch	$19.40 Special Order
22	W10245452	Retainer, Spring	$25.90 Special Order
23	W10467484	Brace, Top	$26.00 Special Order
24	WP356138	Clamp, Hose (Replaces: 356138)	$4.80 Special Order
25	WPW10280024	U-bend, Drain Hose (Replaces: W10280024)	$47.90  In-Stock Retail: $46.69
26	W11281268	Hose, Drain (external)   (Replaces: W10267638)	$25.80  In-Stock Retail: $25.09
27	W11035353	Power Cord	$78.60 Special Order
28	WP3351614	Screw	$4.80 Special Order
29	W10854051	Cover, Power Cord-transport	$13.60 Special Order
30	WP8540268	Cover, Transport	$4.80  In-Stock Retail: $4.59
31	W10208380	Screw, Bush Assembly	$43.30 Special Order
32	W10304004	Cover, Power Cord	$43.40 Special Order
