Frigidaire FFHT1725PS4 Parts List

Popular Searches: (Click to search)    air  blade  capacitor  control  defrost  diffuser  door  evaporator  fan  hanger  hinge  meat  nylon  pan  rack  red  run  screw  timer  washer


Select a Diagram

03 - Doors

05 - Cabinet

07 - Shelves

09 - System

01 - Cover

10 - Wiring Schematic

11 - Wiring Diagram

Select Diagram ... 03 - Doors 05 - Cabinet 07 - Shelves 09 - System 01 - Cover 10 - Wiring Schematic 11 - Wiring Diagram

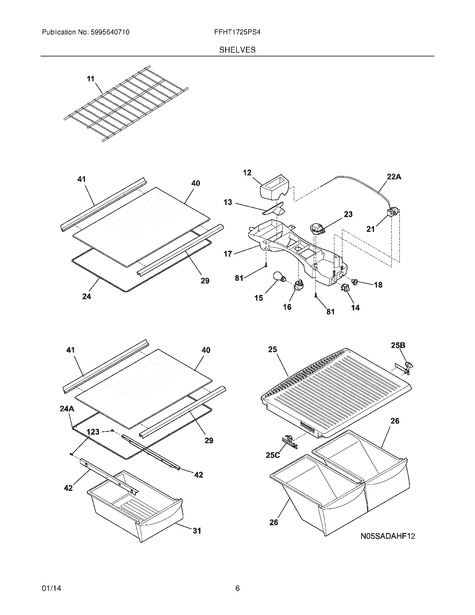

07 - Shelves   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
11	240358007	Shelf,freezer	$63.10 Special Order
12	241542001	Diffuser,air ,top	$53.90  In-Stock Retail: $52.49
13	240362601	Diffuser-air,bottom	$30.30  In-Stock Retail: $29.49
F14	241554901	Switch-light/lamp	$51.30  In-Stock Retail: $49.99
F15	316538904	Light Bulb (Replaces: 241555401)	$11.87  In-Stock Retail: $13.49
F16	241559801	Socket-light	$51.80  In-Stock Retail: $50.49
17	240368003	Control Box	$88.50 Special Order
18	240360801	Knob-temp Control	$31.80  In-Stock Retail: $30.99
F21	241537103	Control-temperature (Replaces: 5304421256)	$101.50  In-Stock Retail: $101.49
22A	240468202	Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201)	$6.20 Special Order
F23	215846604	Timer-defrost (Replaces: 241809402 241809401)	$17.50  In-Stock Retail: $16.99
24	240372401	Frame,sliding Shelf ,full Width	$68.70 Special Order
24A	240372404	Frame,sliding Shelf ,full Width ,w/hanger Tabs	$69.70  In-Stock Retail: $67.99
25	242120508	Cover-crisper Pan	$127.10  In-Stock Retail: $123.99
25B	241613501	Control-humidity,rh	$8.80  In-Stock Retail: $8.49
25C	241613502	Control-humidity,lh	$32.30 Special Order
26	240364503	Pan-crisper,(2)	$120.50  In-Stock Retail: $117.49
29	240357703	Trim-shelf,front	$46.20  In-Stock Retail: $44.99
31	240530811	Pan-meat,w/o Graphics ,clear	$131.20  In-Stock Retail: $127.99
40	240350619	Panel,glass Shelf ,full Width	$106.60  In-Stock Retail: $103.99
41	240561501	Trim-shelf,22.16`` ,rear	$32.30  In-Stock Retail: $31.49
42	240530601	Track,meat Pan Hanger ,lh	$44.60  In-Stock Retail: $43.49
	240530701	Track,meat Pan Hanger ,rh	$44.60  In-Stock Retail: $43.49
81	5304455650	Screw,hex Washer Head ,8-15a X 0.625 ,low Profile	$10.30  In-Stock Retail: $9.99
123	215005101	Screw,hanger/rlr Mtg ,8-10 X 7/16	$10.80 Special Order
FNI	240388701	Wiring Harness,control Box	$58.00 Special Order
NI	241705801	Spacer-shelf	$5.20  In-Stock Retail: $4.99
	240568607	Seal	$9.30 Special Order
	240570304	Tape,aluminum ,3`` Wide	$21.10 Special Order
	5304455649	Screw,pan Hd ,6-20 X 0.438	$12.30 Special Order
	5303299664	Spacer-shelf	$17.50 Special Order
