Maytag MGT3800XW2 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    agitator  and  belt  clutch  coil  complete  coupling  dog  door  drive  fuse  isolation  main  motor  pilot  position  split  switch  terminal  thermal


Select a Diagram

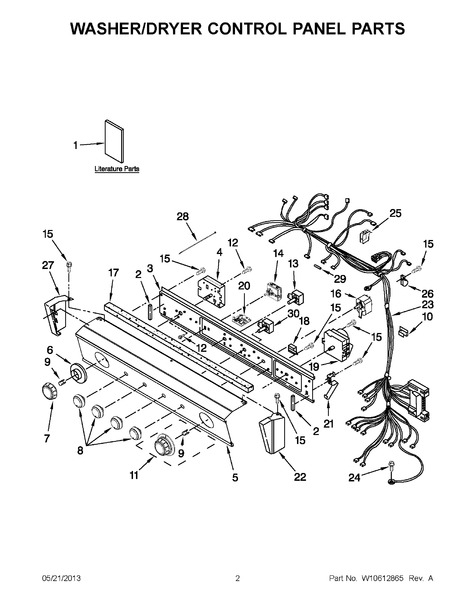

01 - Washer/dryer Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 W10601996 Energy Guide Call for Availability
W10356101 Installation Instructions Call for Availability
W10343072 Use & Care Guide Call for Availability
W10562798 Wiring Diagram Call for Availability
2 3390688 Spacer, Foam Pad $5.40
Special Order
3 W10732070 Bracket, Control $115.80
 In-Stock
Retail: $112.97
4 WPW10124193 WPW10124193 Timer, Washer
(Replaces: W10124193) 		$242.00
Special Order
5 W10339548 Panel, Control $90.00
Special Order
6 W10112571 W10112571 Dial, Timer $33.90
Special Order
7 WPW10110033 WPW10110033 Knob, Timer (washer) (white)
(Replaces: W10110033) 		$39.70
Special Order
8 WPW10110035 WPW10110035 Assembly, Control Knob (white) $40.50
Special Order
9 WP8536939 WP8536939 Clip, Spring
(Replaces: 8536939) 		$4.80
 In-Stock
Retail: $4.59
10 W10134186 Clip, Harness $62.10
Special Order
11 WPW10110036 WPW10110036 Knob, Timer (dryer) (white) $42.00
Special Order
12 W10915367 Screw $4.80
Special Order
13 WPW10544357 WPW10544357 Switch, Pressure (3 Level)
(Replaces: W10544357) 		$129.30
 In-Stock
Retail: $126.11
14 W11103599 W11103599 Switch, Temperature
(Replaces: W10114118) 		$148.70
 In-Stock
Retail: $145.00
15 WP90767 Screw   (Replaces: 90767) $4.80
 In-Stock
Retail: $4.59
16 WPW10117655 WPW10117655 Switch, Push To Start
(Replaces: W10117655) 		$79.60
 In-Stock
Retail: $77.61
17 8521965 Gasket, Console $55.90
Special Order
18 WP694419 Buzzer, Mini   (Replaces: 694419) $86.10
 In-Stock
Retail: $83.91
19 WPW10113816 WPW10113816 Timer, Dryer $207.20
Special Order
20 WPW10476828 WPW10476828 Control, Electronic
(Replaces: W10476828) 		$219.20
 In-Stock
Retail: $213.76
21 3389453 Bracket, Hinge $57.80
 In-Stock
Retail: $56.31
22 3389456 End Cap (right) (white) $40.50
Special Order
23 W10470715 Harness, Dryer Call for Availability
24 W10850756 W10850756 Screw $4.80
 In-Stock
Retail: $4.59
25 W10210799 Clip, Harness $8.50
Special Order
26 7111P002-60 Clamp, Harness $4.40
Special Order
27 3389464 End Cap (left) (white) $21.40
Special Order
28 WPW10334336 Tie, Cable $4.50
Special Order
29 W10368079 W10368079 Hose, Pressure Switch (3-level) $22.90
Special Order
30 W10851055 W10851055 Switch, Rotary
(Replaces: 3949188) 		$104.90
 In-Stock
Retail: $102.26
