GE GLWN5250D1WW Parts List

Popular Searches: (Click to search)    agitator  and  asm  bearing  belt  drain  external  hose  hub  lid  nut  rib  ring  seal  shaft  split  switch  tub  tube  wh1x2727


Select a Diagram

1 - Controls & Backsplash

2 - Cabinet, Cover & Front Panel

3 - Tub, Basket & Agitator

4 - Suspension, Pump & Drive Components

Select Diagram ... 1 - Controls & Backsplash 2 - Cabinet, Cover & Front Panel 3 - Tub, Basket & Agitator 4 - Suspension, Pump & Drive Components

2 - Cabinet, Cover & Front Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
198	WH1X2722	Bumper Lid	$10.50 Special Order
200	WH01X10057	Funnel Bleach	$12.20 Special Order
204	WH1X2741	Bushing Hinge	$10.50 Special Order
205	WH01X10025	Bushing Hinge	$19.90  In-Stock Retail: $19.41
206	WH1X2740	Wireform Hinge (short)	$69.10 Special Order
207	NLA ITEM	Wireform Hinge	Call for Availability
208	NLA ITEM	Bumper Hinge	Call for Availability
209	WH2X1211	Screw	$10.50 Special Order
215	WH12X10276	Magnet Asm	$14.20 Special Order

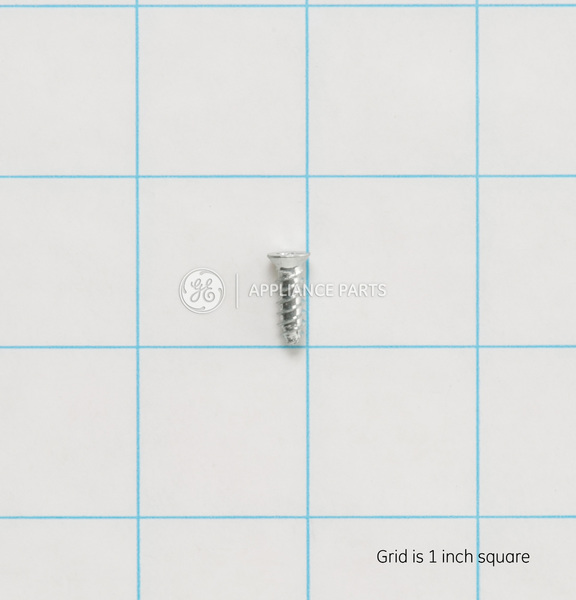

216	WH02X10217	Scr 8-16 B Flp .625 Zn	Call for Availability
218	WH01X10704	Wire Tie/plug	$9.30 Special Order
366	WH46X10270	Weld Asm Rod Support	$201.20 Special Order
369	WH2X1217	Scr 8-18 Ab Ihw 7/16 Sn	$10.50 Special Order
370	WH1X2727	Wh1x2727 (Replaces: WH01X10046)	$22.90  In-Stock Retail: $26.62
371	WH1X2726	Retainer Strap	$16.00  In-Stock Retail: $15.52
373	WH02X10279	Clip Locking	$10.50 Special Order
375	WH46X10281	Panel Front Asm	$92.80 Special Order
377	WH46X344	Shipping Bar Asm	Call for Availability
378	WH1X2745	Button Plug	$10.50  In-Stock Retail: $10.22
380	NLA ITEM	Clip Ground	Call for Availability
381	WH2X1190	Stud Grounding	$9.80 Special Order
383	WH2X1189	Pin Alignment	$10.00 Special Order
384	WH01X10109	Screw 8-15 A 3/4 Sp Hxw	Call for Availability
385	WH01X10422	Cover Clip	$10.50 Special Order
386	WH46X10094	Bar Self Leveling	$56.60 Special Order
387	WH41X10036	Conduit	$10.50 Special Order
388	WH12X10334	Lid Switch Asm	$25.90  In-Stock Retail: $30.08
391	WH44X10027	Cover Asm Finished	Call for Availability
394	WH44X20021	Lid Asm Finished	$62.00 Special Order
395	WH46X10091	Foam Barrier	Call for Availability
417	WH2X694D	Scr 10-12 A Hx 1/2 S (Replaces: WH2X694)	$12.10 Special Order
421	WH46X10145	Base Asm	Call for Availability
431	WH2X1187	Leg Leveling	$20.20 Special Order
432	NLA ITEM	Pin Roll	Call for Availability
559	NLA ITEM	Housing Terminal	Call for Availability
820	WH1X2725	Clip Anti-siphon	$10.50 Special Order
825	WH41X10096	Hose Drain External	$16.50  In-Stock Retail: $20.19
834	WH16X513	Retainer Hose	$10.50  In-Stock Retail: $10.22
835	WH1X2594	Strap (Replaces: WH01X10218)	$10.50 Special Order
836	WH02X10002	Scr 8-18 Ab Ihwp 7/8 S (Replaces: WH02X10162)	$10.50  In-Stock Retail: $10.22
