GE JGB285SET3SS Parts List

Popular Searches: (Click to search)    6+0  bracket  burner  0  cap  ckt  control  gas  glowbar  igniter  lge  mdm  medium  orifice  oven  small  spud  to9  valve  1


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

4 - Door & Drawer Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
143	NLA ITEM	Screw	Call for Availability
200	WB48X21508	Oven Rack	$70.30 Special Order
204	WB1K5062	Screw (blk) (Replaces: WB1K42)	$10.50 Special Order
	WB1X536	Screw - Door Asm (4 Per)	$12.00  In-Stock Retail: $11.66
	WZ04X0345	Screw 8-18x5/8 Hxw	Call for Availability
206	WB01K10091	Screw	$10.60 Special Order
300	WB58K10015	Drawer Body	$93.30 Special Order
306	WB55K10071	Drawer Asm	$87.90 Special Order
312	WB1X119D	Washer Contoured (Replaces: WB1X119)	$14.80  In-Stock Retail: $14.42
314	WB57K10185	Glass Door Asm	Call for Availability
315	NLA ITEM	Liner Asm Weld Door	Call for Availability
317	NLA ITEM	Trim Vent Door (blk)	Call for Availability
318	WB35X29668	Gasket Asm Door   (Replaces: WB04K10022)	$30.70  In-Stock Retail: $29.86
320	WB1K10	Grommet Handle	$10.50 Special Order
	WB02K10161	Spacer	$10.50 Special Order
329	WB1X558D	Screw Nail Point	$21.80 Special Order
330	WB35K22	Reflector 9.5 Inch	Call for Availability
332	WB35K10150	Insulation Bottom Door	$14.90 Special Order
	WB35K10149	Insulation Side Door	$15.90 Special Order
338	WB56K20	Crystal Window	$291.80  In-Stock Retail: $447.05
339	WB56K10037	Guard Insulation Door	$68.20 Special Order
340	WB55K10033	Panel Asm Weld	$87.70 Special Order
343	WB2K68	Glider Drawer	$18.50 Special Order
344	WB39K20	Bracket Mounting Drawer	$10.50 Special Order

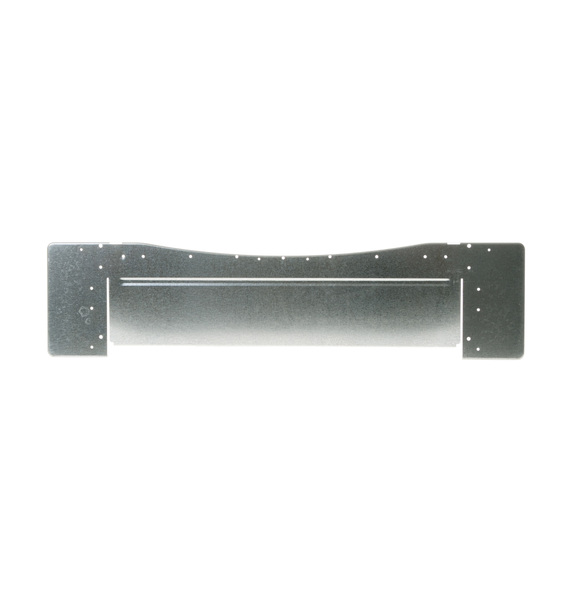

345	WB55K10068	Liner Drawer	$39.50 Special Order
353	WB01K10047	Scr 10-32 Hxw 9/16 S	$10.50 Special Order
354	WB1K62	Screw Mtg End Cap (bk)	$10.50 Special Order
356	NLA ITEM	Clip Window	Call for Availability
361	WB01K10073	Scr 10-16pl Pnt 2.22s Dw	$10.50 Special Order
	WB01K10074	Scr 10-32 Tt Pnt 2.05	$10.50 Special Order
365	WB15T10163	Handle Ss(door)	$125.30 Special Order
376	WB35K23	Deflector Heat	Call for Availability
394	NLA ITEM	Trim Door-(blk)	Call for Availability
400	WB34K10087	Window Spacer Asm	$123.80 Special Order
441	WB7X7182	End Cap Door Lf (bk)	Call for Availability
	WB7X7181	End Cap Door Rt (bk)	Call for Availability
461	WB01K10070	Screw	$10.50 Special Order
