GE PGB930DET3BB Parts List

Popular Searches: (Click to search)    anti  cap  electrode  0  asm  bracket  burner  ckt  glowbar  igniter  lamp  lge  mdm  med  medium  orifice  oven  small  tip  top


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

4 - Door & Drawer Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
44	WB02K10355	Bracket Door	Call for Availability
90	WB02K10330	Bumper Door	$9.30 Special Order
200	WB48X20249	Rack Oven (Replaces: WB48K10034)	$70.40 Special Order
300	WB58K10010	Frame Drawer	$95.50 Special Order
301	WB07K10378	Barrier Door	Call for Availability
306	NLA ITEM	Panel Drawer	Call for Availability
	NLA ITEM	Panel Drawer	Call for Availability
308	NLA ITEM	Handle Profile 30 (wh)	Call for Availability
	WB15T10136	Handle Profile 30 (bk)	$85.00 Special Order
312	WB1X119D	Washer Contoured (Replaces: WB1X119)	$14.80  In-Stock Retail: $14.42
314	NLA ITEM	Glass Door (blk)	Call for Availability
	NLA ITEM	Glass Door (wh)	Call for Availability
317	WB07K10421	Vent Trim	Call for Availability
	WB07K10420	Vent Trim	$81.00 Special Order
318	WB32K10052	Gasket Oven Asm	$61.90 Special Order
319	WB57K10174	Crystal Window	$98.70 Special Order
322	NLA ITEM	Trim Post Rt	Call for Availability
	NLA ITEM	Trim Post Rt	Call for Availability
	WB07K10258	Trim Post Lf	Call for Availability
	NLA ITEM	Trim Post Lf	Call for Availability
331	WB35K10053	Insulation Drawer Front	Call for Availability

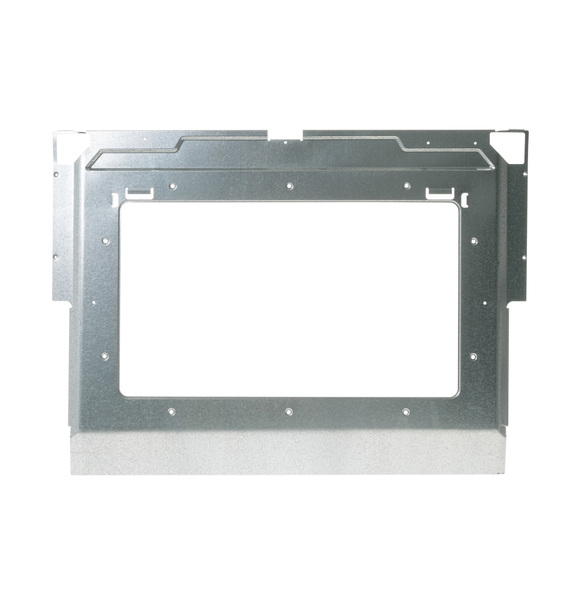

339	WB34K10137	Guard Insulation Door	$53.20 Special Order
340	WB55K10084	Liner Door Weld Assembly	$112.60 Special Order
343	WB39K10027	Slide Internal	$41.40 Special Order
344	WB39K20	Bracket Mounting Drawer	$10.50 Special Order

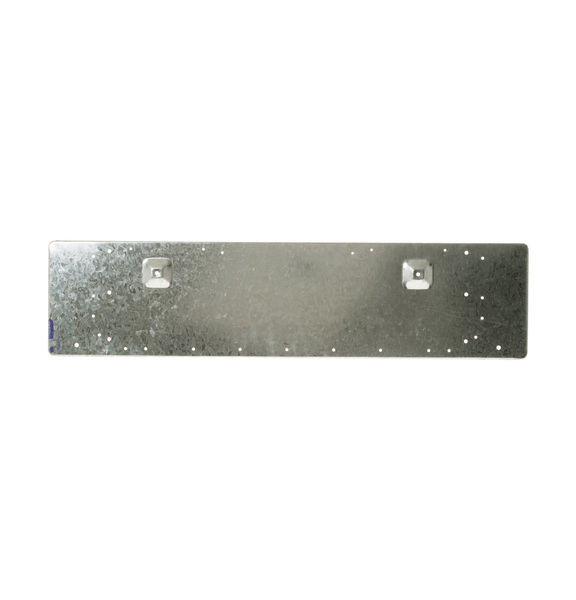

345	WB55K10024	Liner Drawer	$64.60 Special Order

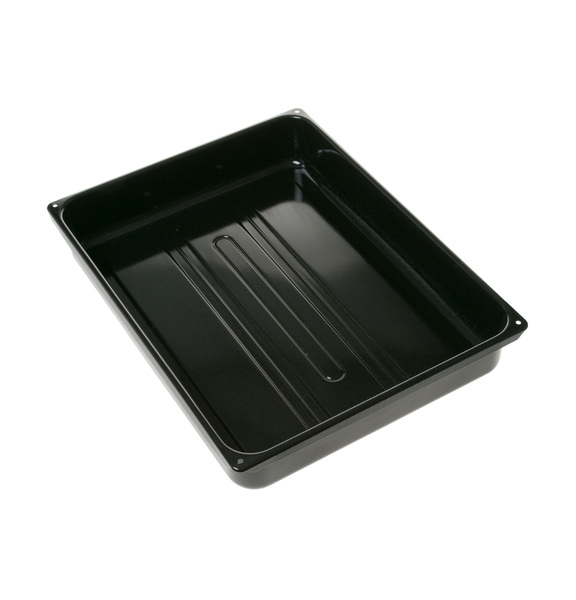

351	WB48K10033	Pan Drawer	$77.40 Special Order

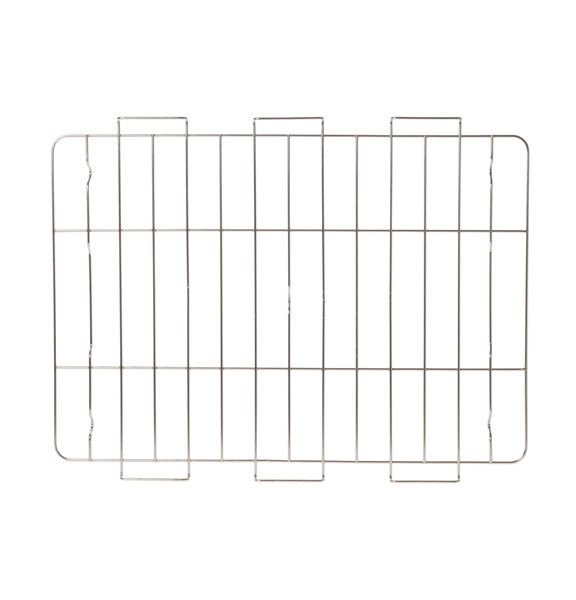

352	WB48K10010	Rack Baking Drawer	$118.90 Special Order
354	WB01K10012	Scr 8-22 Pl 1hx.71	$10.50  In-Stock Retail: $10.22
359	WB07K10250	Trim Bottom Asm	$15.40  In-Stock Retail: $15.02
	WB07K10232	Trim Bottom Asm	$15.70  In-Stock Retail: $15.31
361	WB1X5731D	Screw 10-16 Pl Pnt 2.5 S (Replaces: WB1K31)	$26.80 Special Order
	WB1K65	Screw 10-16	Call for Availability

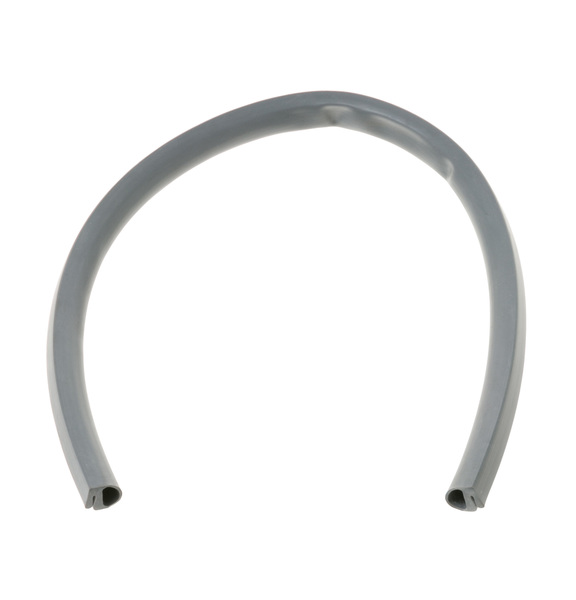

362	WB04K10018	Gasket Lower	$34.20 Special Order
365	NLA ITEM	Handle Prf Door Bk	Call for Availability
	WB15T10141	Handle Prf Door Wh	Call for Availability

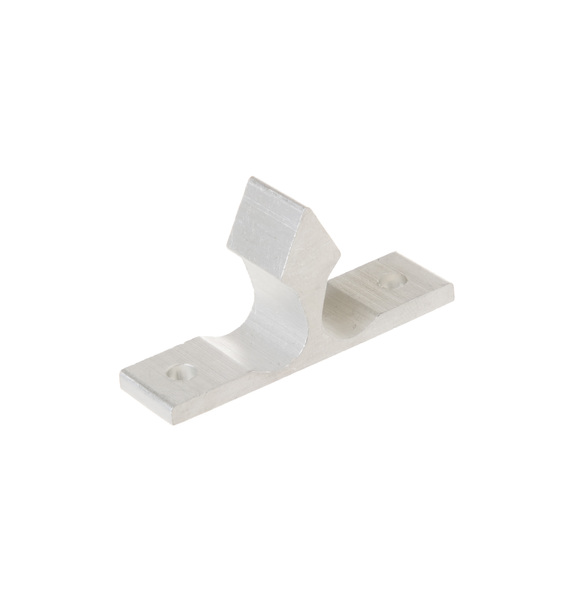

367	WB02K10111	Strike	$17.10 Special Order

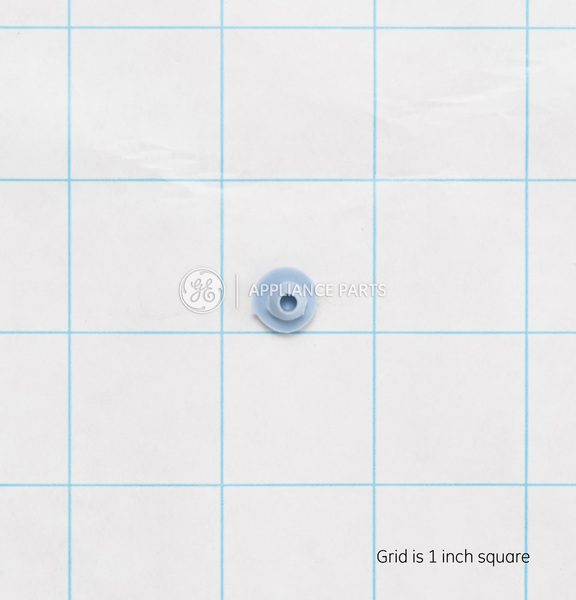

368	WB02K10112	Bumper Blue	$10.50 Special Order
	WB2K15	Bumper, Black	$10.50  In-Stock Retail: $10.22
375	NLA ITEM	Panel Drawer Spacer	Call for Availability
	WB02K10341	Bracket	Call for Availability

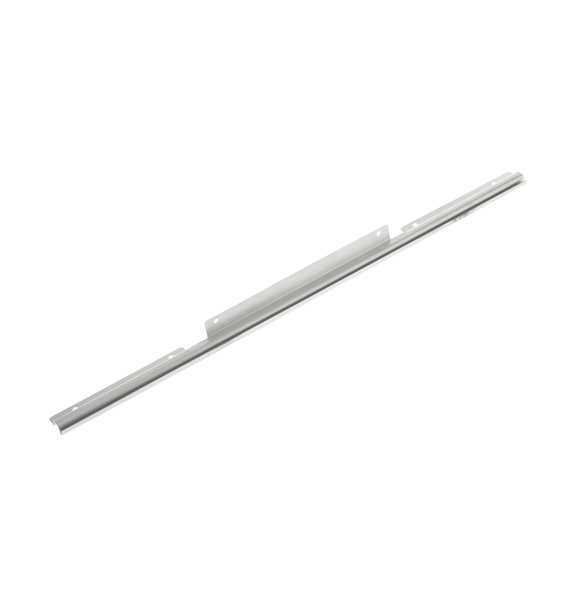

376	WB63K10062	Bracket Drawer	$25.90 Special Order
710	WB1X536	Screw - Door Asm (4 Per)	$12.00  In-Stock Retail: $11.66
800	WB01K10042	Scr 8-18 Ab Ihw 3/8 Sn	Call for Availability
