Maytag 4GMVWX500YW1 Parts List

Popular Searches: (Click to search)    2oz  accessory  belt  drive  hoses  inlet  lid  paint  parts  pressurized  pulley  rubber  splutch  spray  spring  straight  touch  two  washers  white


Select a Diagram

01 - Top And Cabinet Parts

02 - Console And Dispenser Parts

03 - Basket And Tub Parts

04 - Gearcase, Motor And Pump Parts

05 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Cabinet Parts 02 - Console And Dispenser Parts 03 - Basket And Tub Parts 04 - Gearcase, Motor And Pump Parts 05 - Optional Parts (not Included)

02 - Console And Dispenser Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10460136	Console	$218.70 Special Order

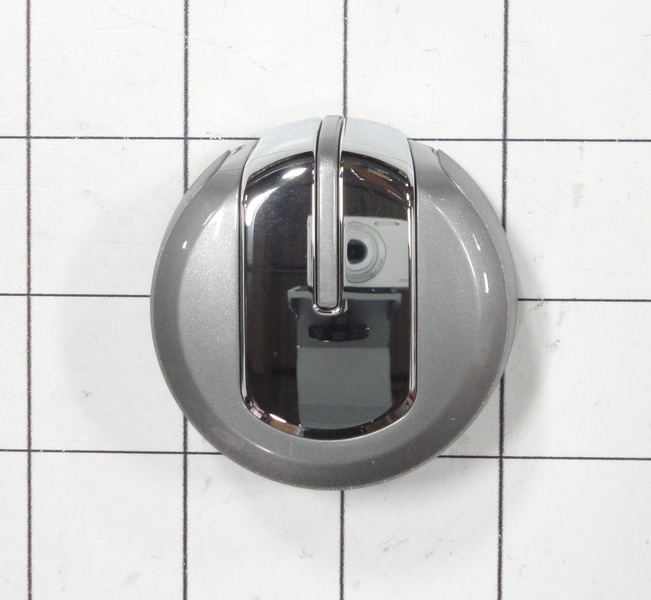

2	WPW10251381	Knob, Control (chrome)	$37.70  In-Stock Retail: $36.70
3	WPW10272630	User Interface	$208.50 Special Order
4	W10853898	Screw	$4.80 Special Order
5	WP8312709	Clip, Console   (Replaces: 8312709)	$12.50 Special Order
6	W10480662	Control Unit Assembly, Machine & Motor	$301.80 Special Order
7	W10420984	Panel, Console Rear Cover	$204.00 Special Order
8	WP488729	Screw	$4.80  In-Stock Retail: $4.59
9	WP489069	Screw	$4.80 Special Order
10	W10280079	Seal, Console	$51.40 Special Order
11	W10453573	Cord, Power	$50.10 Special Order
12	W10846509	Screw	$4.80 Special Order
13	W10601450	Housing Assembly - Dispenser	$176.50 Special Order
14	WPW10240976	Valve, Cold Water Inlet	$123.70 Special Order
15	WPW10240975	Valve, Hot Water Inlet	$107.70 Special Order
16	W10368547	Harness, Valve	$41.00 Special Order
17	W11700520	Screw, Dispenser Housing Mounting	$8.70 Special Order
18	WPW10109200	Screw	$4.80  In-Stock Retail: $4.59
19	W10240946	Bezel, Dispenser	$18.60 Special Order

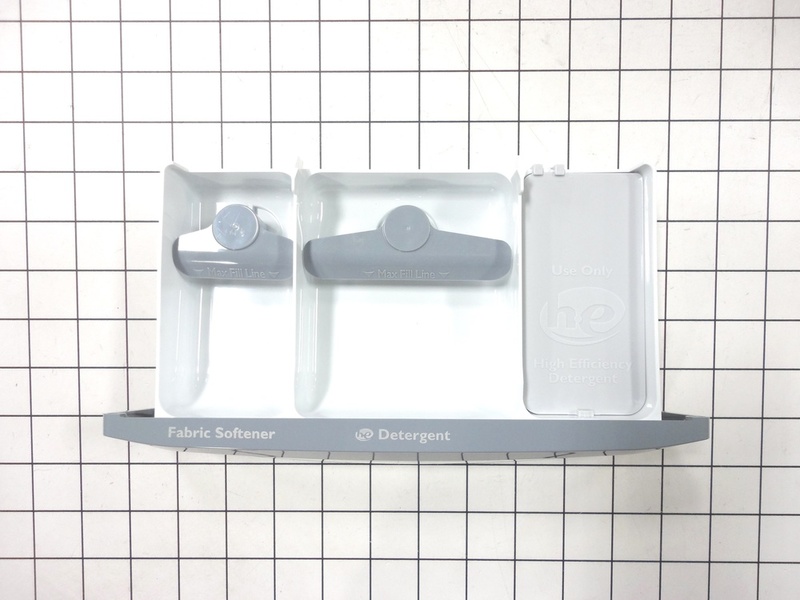

20	WPW10658444	Drawer, Dispenser Assembly (Replaces: W10240960)	$103.20 Special Order
21	W10287478	Handle, Dispenser Drawer Facia	$42.20 Special Order
22	WP9740848	Screw	$4.80 Special Order
23	W10326923	Spacer, Knob	$11.70 Special Order
24	WP8536939	Clip, Spring (Replaces: 8536939)	$4.80  In-Stock Retail: $4.59
25	W10274524	Tensioner-fascia	$9.90 Special Order
26	WP3357450	Washer, Hose Adapter	$7.00 Special Order
27	WP89503	Hose, Water Inlet (cold Water)	$7.80  In-Stock Retail: $11.98
	WP89503	Hose, Water Inlet (hot Water)	$7.80  In-Stock Retail: $11.98
28	W10285493	Cable, User Interface	$70.30 Special Order
29	285452A	Washer, Filter	$5.70 Special Order
30	WPW10269488	Connector, Hose -``y``	$56.80 Special Order
NI	N\P	(parts Not Shown)	Call for Availability
	W10446855	10a Cord Lock	$86.60 Special Order
	WPW10475423	10a Cord Adapter (type B)	$15.00 Special Order
	WPW10476820	10a Cord Adapter (british)	$18.50 Special Order
	WPW10476822	10a Cord Adapter (european)	$50.00 Special Order
