Maytag MEDC200XW3 Parts List

Popular Searches: (Click to search)    accessory  assembly  blower  door  dryer  fuse  kit  motor  paint  parts  pressurized  pulley  repair  roller  spray  support  switch  thermal  thermostat  white


Select a Diagram

01 - Cabinet Parts

02 - Top And Console Parts

03 - Bulkhead Parts

04 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Top And Console Parts 03 - Bulkhead Parts 04 - Optional Parts (not Included)

02 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10103406	Panel, Rear (console)	$83.00 Special Order
2	WP90767	Screw	$4.80  In-Stock Retail: $4.59
3	WP693995	Screw   (Replaces: 693995)	$4.80 Special Order
4	WPW10115474	Assembly, Console Panel & Bracket	$212.50 Special Order
5	W10323734	Assembly, Badge	$40.30 Special Order
6	WP8312709	Clip, Console   (Replaces: 8312709)	$12.50  In-Stock Retail: $12.12
7	WP694419	Buzzer, Mini   (Replaces: 694419)	$86.10  In-Stock Retail: $83.91
8	WP90767	Screw	$4.80  In-Stock Retail: $4.59
9	WP3404233	Switch, Push-to-start   (Replaces: 3404233)	$68.70  In-Stock Retail: $66.97
10	WP688805	Clip, Spring   (Replaces: 688805)	$4.80  In-Stock Retail: $4.59

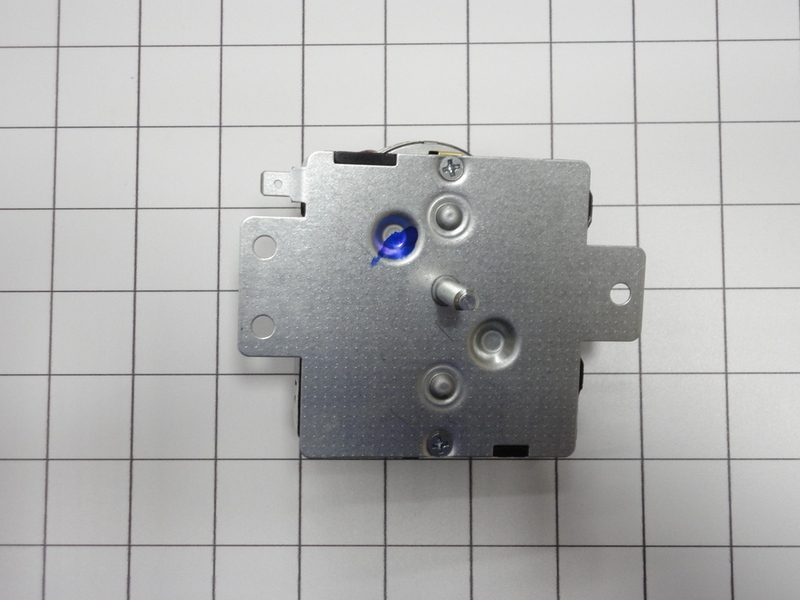

11	WP8299779	Timer, 60 Hz. (Replaces: 8299779)	$208.80  In-Stock Retail: $203.67
12	WPW10717210	Screen, Lint (Replaces: W10641634 8565972)	$41.70  In-Stock Retail: $40.66
13	WPW10225059	Top (white)	$146.10 Special Order
14	WPW10317454	Assembly, Knob (grey)	$42.20  In-Stock Retail: $41.12
15	W11693756	Screw	$8.70 Special Order
16	WPW10317455	Knob, Control (grey)	$40.70 Special Order
17	WPW10193821	End Cap (right) (white)	$45.60 Special Order
18	WPW10193824	End Cap (left) (white)	$45.40 Special Order
19	W10346389	Harness, Wiring	$169.40 Special Order
20	WP8536939	Clip, Spring (Replaces: 8536939)	$4.80 Special Order
