GE ZBD8900V00II Parts List

Popular Searches: (Click to search)    and  arm  asm  cable  cap  drain  flood  gasket  hinge  impeller  inlet  kit  link  module  rinse  switch  tub  tube  valve  water


Select a Diagram

1 - Escutcheon & Door Assembly

2 - Body Parts

3 - Upper Rack Assembly

4 - Lower Rack Assembly

5 - Motor-pump Mechanism

Select Diagram ... 1 - Escutcheon & Door Assembly 2 - Body Parts 3 - Upper Rack Assembly 4 - Lower Rack Assembly 5 - Motor-pump Mechanism

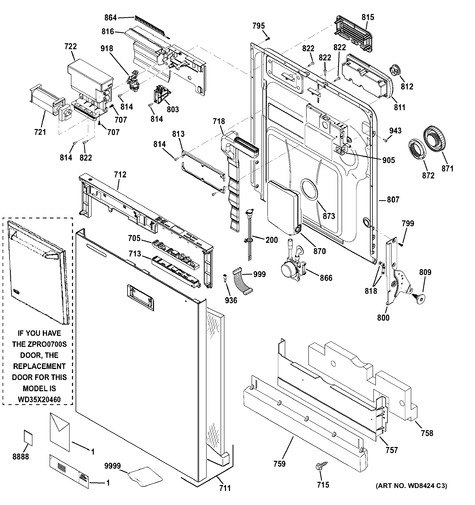

1 - Escutcheon & Door Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-30636	Pm Sheet Mini Manual	Call for Availability
	31-30284	Pm Install Instructions	Call for Availability
	31-30569-4	Pm Custom Panel Template	Call for Availability
	49-55079	Pm Manual Use & Care	Call for Availability
	WD02X10208	Scr 10-32 Tt Hxw 7/16 S	$10.00 Special Order
200	WD01X10547	Tco Assembly	$80.10 Special Order
705	WD01X10619	Button Asm Silicone Ss	$106.20 Special Order
707	WH02X10002	Screw 8-18 Ab Ihwp 7/8 S	$10.50  In-Stock Retail: $10.22
711	WD34X11722	Panel Asm Outer	Call for Availability
712	WD27X10382	Sevice Kit For Fff-ss	$911.80 Special Order
713	WD31X10132	Tactile Asm Housing	$394.20 Special Order
715	WD02X10085	Screw 8-18 B 1hw 1/2 S N	$10.50 Special Order
	WH02X10126	Screw 8-18 B 1hw 1/2 Sn	$10.50 Special Order
718	WD12X10190	Conduit Exhaust Asm	Call for Availability
721	WD26X10056	Blower Dishwasher	$167.20 Special Order
722	WD12X10351	Inlet Transition	$38.20 Special Order
757	WD27X10250	Kit Toekick Asm	$127.10 Special Order
758	WD01X10421	Foam Brace	$56.00 Special Order
759	WD27X10206	Toekick Asm	$106.00 Special Order
795	WD2X444	Screw	$10.50 Special Order
799	WD02X10123	Scr 10-32 Gxtt Flp.595 S	$10.50 Special Order
800	WD14X10047	Arm Hinge Rh Asm (Replaces: WD14X10021)	$136.90 Special Order
	WD14X10046	Arm Hinge Lh Asm (Replaces: WD14X10016)	$136.90 Special Order
803	WD13X10031	Latch	$89.40 Special Order
807	WD31X10131	Door Inner & Gasket	Call for Availability
809	WD02X10150	Screw 10-32gx Flt25 615 (Replaces: WD02X10084)	Call for Availability
811	WD12X10163	Module Rinse And Cap Asm	$67.10 Special Order
812	WD12X10122	Cap Rinse Asm	$12.00 Special Order
813	WD01X10207	Bracket Detergent Displa	$10.50 Special Order
814	WD02X10104	Scr 8-10 Pl Trp 1/2 S	$10.50 Special Order
815	WD12X10127	Cover Vent	$16.90 Special Order
816	WD12X10383	Vent Asm	$493.90 Special Order
818	WD12X10313	Bearing Hinge Arm	$10.10 Special Order
822	WD02X10106	Scr 8-18 Ab Tr 7/8s	$10.50  In-Stock Retail: $10.22
864	WD12X10067	Flapper Vent	$10.50 Special Order
866	WD12X10384	Dispensing Det Asm	$255.20 Special Order
870	WD35X10376	Bottle Detergent Asm	$114.90 Special Order
871	WD12X10282	Cap Asm	$65.90 Special Order
872	WD02X25438	Lock Nut Asm	$97.70 Special Order
873	WD08X10060	Gasket Fill Hole	Call for Availability
905	WD21X10518	Ps Kit Ap3rtp   (Replaces: WD21X10441)	$387.80 Special Order
918	WD21X10172	Vent Driver Asm	$59.40 Special Order
936	WD21X10483	Model Selector Plug Asm	$9.30 Special Order
943	WZ05X0219	Screw	Call for Availability
999	WD01X10557	Harness Hmi Asm	$60.50 Special Order
8888	WD35X10370	Trim Panel Accessary Ki	Call for Availability
9999	WD35X10372	Bag And Bracket Asm	$19.00 Special Order
