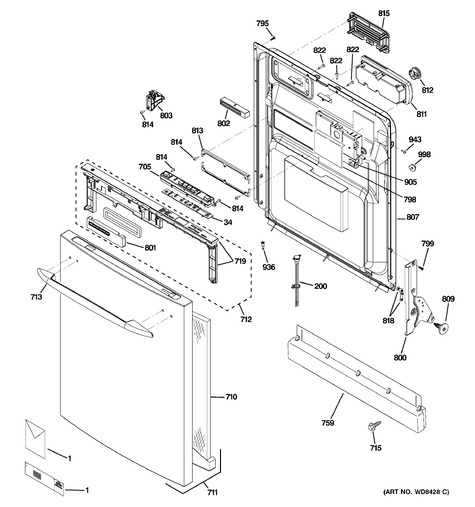

1 - Escutcheon & Door Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-30283	Pm Instruction Install	Call for Availability
	31-30634	Pm Mini Manual	Call for Availability
	49-55077	Pm Manual Use & Care	Call for Availability
34	WD21X10504	Board Tactile Top Hmi (Replaces: WD21X10471)	Call for Availability
200	WD01X10567	Thermostat	$10.90 Special Order
705	WD01X10529	Button Asm Silicon Pro	Call for Availability
	WD01X10532	Button Asm Silicon Pro	Call for Availability
	WD01X10528	Button Asm Silicon Ww	Call for Availability
710	WD01X10287	Insulation Panel	Call for Availability
711	WD27X10287	Panel Front Finished	Call for Availability
	WD27X10294	Panel Front Finished Cc	Call for Availability
	WD27X10296	Panel Front Finished Bb	Call for Availability
712	WD27X10315	Console Asm Kit Bb	Call for Availability
	WD27X10316	Console Asm Kit Ww	Call for Availability
	WD27X10317	Console Asm Kit Cc	Call for Availability
713	WD09X10077	Handle Asm Painted Ww	Call for Availability
	WD09X10080	Handle Asm Painted Bb	Call for Availability
	WD09X10081	Handle Asm Painted Cc	Call for Availability
715	WD02X10085	Scr 8-18 B 1hw 1/2 S N	$10.50 Special Order
	WD02X10147	Scr 8-18 B 1hw 1/2 S N	$10.50 Special Order
719	WD27X10288	Console Asm Lightpipe	$77.40 Special Order
	WD27X10293	Console Asm Lightpipe	Call for Availability
	WD27X10295	Console Asm Lightpipe	$77.40 Special Order
759	WD27X10220	Toekick Asm	Call for Availability
	WD27X10221	Toekick Asm	Call for Availability
	WD27X10219	Toekick Asm	Call for Availability
795	WR01X10652	Scr 8-18 Ab Ihw 5/8 S	$10.50 Special Order
798	WD01X10635	Control Shield	$16.00 Special Order
799	WD02X10162	Scr 8-32 Hxp 1/4 S	$10.50 Special Order
800	NLA ITEM	Hinge Arm Asm Lh	Call for Availability
	WD14X10025	Hinge Arm Asm Rh	Call for Availability
801	WD01X10518	Louver Asm Vent	Call for Availability
	WD01X10526	Louver Asm Vent	Call for Availability
	WD01X10531	Louver Asm Vent	Call for Availability
802	WD01X10545	Foam Vent	Call for Availability
803	WD13X10061	Latch Asm	Call for Availability
807	WD31X10128	Door Inner Punched	Call for Availability
809	WD02X10166	Scr 8-18 Ab Hw 1/2 Ss	$10.50 Special Order
811	WD12X10163	Module Rinse And Cap Asm	$67.10  In-Stock Retail: $73.16
812	WD12X10122	Cap Rinse Asm	$12.00 Special Order
813	WD12X10146	Backup Flange D Cup	Call for Availability
814	WD02X10104	Scr 8-10 Pl Trp 1/2 S	$10.50 Special Order
815	WD12X10368	Vent	Call for Availability
818	WD14X10009	Link Hinge Arm	$10.50  In-Stock Retail: $10.22
822	WD2X444	Screw	$10.50 Special Order
905	WD21X10505	Board Main Dl-2 (Replaces: WD21X10470)	$186.50 Special Order
936	WD21X10464	Model Selector Plug Asm	$10.00 Special Order
943	WZ05X0219	Screw	Call for Availability
998	WD01X10562	Lens Asm Kit Cc	Call for Availability
	WD01X10561	Lens Asm Kit Bb	Call for Availability
	WD01X10560	Lens Asm Kit Ww	Call for Availability
