GE GTDP250EM2WW Parts List

Popular Searches: (Click to search)    and  asm  bearing  bearingá"  clip  door  drum  idler  knob  pulley  reg  rotary  shaft  sleeve  slide  start  switch  timer  top  white


Select a Diagram

1 - Backsplash, Blower & Motor Assembly

2 - Front Panel & Door

3 - Cabinet

4 - Drum

Select Diagram ... 1 - Backsplash, Blower & Motor Assembly 2 - Front Panel & Door 3 - Cabinet 4 - Drum

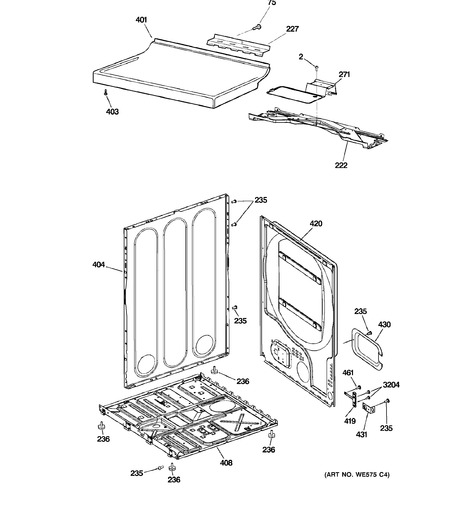

3 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
2	WE2M215	Screw Switch Plate, 8-18	$9.30 Special Order
75	WE2M173	Screw	$10.50 Special Order
	WE2M308	Scr 8-15 X 7/16 Ab	$10.50 Special Order
222	WE20X20412	Bottom Cover	$99.50 Special Order
227	WE1M723	Rear Heat Sheild	$20.20 Special Order
235	WE2M307	Scr 10-16 X 1/2 Ab	$10.50 Special Order
236	WE01X29357	Leveling Foot   (Replaces: WE1M771)	$17.10  In-Stock Retail: $16.59
271	WE1M1030	Bottom Cover Heat Shield	$17.60 Special Order
401	WE20X20417	Top Cover Wh (Replaces: WE20M286)	$83.70  In-Stock Retail: $81.63
403	WE2M160	Screw #8	$10.50  In-Stock Retail: $10.22
404	WE20X20406	Side Panel Ww	$47.00 Special Order
408	WE20X20391	Chassis Base	$88.40 Special Order
419	WE4M325	Term Blk & Grnd Strap	$21.70 Special Order
420	WE20X20559	Rear Panel 7 C.f.	$89.80 Special Order
430	WE1M1102	Term. Block Cover	$15.40  In-Stock Retail: $15.02
431	WE01X20423	Strain Relief Bracket	$10.50 Special Order
461	WZ05X0158	Screw 8-32x3/8 Grd Scr	Call for Availability
3204	WZ4X241D	Screw (Replaces: WH2M270)	$21.80  In-Stock Retail: $21.25
