Maytag JJW2827WW02 Parts List

Popular Searches: (Click to search)    2oz  appliance  black  blower  bulb  door  harness  high  light  limit  lower  meat  paint  probe  relay  spray  switch  touch  upper  white


Select a Diagram

01 - Control Panel Parts

02 - Upper Oven Parts

03 - Lower Oven Parts

04 - Upper Oven Door

05 - Lower Oven Door

06 - Internal Oven Parts

07 - Optional Parts

Select Diagram ... 01 - Control Panel Parts 02 - Upper Oven Parts 03 - Lower Oven Parts 04 - Upper Oven Door 05 - Lower Oven Door 06 - Internal Oven Parts 07 - Optional Parts

03 - Lower Oven Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10277424	Bracket, Reinforcement Right Hand	$51.10 Special Order
	WPW10277423	Bracket, Reinforcement Left Hand	$48.20 Special Order
2	2624F043-51	Back, Main	$158.50 Special Order
3	W10254041	Baffle, Rear Lower	$51.20 Special Order
4	W10280326	Panel, Bottom	$89.10 Special Order
5	8038P035-60	Foot, Plastic	$16.30 Special Order
6	W10213759	Support, Air Channel	$45.00 Special Order
7	3401F079-45	Pan, Hidden Bake	$67.90 Special Order
8	4006F236-45	Box, Lower Vent	$28.30 Special Order
9	W10213819	Gasket	$83.70 Special Order
10	W10176218	Retainer, Gasket	$5.40 Special Order
11	W10186984	Cover, Rear	$47.50 Special Order
12	WPW10213755	Latch, Door Lock	$215.10 Special Order
13	W10286173	Switch, Micro	$55.20 Special Order

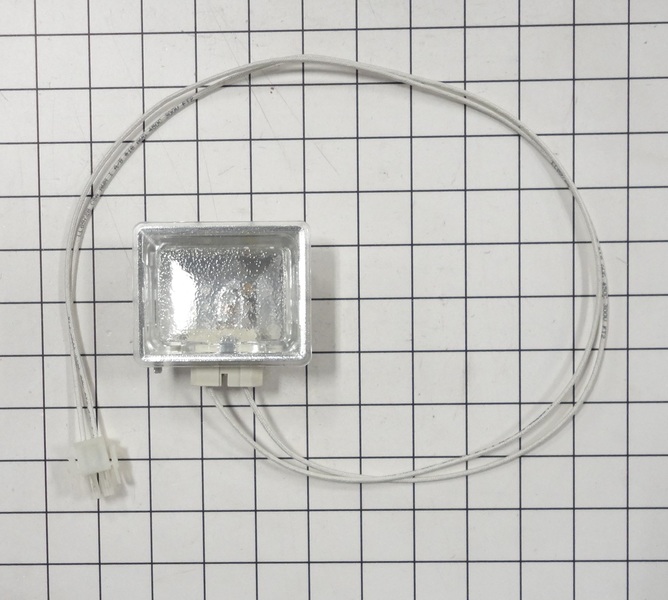

14	W10175989	Assembly, Light	$69.10 Special Order
15	8026P064-60	Tube, Vent	$38.00 Special Order
16	W10253684	Bracket, Oven Back	$54.50 Special Order
17	W10175995	Panel, Side	$68.80 Special Order
18	W10255437	Retainer, Rear Insulation	$49.50 Special Order
19	W10175999	Panel, Top Retainer	$41.20 Special Order
20	4005F721-45	Cover, Vent	$27.20 Special Order
21	WPW10169757	Bulb, Light (Replaces: W10169757)	$24.00  In-Stock Retail: $23.37
22	W10280323	Channel, Bottom Air	$109.40 Special Order
23	WP74004607	Lens	$12.40 Special Order
24	W10213745	Frame, Micro Switch	$6.40 Special Order
25	W10238701	Trim, Bottom Vent (black)	$101.30 Special Order
	W10176037	Trim, Bottom Vent (stainless)	$102.90 Special Order
26	WP90767	Screw	$4.80  In-Stock Retail: $4.59
27	WP489464	Screw	$4.80 Special Order
28	W10175993	Hinge, Receiver	$28.50 Special Order
29	WPW10254050	Screw	$4.60 Special Order
30	74007899	Insulation, Door Lock Lower	$4.40 Special Order
	W10254027	Cover, Air Channel	$10.00 Special Order
	W10186990	Insulation, Wrap	$64.90 Special Order
	W10213747	Insulation, Back	$66.20 Special Order
