04 - Chassis Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10319038	Shield, Gemini	$91.60 Special Order
2	WPW10237689	Spacer, Side Panel	$51.60 Special Order
3	WPW10267456	Screw, Shoulder	$4.80 Special Order
4	WPW10330376	Panel, Side (white)	$127.30 Special Order
	W10330375	Panel, Side (black)	$118.70 Special Order
5	WP3801F656-51	Bracket, Anti-tip (Replaces: 3801F656-51)	$4.40  In-Stock Retail: $4.20
6	W10319000	Gasket, Gemini Oven Shield	$108.50 Special Order
7	W10357697	Bracket, Side Panel	$15.20 Special Order
8	W11665456	Foot, Leveler	$17.00 Special Order
9	W10105790	Bumper & Screw	$4.60 Special Order
10	WP7430P044-60	Sensor, Oven (Replaces: 7430P044-60)	$164.40  In-Stock Retail: $160.34
11	W10268558	Cover, Lower Wire	$60.80 Special Order
12	W10828565	Screw	$4.80 Special Order
13	WPW10261387	Cover, Main Wire	$124.40 Special Order
14	W11243157	Assembly, Flue (upper)	$215.20 Special Order
	W10272519	Assembly, Flue (lower)	$90.20 Special Order
15	WPW10260580	Back, Main	$92.80 Special Order
16	W10321445	Assembly, Outlet Flue (lower)	$106.00 Special Order
	W10321446	Assembly, Outlet Flue (upper)	$98.20 Special Order
17	WPW10261387	Cover, Main Wire	$124.40 Special Order
18	W10319087	Bracket, U Channel	$52.50 Special Order
19	WP7101P485-60	Screw	$19.90 Special Order
20	W10260703	Support, Lower Oven	$48.70 Special Order
21	W11594027	Assembly, Light	$47.50  In-Stock Retail: $46.31
22	WPW10471348	Lock, Integrated Light (Replaces: W10471348)	$211.30  In-Stock Retail: $206.12
23	WPW10253471	Shield, Side Insulation	$97.60 Special Order
24	W10324643	Support, Insulation	$52.10 Special Order
25	WPW10269069	Gasket, Oven Door (lower)	$115.70 Special Order
	W10318928	Gasket, Oven Door (upper)	$107.70 Special Order
26	74003975	Screw	$8.70 Special Order
27	WPW10308654	Front, Main (lower)	$185.40 Special Order

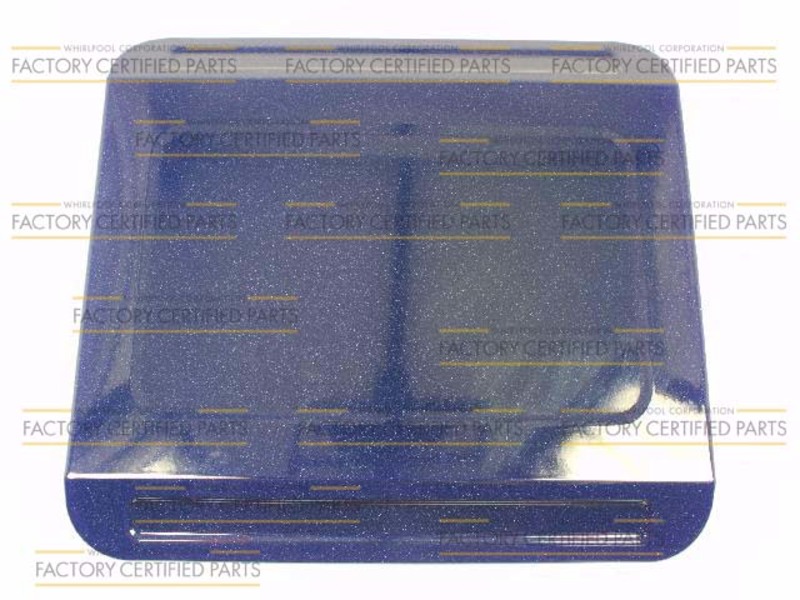

28	WPW10292551	Pan, Oven Bottom	$115.60  In-Stock Retail: $112.75
29	W10308655	Front, Main (upper)	$87.60 Special Order
30	W10410461	Cover, Hinge (right)	$60.40 Special Order
	W10410463	Cover, Hinge (left)	$60.80 Special Order
31	WP4449040	Screw	$4.80 Special Order
NI	N/P	Following Parts Not Illustrated (upper)	Call for Availability
	W11684919	Insulation, Floor	$74.60 Special Order
	W11684769	Wrapper	$74.60 Special Order
	W11688777	Insulation, Back (lower)	$46.00 Special Order
	W11688385	Wrapper	$74.60 Special Order
	W11685611	Insulation, Back	$74.60 Special Order
