01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10065852	Tips, Safer Cooking (french)	Call for Availability
	W10430932	Owners Manual	Call for Availability
	W10526071	Instructions, Installation	Call for Availability
	W10311752	Tech Sheet	Call for Availability
	9762761	Tips, Safer Cooking (english)	Call for Availability

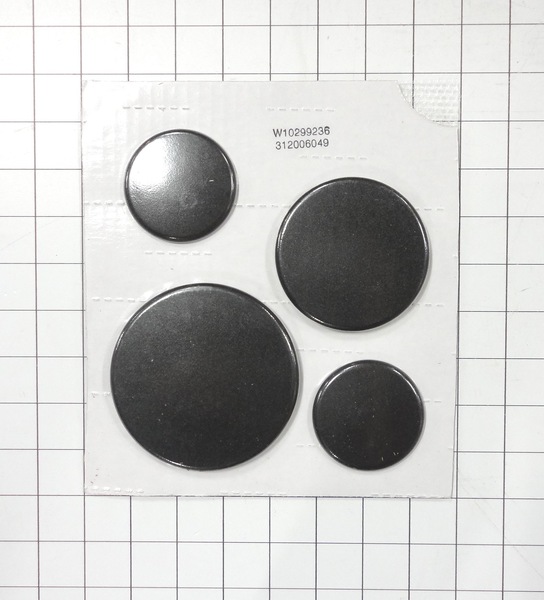

2	WPW10299236	Kit, Burner Cap (Replaces: W10299236)	$135.30  In-Stock Retail: $131.91

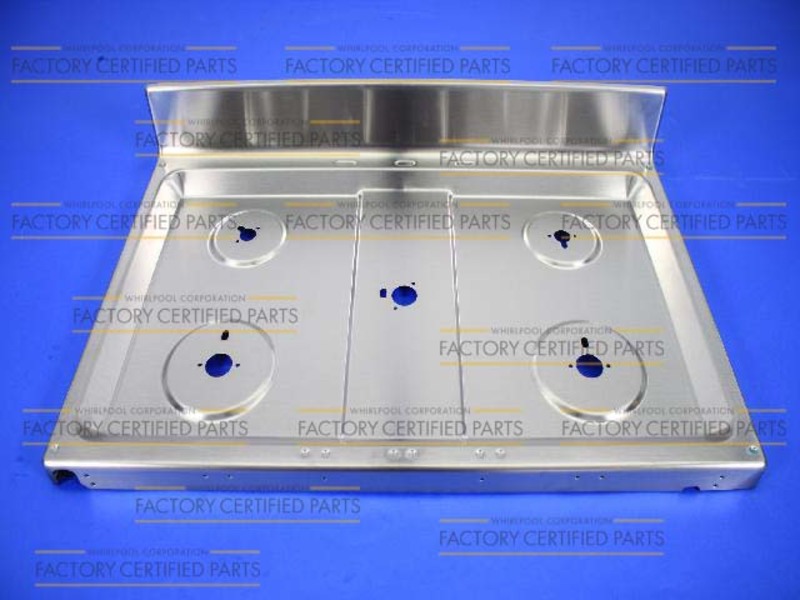

3	W10401393	Cooktop (stainless)	$227.40  In-Stock Retail: $221.76
	W10336331	Cooktop (white)	$227.30 Special Order
	W10336330	Cooktop (black)	$227.20 Special Order
4	WPW10336094	Burner Head (center) (Replaces: W10336094)	$124.00 Special Order
	WPW10406243	Burner Head, Auxiliary (6k) (left Rear & Right Rear) (Replaces: 8286181)	$24.40  In-Stock Retail: $23.75
	WPW10406878	Burner Head, Ultra Rapid (17k) (left Front) (Replaces: W10406878 8286183)	$67.00  In-Stock Retail: $65.32
	WPW10406797	Burner Head, Rapid (12k) (right Front) (Replaces: 8286182)	$55.80  In-Stock Retail: $54.36

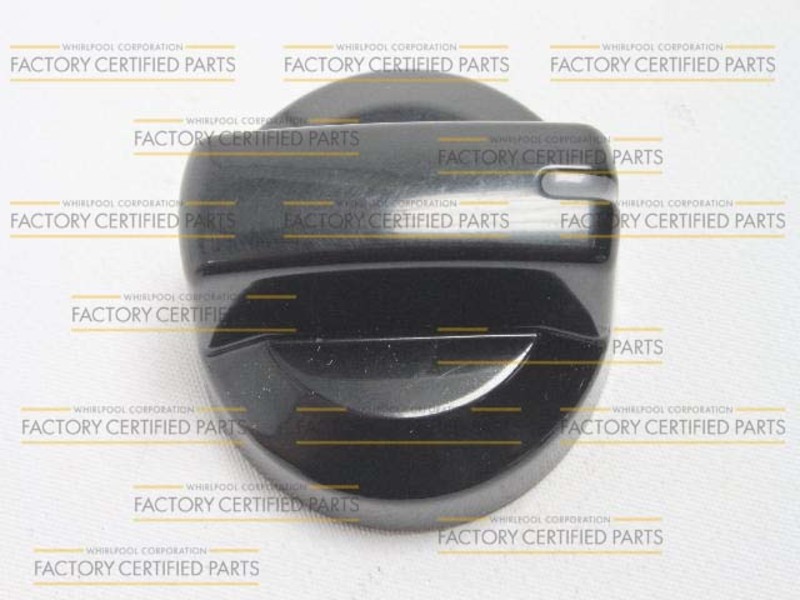

5	W10295130	Knob, Control (black)	$27.90 Special Order

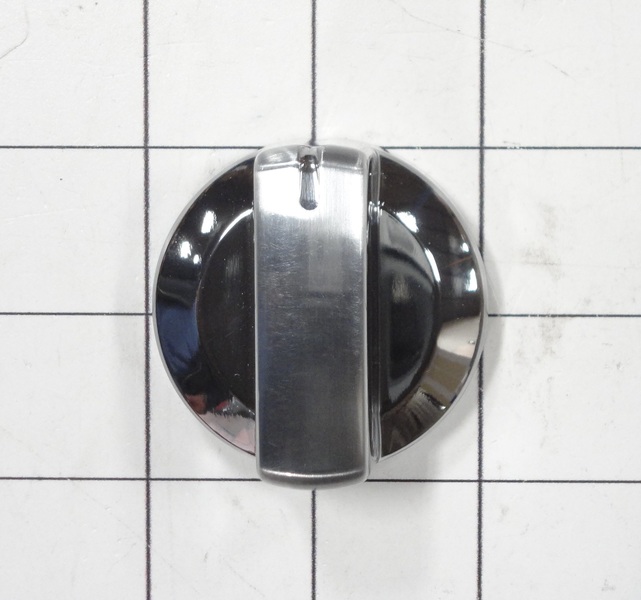

	WPW10295131	Knob, Control (stainless) (Replaces: W10295131)	$14.50  In-Stock Retail: $14.08
	WPW10290522	Knob, Control (white)	$27.80 Special Order
6	W10518258	Bracket, Cooktop Support	$16.70 Special Order
7	W10311218	Griddle	Call for Availability

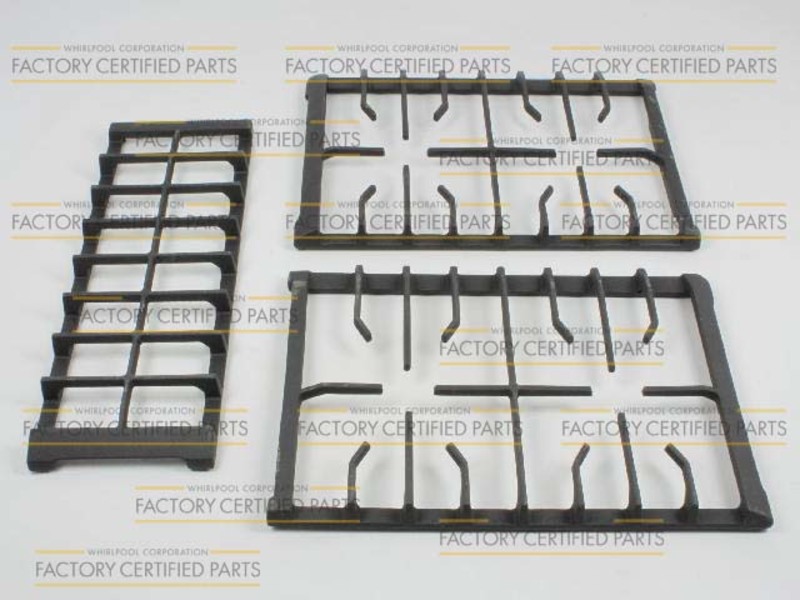

8	WPW10260069	Kit, Grate	$219.20 Special Order
9	WPW10488872	Panel, Manifold (white)   (Replaces: W10284715)	$206.50 Special Order
	WPW10284717	Panel, Manifold (stainless)	$199.10 Special Order
	W10284716	Panel, Manifold (black)	$107.30 Special Order
10	WPW10333445	Base, Burner Cap (fish Burner Only)	$66.00 Special Order
11	W10171137	Kit, Burner Cap (fish Burner Only) (wetstone)	$67.70 Special Order
	WPW10171140	Kit, Burner Cap (fish Burner Only) (black)	$101.10 Special Order
12	W11189172	Glide, Main Top	$11.00 Special Order
