Whirlpool KGCK366VSS02 Parts List

Popular Searches: (Click to search)    accessories  assy  auxiliary  burner  center  cleaner  cooktop  electrode  front  harness  head  holder  left  orifice  polish  rapid  rear  right  screw  switch


Select a Diagram

01 - Cooktop, Burner And Grate Parts

02 - Burner Box, Gas Valves And Switches

03 - Parts Not Illustrated

Select Diagram ... 01 - Cooktop, Burner And Grate Parts 02 - Burner Box, Gas Valves And Switches 03 - Parts Not Illustrated

01 - Cooktop, Burner And Grate Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8304571	Instructions, Undercounter	Call for Availability
	W10169072	Use & Care Guide	Call for Availability
	W10169218	Instructions, Lp Conversion	Call for Availability
	W10526074	Installation Instructions	Call for Availability
2	W10140186	Cooktop	Call for Availability

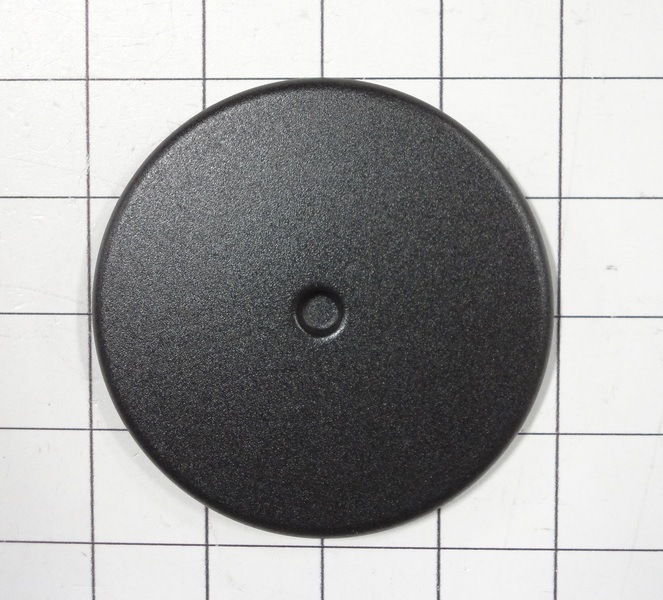

3	WP8286156CB	Cap, Burner (coal Black (left Front)) (Replaces: 8286156CB)	$82.90 Special Order
	WP8286154CB	Cap, Burner (coal Black (center))	$60.40 Special Order
	WP8286155CB	Cap, Burner (coal Black (right Rear)) (Replaces: 8286155CB)	$81.20 Special Order
	WP8286153CB	Cap, Burner (coal Black (left Rear))   (Replaces: 8286153CB)	$48.10 Special Order
4	8285876CB	Grate, Burner	Call for Availability
5	8285878CB	Grate, Center	Call for Availability
6	WPW10484149	Knob, Control   (Replaces: W10484149)	$32.00 Special Order
7	WPW10128450	Assy, Orifice Holder (center) (Replaces: W10128450)	$79.80  In-Stock Retail: $77.84
	WPW10128451	Assy, Orifice Holder (right Rear) (Replaces: W10128451)	$77.40  In-Stock Retail: $75.44
	WPW10128445	Assy, Orifice Holder (left Front)   (Replaces: W10128445)	$76.50 Special Order
	WPW10128448	Assy, Orifice Holder (left Rear)   (Replaces: W10128448)	$75.30  In-Stock Retail: $73.42
8	WPW10406243	Burner Head, Auxiliary (6k) (left Rear) (Replaces: 8286181)	$24.40  In-Stock Retail: $23.75
	WPW10406878	Burner Head, Ultra Rapid (17k) (left Front) (Replaces: W10406878 8286183)	$67.00  In-Stock Retail: $65.32
	WPW10406797	Burner Head, Rapid (12k) (right Rear) (Replaces: 8286182)	$59.70  In-Stock Retail: $58.17
	WPW10406283	Burner Head, Semi (center) (Replaces: W10194076 8286184)	$50.10  In-Stock Retail: $48.83
9	WP8273062	Screw (Replaces: 8273062)	$4.80  In-Stock Retail: $4.59
10	WP3368921	Screw (Replaces: 3368921)	$1.30  In-Stock Retail: $1.24
11	WP3192523	Orifice (center)	$62.20 Special Order
	8286474	Orifice (left Front)	$56.50 Special Order
	8286551	Orifice (right Rear)	$66.70 Special Order
	WP3192529	Orifice (left Rear)	$66.90 Special Order
12	WP9782116	Electrode (Replaces: 9782116)	$33.70  In-Stock Retail: $32.83

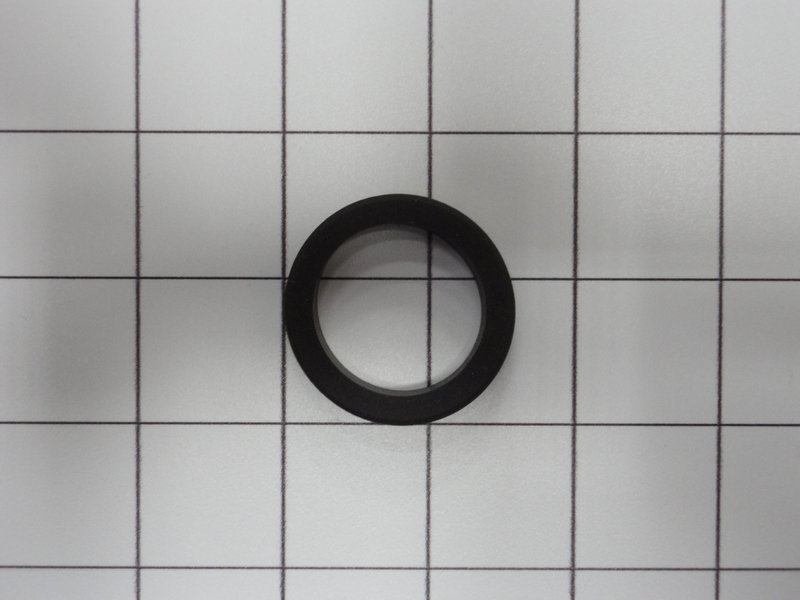

13	WP8286452	Grommet, Grate	$5.50 Special Order
14	9760279	Seal, Foam (stainless Models Only)	$46.60 Special Order
