Whirlpool AS20CKXAN01 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    16``  access  almond  black  cam  closer  door  drier  fan  grease  motor  paint  pressurized  screw  silicone  spray  stud  touch  valve  white


Select a Diagram

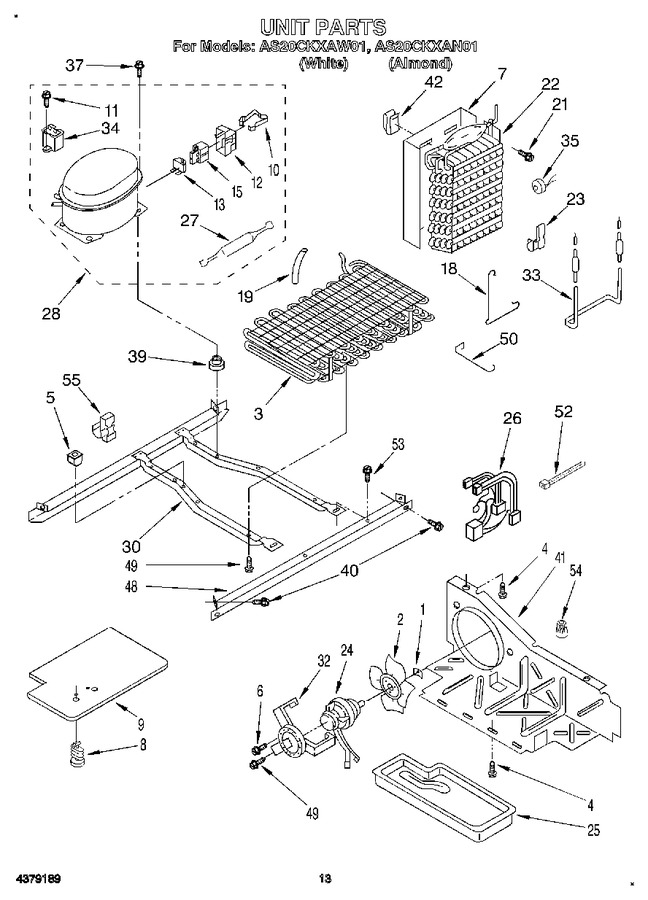

08 - Unit, Lit/optional   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 WP486692 Speed Nut   (Replaces: 486692) $4.80
Special Order
2 WP1108179 WP1108179 Fan, Blade
(Replaces: 1108179) 		Call for Availability
3 2198175 Condenser Assembly $182.60
Special Order
4 WP489464 Screw $4.80
Special Order
5 937252 Grommet $4.40
Special Order
6 681390 Screw $8.20
Special Order
7 2256149 Heat Shield And Drain Pan $52.90
Special Order
8 489396 Clip $7.00
Special Order
9 2160505 Cover, Unit Compartment $32.10
Special Order
10 938384 Strap, (service Compressor Only) $4.40
Special Order
11 W11693756 Screw $8.70
Special Order
12 1108115 Cover (service) $25.90
Special Order
WP2162358 WP2162358 Cover (production) $63.30
Special Order
13 4387535 4387535 Overload (includes Relay) $126.90
 In-Stock
Retail: $123.78
15 N/A Relay (see Overload) Call for Availability
18 WP2161324 Clip, Defrost Heater $6.40
Special Order
19 W11751592 Sleeve $13.00
Special Order
21 WP965173 Screw $6.40
Special Order
22 WP2188822 Evaporator $211.30
 In-Stock
Retail: $206.12
23 2161330 Clip, Heater (2) $4.40
Special Order
24 833697 833697 Motor, Fan
(Replaces: 2162431) 		$54.40
 In-Stock
Retail: $54.35
25 WPW10614158 Tray, Evaporator   (Replaces: 1105523) $98.60
 In-Stock
Retail: $96.12
26 2176859 Harness, Intermediate $115.40
Special Order
27 W10843121 W10843121 Drier
(Replaces: 4387019 2164409) 		$31.80
 In-Stock
Retail: $30.99
28 W10309990 W10309990 Compressor (includes Items 10, 11, 12, 13, 15, 27 & 34) $365.60
Special Order
30 1127943 Unit Mounting Frame $95.20
Special Order
32 548695 Fan, Motor Bracket $51.30
Special Order
33 WP2161322 WP2161322 Heater, Defrost $31.00
Special Order
34 999509 999509 Capacitor $45.00
Special Order
35 WPW10225581 WPW10225581 Defrost, Bi-metal $34.40
 In-Stock
Retail: $33.50
37 876811 Screw $4.80
Special Order
39 876811 Grommet (4) $4.80
Special Order
40 489340 Screw $6.70
Special Order
41 2169417 Air Baffle $69.80
Special Order
42 2155547 Clip, Heat Shield $4.40
Special Order
48 2149718 Unit Mounting Rail $32.60
Special Order
49 4159456 Screw $4.40
Special Order
50 1105612 Guard, Fan $27.20
Special Order
52 WPW10339879 WPW10339879 Strap $4.80
Special Order
53 WP489427 WP489427 Screw $4.80
 In-Stock
Retail: $4.59
54 227991 Wire Connector Call for Availability
55 799833 Kit, Evaporator Repair (aluminum Epoxy) Call for Availability
WP4317852 WP4317852 Cement, Alumilastic 1-1/4 Oz.) $42.50
Special Order
WP542638 WP542638 Grease, Silicone (1/2 Oz.)
(Replaces: 542638) 		$43.00
 In-Stock
Retail: $41.95
WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) $73.30
Special Order
WP505587 Sealer, Mastic (1 Qt.). $109.20
Special Order
876370 876370 Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) $138.60
Special Order
876370 876370 Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) $138.60
Special Order
72032 72032 Paint, Touch-up 1/2 Oz. (black) $12.90
 In-Stock
Retail: $12.49
WP72107 WP72107 Paint, Touch-up (1/2oz.) (almond)
(Replaces: 72107) 		$9.80
 In-Stock
Retail: $9.49
72017 72017 Paint, Touch-up 1/2 Oz. (white) $8.60
 In-Stock
Retail: $8.19
350956 350956 Xenamel, Almond (13 Oz. Spray Can) $16.80
 In-Stock
Retail: $16.34
WP978025 WP978025 Valve, Access (1/4``)
(Replaces: 978025) 		$65.70
 In-Stock
Retail: $64.01
786032 Enamel, Black (1 Qt. Uncut) $72.30
Special Order
799344 Paint, Bulk (1 Qt.) (white) (uncut) $128.20
Special Order
978883 Enamel, Almond (1 Qt. Uncut) $106.60
Special Order
261891 Enamel, Golden Wheat (1 Qt. Uncut) $36.80
Special Order
2208280 Clip, Wire And Water Tube $6.40
Special Order
978026 978026 Valve, Access (5/16``) $78.60
 In-Stock
Retail: $76.67
978027 978027 Valve, Access (3/8``) $80.20
 In-Stock
Retail: $78.20
978028 978028 Valve, Access (1/2) Call for Availability
978029 Valve Access (5/8``) $65.50
Special Order
978030 Valve, Access (3/4``) $84.20
Special Order
876764 876764 Valve, Access(3/16``) $56.70
 In-Stock
Retail: $55.29
350942 Primer White (13 Oz. Spray Can) $26.90
Special Order
350941 Leveler, Enamel (13 Oz. Spray Can) $6.90
Special Order
285006 285006 Enamel, Black (13 Oz. Spray Can) $22.40
 In-Stock
Retail: $21.79
350930 350930 Paint, Pressurized Spray (12 Oz.) White $12.60
 In-Stock
Retail: $11.98
285365 Paint, Spray (13 Oz.) (toast) $24.10
Special Order
285366 Paint, Spray (13 Oz.) (platinum) $25.70
 In-Stock
Retail: $24.99
261890 Xenamel, Golden Wheat (13 Oz. Spray Can) $23.60
Special Order
72110 Paint, Touch-up 1/2 Oz. (harvest Gold) $15.40
Special Order
72112 Paint, (touch-up 1/2 Oz.) (toast) $10.30
Special Order
72113 Paint, Touch-up 1/2 Oz. (platinum) $15.40
Special Order
212643 212643 Sealer, Gum (4 Feet) $58.50
Special Order
479502 Tape, Vinyl 3/4 X 108``) Call for Availability
876370 876370 Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) $138.60
Special Order
876029 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) $226.70
Special Order
511873 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) $26.70
Special Order
606755 Bag, Insulation (36-5/8`` X 46``) $51.80
Special Order
1117510 Torx Key $4.40
Special Order
833938 Kit, Terminal Connector $4.80
Special Order
515393 Transformer (115-230 Volt) Call for Availability
285367 Enamal, Toast (1 Qt. Uncut) $82.00
Special Order
285368 Enamel, Platinum (1 Qt. Uncut) Call for Availability
LIT2167144 Energy Label Call for Availability
LIT2169111 Service And Wiring Sheet Call for Availability
LIT2167143 Use And Care Guide Call for Availability
