Whirlpool WMH1163XVQ5 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    bottom  cam  cavity  cc200  complete  cp200  door  filter  grease  handle  interlock  lamp  microswitch  plate  stainless  support  top  v15t16  watt  white


Select a Diagram

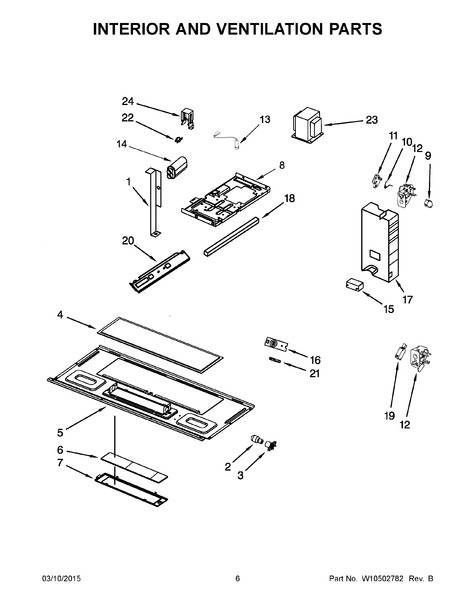

04 - Interior And Ventilation Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 W10313275 Bracket, Top Cavity $23.00
Special Order
2 8206232A 8206232A Lamp 40 Watt
(Replaces: 8206232) 		$5.20
 In-Stock
Retail: $4.99
3 W10210871 Holder, Lamp $4.90
 In-Stock
Retail: $4.59
4 W10208631A W10208631A Filter, Grease
(Replaces: W10208631) 		$23.00
 In-Stock
Retail: $21.89
5 W10245196 W10245196 Plate, Bottom $159.60
Special Order
6 WPW10210875 WPW10210875 Glass, Lamp $226.30
Special Order
7 W10210873 Holder, Glass $4.50
Special Order
8 W10269456 Chassis $51.00
Special Order
9 W10269458 W10269458 Microswitch V15t16-cc200/nc $28.30
 In-Stock
Retail: $27.57
10 W10156812 W10156812 Spring, Interlock $7.20
 In-Stock
Retail: $6.97
11 W10562613 W10562613 Plate, Cam
(Replaces: W10156811) 		$11.30
 In-Stock
Retail: $10.95
12 WP8206419 WP8206419 Support, Interlock (top)
(Replaces: 8206419) 		$15.50
 In-Stock
Retail: $15.08
12A WPW10156813 WPW10156813 Support, Interlock (bottom)
(Replaces: W10156813) 		$5.00
 In-Stock
Retail: $4.85
13 W11256462 W11256462 Diode, High Voltage
(Replaces: WPW10492276 W10163432) 		$20.20
 In-Stock
Retail: $19.63
14 W10850446 W10850446 Capacitor, High Voltage
(Replaces: W10138798) 		$115.10
 In-Stock
Retail: $109.59
15 W11405832 W11405832 Capacitor, Hood Motor $16.60
 In-Stock
Retail: $16.11
16 W10163422 W10163422 Thermistor $107.80
 In-Stock
Retail: $105.13
17 W10313268 Seperator, Side Wall $34.90
Special Order
18 W11523261 Cushion, Ntc $13.00
Special Order
19 W10269460 W10269460 Microswitch V15t16-cp200/no $28.30
 In-Stock
Retail: $27.57
20 W10315759 Support, Ntc $65.30
Special Order
21 W11707984 Fuse   (Replaces: W10138793) $29.30
 In-Stock
Retail: $28.54
22 W10269232 W10269232 Thermostat, Cavity $44.60
 In-Stock
Retail: $43.45
23 W10349882 Transformer, H.v. $189.80
Special Order
24 W10532063 Bracket, Capacitor $17.50
Special Order
