Whirlpool YWED9550WW2 Parts List

Popular Searches: (Click to search)    2oz  assembly  block  brass  element  for  harness  heater  includes  kit  paint  pressurized  repair  spray  terminal  tinned  touch  white  wire  wiring


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - Door Parts

05 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - Door Parts 05 - Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10298850	Tech Sheet	Call for Availability
	W10471645	Installation, Instruction	Call for Availability
	W10477028	Use & Care Guide	Call for Availability
2	W10249739	Top (mercury)	$104.50 Special Order
	3980634	Top (white)	$27.80 Special Order
3	W10251445	Harness, Main	Call for Availability

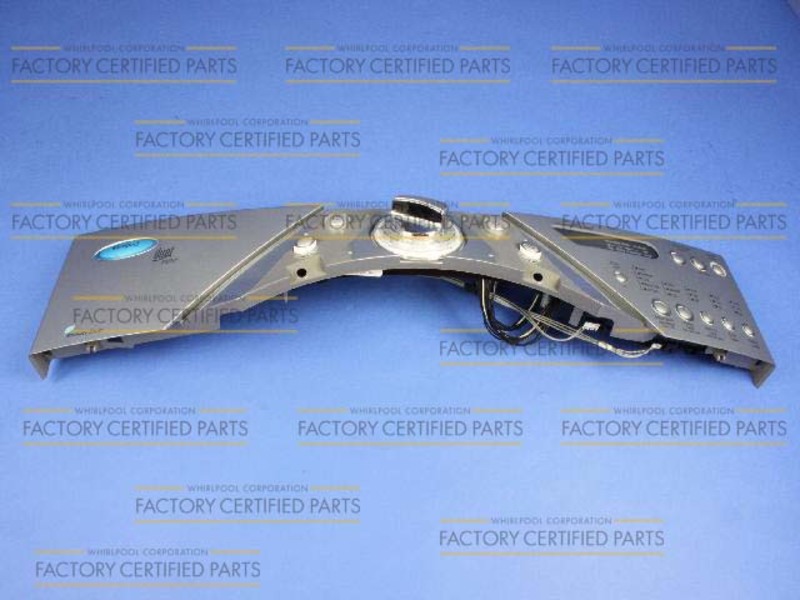

4	W10255230	Panel, Console (mercury)	$405.30 Special Order
	W10255229	Panel, Console (white)	$307.50 Special Order
5	WP3391018	Tie, Cable	$20.50 Special Order
6	W10215656	Bracket, Console (includes No.12)	$62.10 Special Order
7	W10112268	Clip, Harness	$8.40 Special Order
8	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
9	W10112267	Foam-seal	$58.10 Special Order
10	W10012480	Array-power	$10.50 Special Order
11	WP488729	Screw, 8-32 X 1/32	$4.80  In-Stock Retail: $4.59
12	W10279773	User Interface (right)	Call for Availability
13	WPW10279709	User Interface (center) (includes: Illus. 10 )	$189.70 Special Order
14	W10012430	Encoder-wheel	$12.40 Special Order
15	WPW10012440	Retainer-snap	$9.90 Special Order
16	W10250089	Knob, Light Ring (includes:illus. 15 )	$8.20 Special Order
17	280230	Rast, Wheel Holder (service Only With Illus. 22 )	$98.80 Special Order
18	W10133763	Detent Wheel (service Only With Illus. 22 )	Call for Availability
19	W10242906	Harness, Communication	$105.70 Special Order
20	280230	Knob, Spring (service Only With Illus. 22 )	$98.80 Special Order
21	W10190685	Knob, Control (includes: Illus. 15 )	$38.60 Special Order
22	W10012480	Encoder, Wheel Kit. (includes Item: 17, 18, & 20 )	$10.50 Special Order
23	W10117943	Badge	$11.80 Special Order
24	WP693995	Screw, Ground	$4.80  In-Stock Retail: $4.59
