Whirlpool WED9610XW1 Parts List

Popular Searches: (Click to search)    91c  assembly  belt  bracket  catch  door  drive  fuse  idler  paint  pressurized  pulley  roller  seal  spray  strike  support  thermal  thermistor  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - Door Parts

05 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - Door Parts 05 - Optional Parts (not Included)

05 - Optional Parts (not Included)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
NI	72017	Paint, Touch-up (1/2oz.) (white)	$8.60  In-Stock Retail: $8.19
	60FFUSA	Hose Inlet (5` Hose)   (Replaces: WP89503 3805FF 89503)	Call for Availability
	4392067	Kit, Dryer Repair	$46.50  In-Stock Retail: $46.44

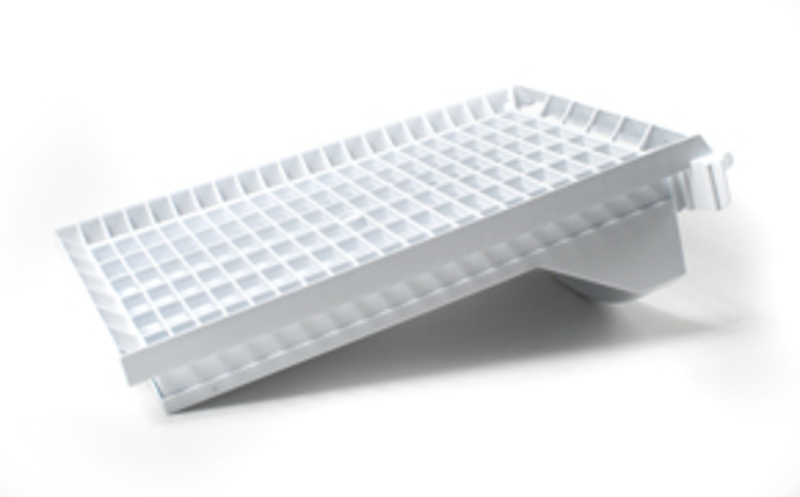

	8212450A	Dry Rack (Replaces: 8521957)	$46.70 Special Order
	W10044609A	Bag Assembly (contains The Following)	$28.00 Special Order
	49583	Hose Inlet (2` Hose)	$5.70 Special Order
	WP16123	Washer	$4.80 Special Order
	49586	Connector Hose Y (Replaces: W10044604)	$8.20 Special Order
	PT400L	4? 30 Amp 4 Wire Dryer Cord	$19.00 Special Order
	61249	4? 30 Amp 3 Wire Dryer Cord   (Replaces: PT220L)	Call for Availability
	PT600L	6? 30 Amp 4 Wire Dryer Cord	$34.70 Special Order

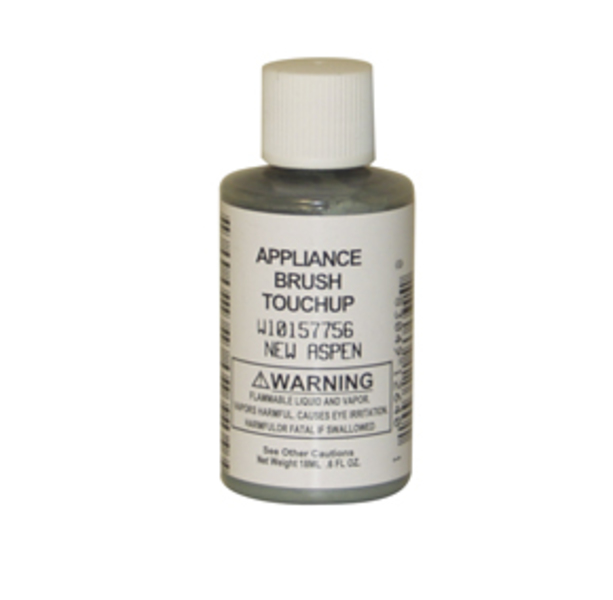

	W10157756	Paint, Touch-up (1/2oz.) (new Aspen)	$10.30 Special Order
	350930	Paint, Pressurized Spray (12 Oz.) (white)	$12.60  In-Stock Retail: $11.98
	350938	Paint, Pressurized Spray (12 Oz.) (primer, Gray)	$27.40  In-Stock Retail: $26.69
	799344	Paint, Bulk (1 Qt.) (white (uncut))	$128.20 Special Order
	8529894	Kit, Hold Down	$89.70 Special Order

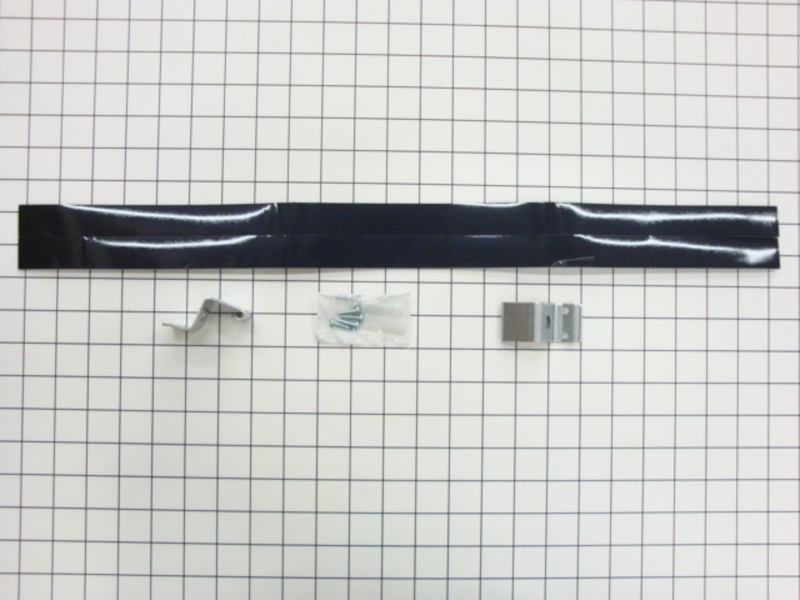

	8541503	Kit, Stack Assembly	$40.90 Special Order
	8579666ARP	Kit, Door Reversing (Replaces: 8579666A)	$33.70 Special Order
