Maytag MHN30PDBWW0 Parts List

Popular Searches: (Click to search)    2oz  absorber  button  clamp  control  door  double  hook  inlet  paint  pressurized  push  shock  single  spray  thermistor  touch  valve  water  white


Select a Diagram

02 - Top And Cabinet Parts

03 - Door Parts

04 - Control Panel Parts

05 - Meter Case Parts

06 - Dispenser Parts

07 - Tub And Basket Parts

08 - Pump And Motor Parts

09 - Optional Parts (not Included)

01 - Cover Sheet

Select Diagram ... 02 - Top And Cabinet Parts 03 - Door Parts 04 - Control Panel Parts 05 - Meter Case Parts 06 - Dispenser Parts 07 - Tub And Basket Parts 08 - Pump And Motor Parts 09 - Optional Parts (not Included) 01 - Cover Sheet

05 - Meter Case Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10171128	Meter Case   (Replaces: W10171128)	$209.30  In-Stock Retail: $204.11
2	WPW10133242	Assembly, Single Coin Drop (Replaces: W10133242)	$171.60  In-Stock Retail: $167.34
3	WPW10247389	Sensor Assembly, Coin Optic   (Replaces: W10130178)	$72.30  In-Stock Retail: $70.48
4	WP3395530	Screw	$4.80 Special Order
5	WPW10137319	Bolt, Hex Bar	$52.20 Special Order
6	W11170663	Washer, Lock	$2.50 Special Order
7	WPW10131838	Switch, Vault Service Door	$17.20 Special Order
8	W11204533	Bracket, Service Switch	$8.70 Special Order
9	WPW10139210	Screw	$4.80  In-Stock Retail: $4.59

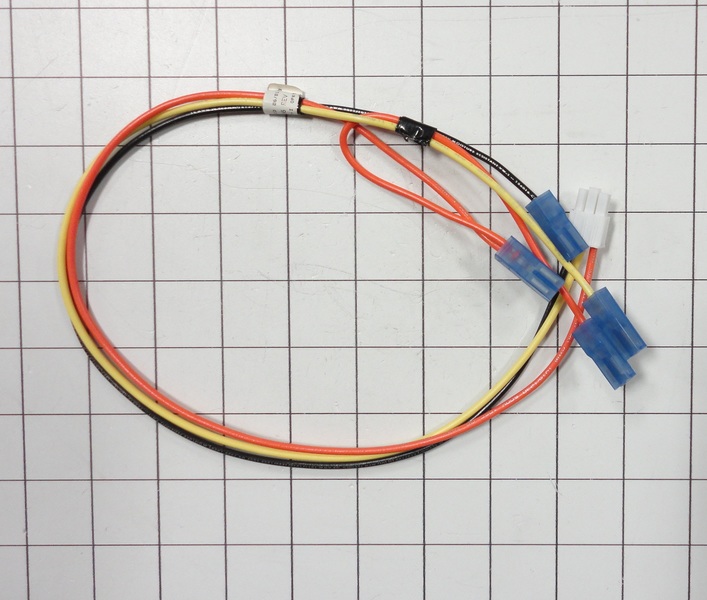

10	W10847806	Wire Harness, Sensor Switch	$81.70 Special Order
11	W11283272	Assembly, Service Door   (Replaces: 3351136)	$67.40  In-Stock Retail: $65.68
12	W11401086	Cam, Commercial Lock	$6.50 Special Order
13	W10137448	Cushion, Meter Case	$21.50 Special Order
14	W11715721	Bolt	$4.60 Special Order
15	3347825	Plate, Mounting	$4.60 Special Order
16	W10841059	Screw	$1.80  In-Stock Retail: $1.74
