Whirlpool YKESS907SS05 Parts List

Popular Searches: (Click to search)    2oz  adhesive  black  blower  broil  element  hinge  jack  meat  oven  paint  probe  screw  sealer  sensor  silastic  spray  thermostat  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Oven Parts

03 - Door Parts

04 - Drawer Parts

05 - Control Panel Parts

06 - Internal Oven Parts

07 - Top Venting Parts

08 - Optional Parts

Select Diagram ... 01 - Cooktop Parts 02 - Oven Parts 03 - Door Parts 04 - Drawer Parts 05 - Control Panel Parts 06 - Internal Oven Parts 07 - Top Venting Parts 08 - Optional Parts

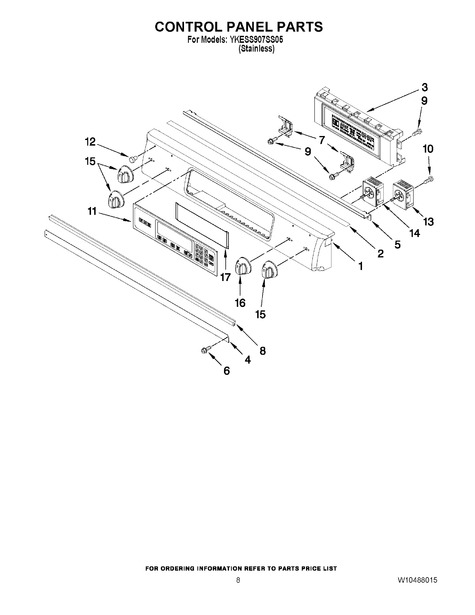

05 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10190662	Control Panel (stainless)	$172.70 Special Order
2	W10110246	Gasket, Console	$95.60 Special Order
3	WPW10181439	Control, Electric   (Replaces: W10181439)	$328.50 Special Order
4	W10105370	Shield, Console Vent	$64.00 Special Order
5	W10117524	Bracket, Console	$31.00 Special Order
6	W10491985	Screw (Replaces: 3196160)	$4.80  In-Stock Retail: $4.59
7	9761745	Bracket, Thermostat	$38.20 Special Order
8	W10116195	Gasket, Vent Shield	$57.90 Special Order
9	WP3196557	Screw	$4.80  In-Stock Retail: $4.59
10	W10061760	Screw	$4.60 Special Order
11	WP9761566	Membrane, Switch   (Replaces: 9761566)	$227.50  In-Stock Retail: $221.89
12	WP3196068	Lens, Indicator (Replaces: 3196068)	$3.50  In-Stock Retail: $3.34
13	WP9763762	Duel, Switch (lr,lf,rr) (Replaces: 9763762)	$213.00 Special Order
14	WP9763761	Single Switch Rf (Replaces: 9763761)	$218.10 Special Order
15	WPW10156260	Knob, Smart Duel Lr,lr,rr (stainless) (Replaces: W10156260)	$40.90 Special Order
16	WPW10156261	Knob, Smart Single Rf (stainless)	$27.30 Special Order
17	WPW10237644	Flex Connector	$92.70 Special Order
