GE JB870DT1BB Parts List

Popular Searches: (Click to search)    anti  appliance  asm  block  bracket  door  gasket  holder  lamp  leg  lens  leveler  oven  screw  sensor  terminal  tip


Select a Diagram

1 - Control Panel

2 - Cooktop

3 - Upper Oven

4 - Lower Oven

5 - Upper Door

6 - Lower Door

7 - Door Lock

8 - Convection Fan

Select Diagram ... 1 - Control Panel 2 - Cooktop 3 - Upper Oven 4 - Lower Oven 5 - Upper Door 6 - Lower Door 7 - Door Lock 8 - Convection Fan

4 - Lower Oven   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
131	WB01T10022	Frt Fr Door Bumper	$10.50 Special Order
212	WB39T10015	Base Dual Cavity	$80.00 Special Order
217	WB02T10575	Cover Wire Main	$133.10 Special Order
218	WB02T10564	Cover Terminal Block	$10.50 Special Order
219	WB02T10507	Mainback Asm	$132.20 Special Order
221	WB56X28881	Panel Side (bk)	$74.40 Special Order
	WB56X28884	Panel Side (wh)	$74.30 Special Order
223	WB35T10223	Insulation Back	$31.80 Special Order
231	WB35T10170	Insulation Wrapper Lwr	$71.90 Special Order
232	WB35X25122	Insulation Back	$29.70 Special Order
233	WB35X25122	Insulation Back	$29.70 Special Order
	WB35X25048	Insulation Back Rear	$22.10 Special Order
236	WB35T10180	Insulation Back	$47.60 Special Order
237	WB35X25077	Insulation Bottom	$33.90 Special Order
241	WB48T10076	Rack Oven	$67.50 Special Order
251	WB44T10082	Element Hidden Bake Asm	$120.20 Special Order
252	NLA ITEM	Shield Broil Asm	Call for Availability
253	WB21X22134	Sensor Asm (Replaces: WB21T10007)	$24.20  In-Stock Retail: $23.55
255	WB17T10011	Terminal Block Asm (Replaces: WB17T10012)	$60.40  In-Stock Retail: $58.87
257	WB08T10045	Lamp Halogen G9	$14.50 Special Order
258	WB25T10093	Lamp Halogen Asm	$53.70 Special Order
259	WB25T10013	Ov Lamp Lens Lwr	$8.50 Special Order
261	WB24T10160	Switch Spdt High Amp	$15.70 Special Order
262	WB07T10621	Trim Vertical Sides	$89.70 Special Order
263	WB02T10571	Cover Front	$47.80 Special Order
266	WB02T10353	Base Rail Rt	$38.90 Special Order
267	WB02T10352	Base Rail Lt	$29.80 Special Order
268	WB02T10415	Bracket Anti-tip Asm	$37.30 Special Order
269	WB02T10492	Bracket Strain Relief	$15.20 Special Order
270	WB27T11330	Board Relay Daughter Asm	$107.10 Special Order
272	WB02T10034	Side Support Panel	$10.50 Special Order
273	NLA ITEM	Cover	Call for Availability
277	WB10T10083	Receiver Hinge	Call for Availability
282	WB38X33648	Vent Tube Asm	$17.20 Special Order
285	WB38T10034	Tube Vnt Asm Lwr	$70.90 Special Order
289	WB49T10071	Pan Reflector	$80.50 Special Order
291	WB02T10487	Cover Hole	$9.30 Special Order
296	WB02X10521	Leg Leveler	$17.10 Special Order
408	WB02T10477	Pcb Standoff	$12.00 Special Order
534	WB26T10015	Support Ovn Cav	$21.80 Special Order
555	WB18T10352	Relay	$67.70 Special Order
699	WB1M1	Screw St10-16 X 7/16"	$10.10  In-Stock Retail: $9.83
760	WB1X536	Screw	$12.00  In-Stock Retail: $11.66
761	WB1X1137	Screw	$10.50 Special Order
806	WH2X1186	Scr 8-18 Ab Ihw 5/8 S	$10.50 Special Order
809	WZ4X245D	Scr 8-18 Ab Hw 9/16 Blk	$25.30 Special Order
810	WB1X1130	Screw	$10.50 Special Order
875	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
887	WH2X941D	Scr 8-15 A Hxw 7/8 S	$27.60 Special Order
935	WB1K5174	Washer	$10.50 Special Order

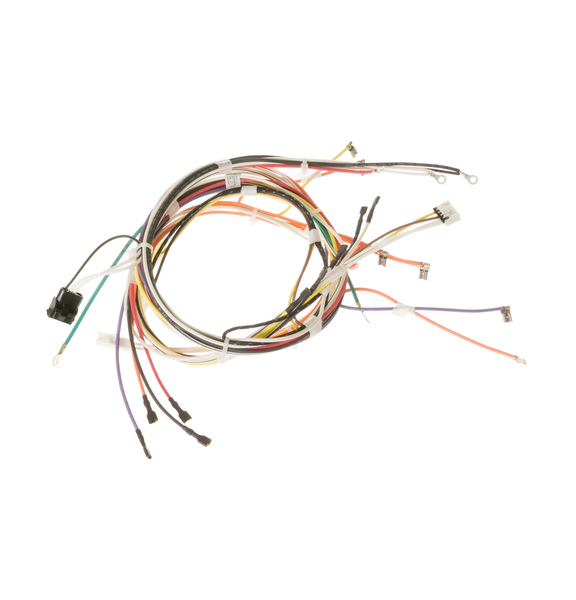

996	WB18T10569	Harness Wire Infinite	$68.20 Special Order
1005	WB01T10008	Scr 10-32 Tr T	$10.50 Special Order
