Maytag MIM1554XRS1 Parts List

Popular Searches: (Click to search)    16``  access  affresh  assembly  black  board  complete  control  drier  grid  paint  pump  service  stainless  steel  touch  valve  water  white  wipes


Select a Diagram

01 - Cabinet Liner And Door Parts

02 - Evaporator, Ice Cutter Grid And Water Parts

03 - Pump Parts

04 - Control Panel Parts

05 - Unit Parts

06 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Liner And Door Parts 02 - Evaporator, Ice Cutter Grid And Water Parts 03 - Pump Parts 04 - Control Panel Parts 05 - Unit Parts 06 - Optional Parts (not Included)

04 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10340993	Box, Control	$70.30 Special Order
2	WP2310139	Transformer (Replaces: 2310139)	$207.80 Special Order

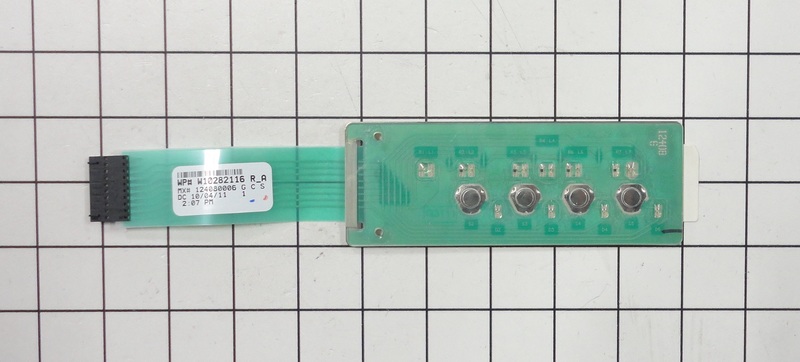

3	WPW10282116	Assembly, Switch (also Order No.4) (Replaces: W10282116)	$122.60  In-Stock Retail: $119.58
4	W10282113	Overlay	$36.20 Special Order
5	WPW10226156	Control Board	$265.60  In-Stock Retail: $259.08
6	WP2149705	Switch, Plunger (also Order No. 4)   (Replaces: 2149705)	$28.70  In-Stock Retail: $27.92
7	2187585	Wire Assy. Active Overlay Jumper	$42.90 Special Order
9	745362	Bulb	$4.40 Special Order
12	WPW10503764	Thermostat, Bin (Replaces: WP2313633 2313633)	$83.20  In-Stock Retail: $81.14
13	2185825	Clamp	$54.30 Special Order
15	WP3400884	Screw	$4.80 Special Order
18	WP489443	Screw 8-16 X 3/8	$4.80 Special Order
20	WP2313635	Thermister, Ice Control	$64.50  In-Stock Retail: $62.88
