Whirlpool AL6245VL0 Parts List

Popular Searches: (Click to search)    agitator  basket  cam  center  clutch  dog  drive  gasket  hose  mixing  paint  post  pressurized  pump  spray  spring  tub  valve  water  white


Select a Diagram

02 - Top And Cabinet , Literature And Optional

03 - Controls And Rear Panel

04 - Agitator, Basket And Tub

05 - Miscellaneous

06 - Brake, Clutch, Gearcase, Motor And Pump

07 - Machine Base

08 - Wiring Harness

09 - Brake And Drive Tube

10 - Gearcase

11 - Water System

Select Diagram ... 02 - Top And Cabinet , Literature And Optional 03 - Controls And Rear Panel 04 - Agitator, Basket And Tub 05 - Miscellaneous 06 - Brake, Clutch, Gearcase, Motor And Pump 07 - Machine Base 08 - Wiring Harness 09 - Brake And Drive Tube 10 - Gearcase 11 - Water System

03 - Controls And Rear Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	16123D	Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123)	Call for Availability
2	63162	Pin, Cabinet Guide (2)	Call for Availability
3	WP89503	Hose, Water Inlet (2)	$7.80  In-Stock Retail: $11.98
4	WP681414	Screw, 10-16 X 1/2	$4.80 Special Order
5	WP387402	Hinge, Console (2) (Replaces: 387402)	Call for Availability
6	285931	Panel, Rear	$113.10 Special Order
7	WP62747	Pad, Rear Panel	$15.30 Special Order
8	285666	Hose, Corrugated Plastic Drain (10 Ft.) (not Included) (Replaces: 388418)	$56.40 Special Order
	285664	Hose, Corrugated Plastic Drain (5-1/2 Ft.)	$31.80  In-Stock Retail: $30.98

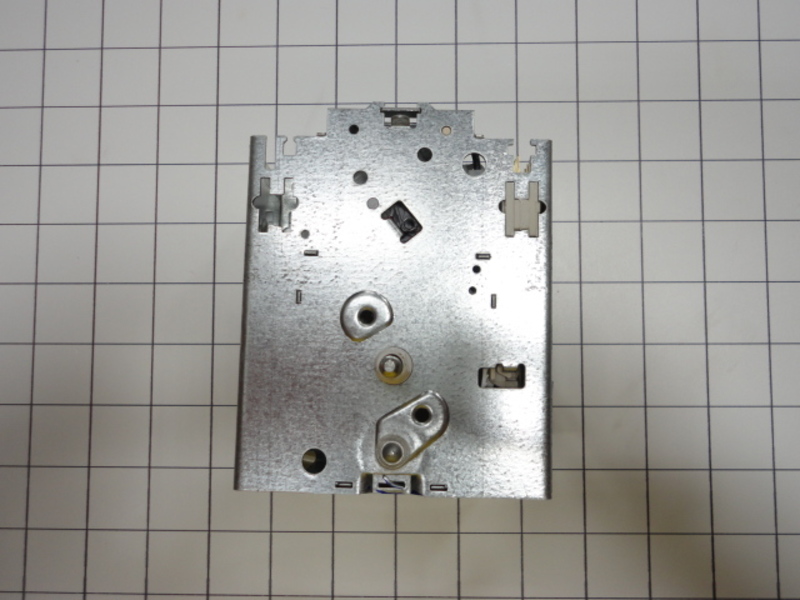

9	WP3351744	Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 3351744)	$218.60  In-Stock Retail: $213.25
11	355326	Screw	Call for Availability
12	64103	Switch, Water Level	$83.30 Special Order
13	3349232	Bracket, Control	Call for Availability
14	285800	Cord, Power	$89.90 Special Order
15	W11733005	Strain Relief, Power Cord	$8.00 Special Order
16	3352243	Cap, End (l.h.)	Call for Availability
17	WP96160	Screen, Filter (2)	$7.00 Special Order
18	285805	Valve, Water Mixing (Replaces: 358992)	$33.70  In-Stock Retail: $33.64
19	WP3351614	Screw, 10-24 X 3/8 (2)	$4.80 Special Order
20	WP3390631	Screw, Ground (10-16 X 3/8)	$4.80 Special Order
21	WP596669	Clamp, Hose	$4.80 Special Order
22	WP3357328	Hose, Vacuum Break (Replaces: 62662)	$13.30  In-Stock Retail: $12.96
23	WP596669	Clamp, Hose	$4.80 Special Order
24	WP3347034	Break, Vacuum (Replaces: 3347034)	$54.00 Special Order
25	WP8519200	Support, Rear Panel	$11.70 Special Order
26	WPW10358149	Connector, Drain Hose (Replaces: 3349018)	$19.10  In-Stock Retail: $18.58
27	WP356138	Clamp, Hose (Replaces: 356138)	$4.80 Special Order
28	WP3348552	Hose, Pump To Drain Connector   (Replaces: 3348552)	$46.40  In-Stock Retail: $45.24
30	WP371502	Clamp, Hose	$7.00 Special Order
31	WP285655	Clamp, Hose	$4.80  In-Stock Retail: $4.59
32	285871	Hose, Pump To Tub (Replaces: 3951449 62731)	$14.40  In-Stock Retail: $14.03
33	357030	Clamp, Capacitor	$13.70 Special Order
34	WP8572717	Capacitor, Motor Start (mfd 189, 110 Volts) (Replaces: 661606 357021)	$75.40  In-Stock Retail: $73.56
35	3347122	Switch, Water Temperature	Call for Availability
36	WP356418	Screw, Timer Mounting (10-32 X 1) (2)	$4.80 Special Order
37	386636	Knob, Water Level	$43.30 Special Order
39	3352223	Panel, Console	Call for Availability
40	WP689559	Nut, Push-in (2)	$4.80 Special Order
44	280193	Knob, Timer (Replaces: 3352173)	$37.20 Special Order
45	3388184	Dial, Timer	Call for Availability
47	3935959	Knob, Water Temperature	$23.90 Special Order
48	WP356138	Clamp, Hose (Replaces: 356138)	$4.80 Special Order
49	WP388326	Screw, 8-18 (2) (panel To Top)	$4.80  In-Stock Retail: $4.59
50	WP3390631	Screw, 10-16 X 3/8	$4.80 Special Order
51	3352238	Cap, End (r.h.)	Call for Availability
52	WP3390631	Screw,10-16x5/16 (Replaces: 9420601)	$4.80 Special Order
54	364089	Wire, Ground	Call for Availability
55	WP308685	Screw, Hinge Mounting (10-16 X 1/2)	$4.80  In-Stock Retail: $4.59
56	3350222	Retainer, Wire	Call for Availability
57	WP616099	Clamp, Hose	$4.40 Special Order
58	WP384496	Coupling, Hose (Replaces: 384496)	$53.30 Special Order
