Whirlpool KERS505XBL02 Parts List

Popular Searches: (Click to search)    12oz  2oz  accessory  badge  black  blade  cleaner  cooktop  fan  paint  parts  polish  pressurized  right  screw  spray  stainless  switch  touch  white


Select a Diagram

02 - Cooktop Parts

03 - Control Panel Parts

04 - Chassis Parts

05 - Internal Oven Parts

06 - Upper Door Parts

07 - Lower Door Parts

08 - Optional Parts (not Included)

01 - Cover Sheet

Select Diagram ... 02 - Cooktop Parts 03 - Control Panel Parts 04 - Chassis Parts 05 - Internal Oven Parts 06 - Upper Door Parts 07 - Lower Door Parts 08 - Optional Parts (not Included) 01 - Cover Sheet

03 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10319109	Support, Backguard (black (left Hand))	$57.40 Special Order
	W10319111	Support, Backguard (black (right Hand))	$41.50 Special Order
	W10319110	Support, Backguard (white (left Hand))	$57.40 Special Order
	W10319112	Support, Backguard (white (right Hand))	$58.00 Special Order
2	WP3196068	Lens, Indicator (Replaces: 3196068)	$3.50  In-Stock Retail: $3.34
3	WPW10295099	Console (black)	$212.50 Special Order
	W10295098	Console (white)	$174.60 Special Order
	WPW10295100	Console (stainless)	$213.10 Special Order
4	WP98008545	Screw (black)	$11.60  In-Stock Retail: $11.31
5	WPW10365419	Control, Electronic	Call for Availability
6	WP74004153	Light, Indicator	$4.80 Special Order
7	W10377035	Knob (black)	$14.20 Special Order
	W10377036	Knob (white)	$25.50 Special Order
	W10377034	Knob (stainless)	$28.90 Special Order
8	WP74003976	Screw	$4.80 Special Order
9	WPW10299338	Shield, Wire Cover	$58.70 Special Order
10	WPW10441696	Switch, Infinite (right Front) (Replaces: W10441696)	$103.30 Special Order

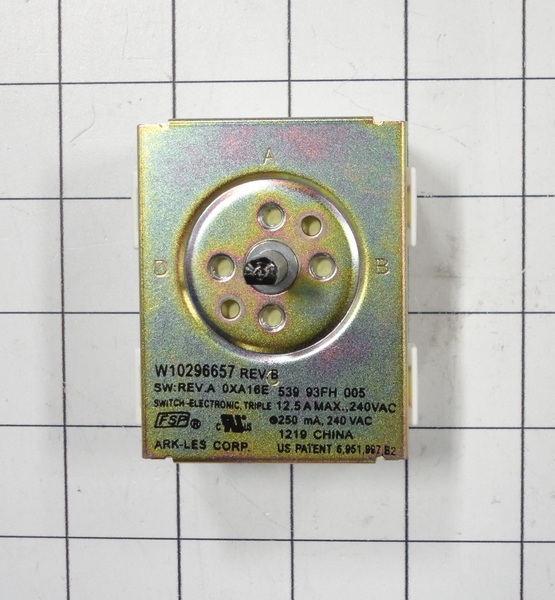

	WPW10296657	Switch, Infinite (left Front) (Replaces: W10296657)	$209.30 Special Order
	WPW10295048	Switch, Infinite (right Rear)	$102.70 Special Order
	WP7403P238-60	Switch, Infinite (left Rear)	$40.00  In-Stock Retail: $56.27
11	W10295108	Panel Assembly, Control Includes Lens And Membrane Switch (black)	$175.70 Special Order
12	W10296773	Cover, Backguard	$122.40 Special Order
13	WPW10292689	Cover, Wire Filler	$59.00 Special Order
14	W10278697	Shield, Vent	$114.10 Special Order
15	W10280451	Bracket, Glass Console	$57.60 Special Order
16	WPW10318787	Connector, Flex	$79.70 Special Order
