Maytag JDB8700AWP0 Parts List

Popular Searches: (Click to search)    2oz  also  assembly  bracket  cable  door  drain  fill  hose  includes  latch  paint  pressurized  pump  spray  switch  touch  undercounter  valve  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump, Washarm And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Third Level Rack And Track Parts

12 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump, Washarm And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Third Level Rack And Track Parts 12 - Optional Parts (not Included)

01 - Door And Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10460138	Energy Guide	Call for Availability
	W10418360	Use & Care Guide	Call for Availability
	W10321874	Tech Sheet/english	Call for Availability
	W10321875	Tech Sheet/french	Call for Availability
	W10418362	Installation, Instructions	Call for Availability
2	W11612303	Arm, Hinge (right)	$104.00  In-Stock Retail: $101.45
	W11612302	Arm, Hinge (left)	$104.00  In-Stock Retail: $101.45
3	W10850371	Vapor Barrier Assembly	$20.50 Special Order
4	W10826179	Screw	$4.80  In-Stock Retail: $4.59
5	W10909064	Access Panel   (Replaces: WPW10195777 W10195777)	$93.10  In-Stock Retail: $90.76

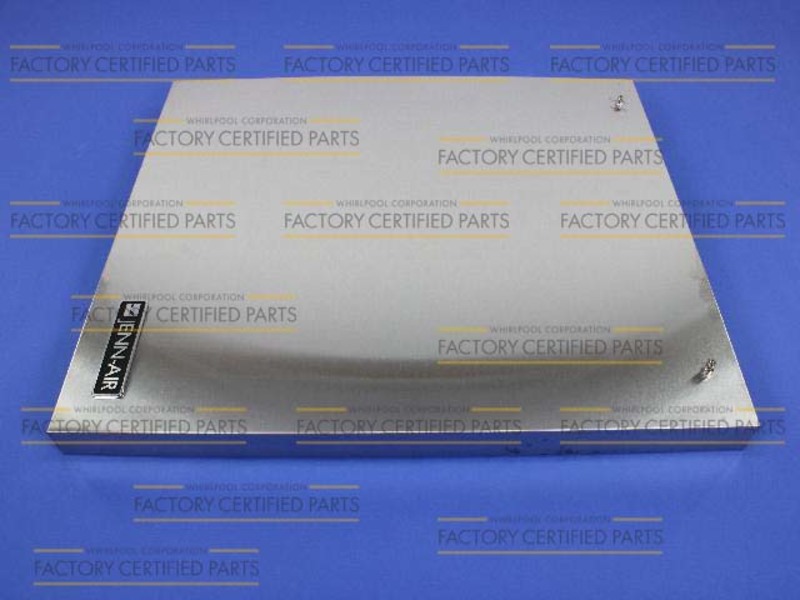

6	WPW10409492	Panel, Full Front (includes Items 10 & 16)	$209.10 Special Order
7	W10276608	Set Screw	$29.70 Special Order
8	WP302868	Screw   (Replaces: 302868)	$4.80  In-Stock Retail: $4.59
9	WPW10409518	Handle Assembly	$185.20 Special Order
10	WP8564951	Stud, Mounting   (Replaces: 8564951)	$12.50 Special Order
11	W10831329	Insulation, Access Panel	$25.20 Special Order
12	W10831329	Insulation, Toe Panel	$25.20 Special Order
13	W11126003	Insulation, Front Panel	$38.50 Special Order
14	W11116870	Bracket, Panel Control   (Replaces: W10194911)	$51.90 Special Order
15	WP3400071	Screw	$4.80 Special Order
16	W11636815	Nameplate	$27.00 Special Order
17	WP8269016	Ground Clip	$6.50 Special Order
18	W10871196	Toe Panel	$99.60  In-Stock Retail: $97.11
